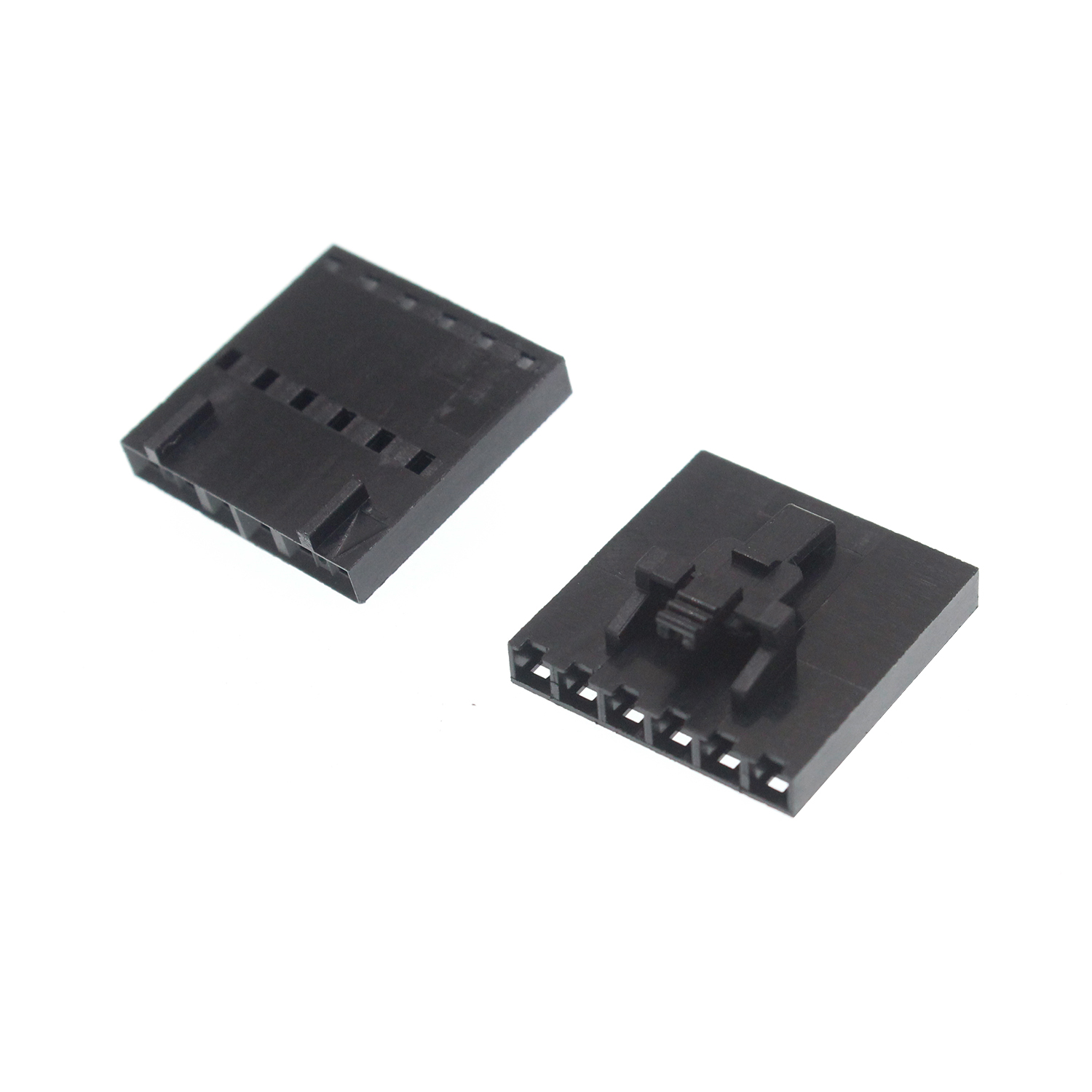

A2545-H06 is a 2.54 mm single-row wire-to-board housing for a six-circuit harness interface. The housing uses PBT UL94V-0 and is specified for operation from –25 °C to 85 °C.
| Centerline | 2.54 mm |
|---|---|
| Positions | 6 |
| Rows | Single row |
| Housing material | PBT UL94V-0 |
| Operating temperature | -25 °C to 85 °C |
| UL file | E364711 |
| Maximum current per contact | 3 A |
| Maximum voltage | 250 VAC/DC |
Match the housing with the compatible terminal and board-side component, then confirm the drawing dimensions and operating requirements before assembly.
