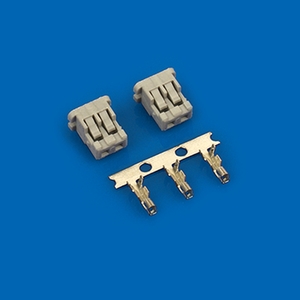

A2544 2.54 mm wire-to-board components provide a compact two-circuit housing and matching crimp terminal for harness connection. Use the applicable component drawing to select the contact, wire range and electrical rating.
| Centerline | 2.54 mm |
|---|---|
| Positions | 2 |
| Rows | Single row |
| Housing material | Nylon 66 UL94V-0 |
| Terminal material | Phosphor bronze |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Maximum current per contact | 1 A / 3 A (model-dependent options) |
| Maximum voltage | 250 VAC/DC |
| Suitable wire range | 28–22 AWG |
| Contact plating | Tin Plating |
Match the two-circuit housing and terminal, then verify the component-specific current and voltage values and the mating dimensions before assembly.
