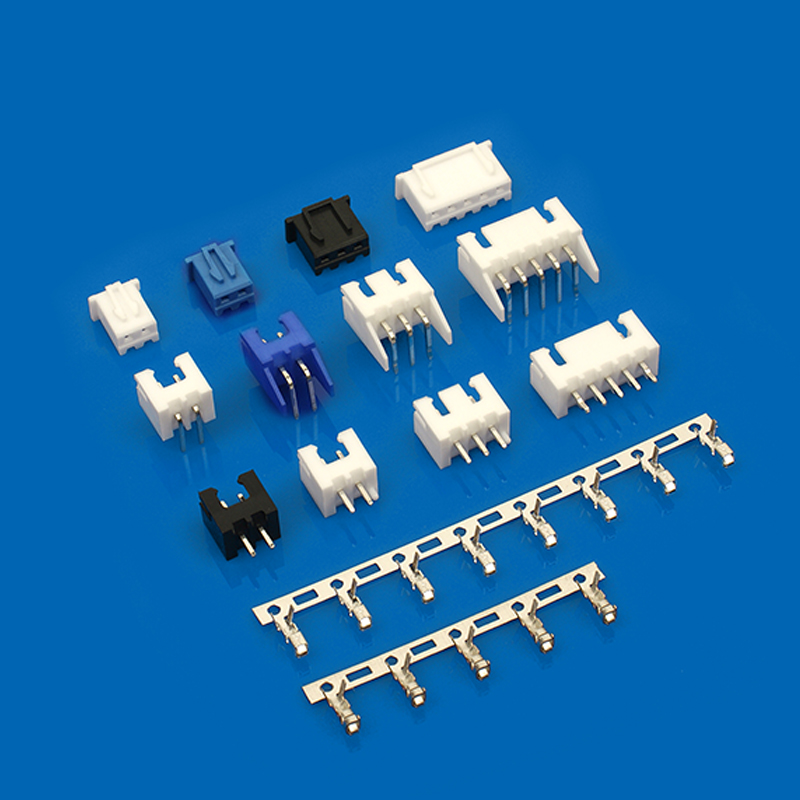

A2509 2.5 mm wire-to-board headers provide a right-angle board interface for seven-circuit single-row connections. The models are specified for 3 A per contact and 250 VAC/DC maximum voltage over -25 °C to 105 °C.
| Centerline | 2.5 mm |
|---|---|
| Positions | 7 |
| Rows | Single row |
| Mounting form | Right angle |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Contact metal | Brass |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Confirm the right-angle orientation, circuit count and mating housing against the drawing before setting the PCB footprint.
