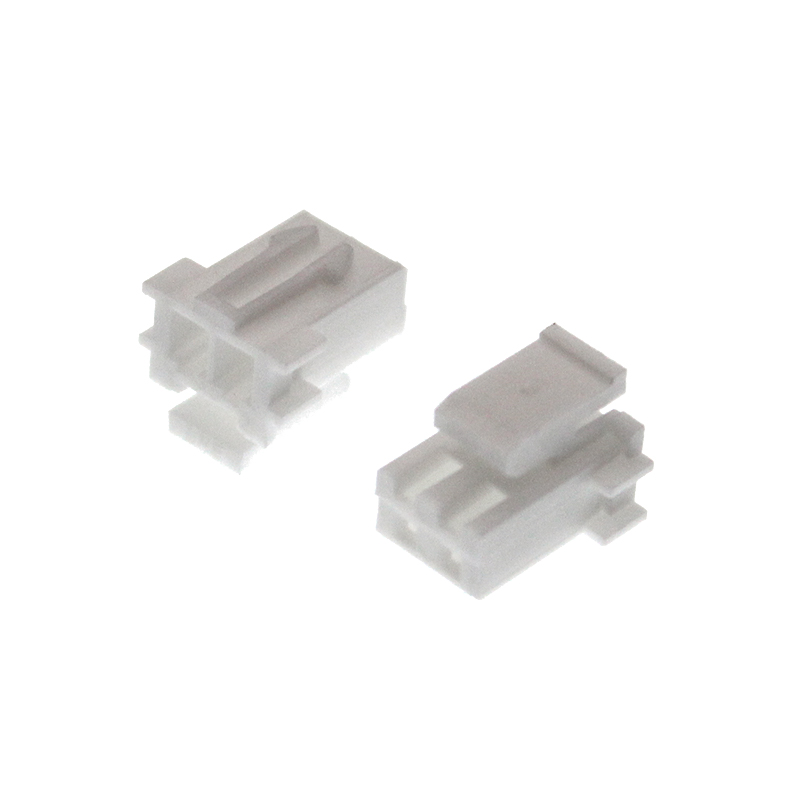

A2507 2.5 mm wire-to-board connectors provide an extensive set of single-row housing and header configurations for compact board assemblies. The available formats cover 2–15 circuits, with vertical and right-angle mounting choices, 3 A per-contact current and 250 VAC/DC maximum voltage.
| Component | Selection guidance |
|---|---|
| H housings | Nylon 66 single-row housings matched to the circuit count |
| Board headers | Vertical, right-angle and keyed board interfaces by model |
| Centerline | 2.5 mm |
|---|---|
| Positions | 2–15 |
| Rows | Single row |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Contact metal | Brass |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Select the circuit count and housing, then choose the board header direction, keying and footprint shown for the model. Confirm all mating dimensions on the drawing.
