A2506 2.5 mm wire-to-board connectors combine single-row housings, board headers and a crimp terminal for harness-to-board assemblies. The available formats cover 2–15 circuits and 28–22 AWG wire, while electrical values should be taken from the drawing for the selected component.
| Component | Selection point |
|---|---|

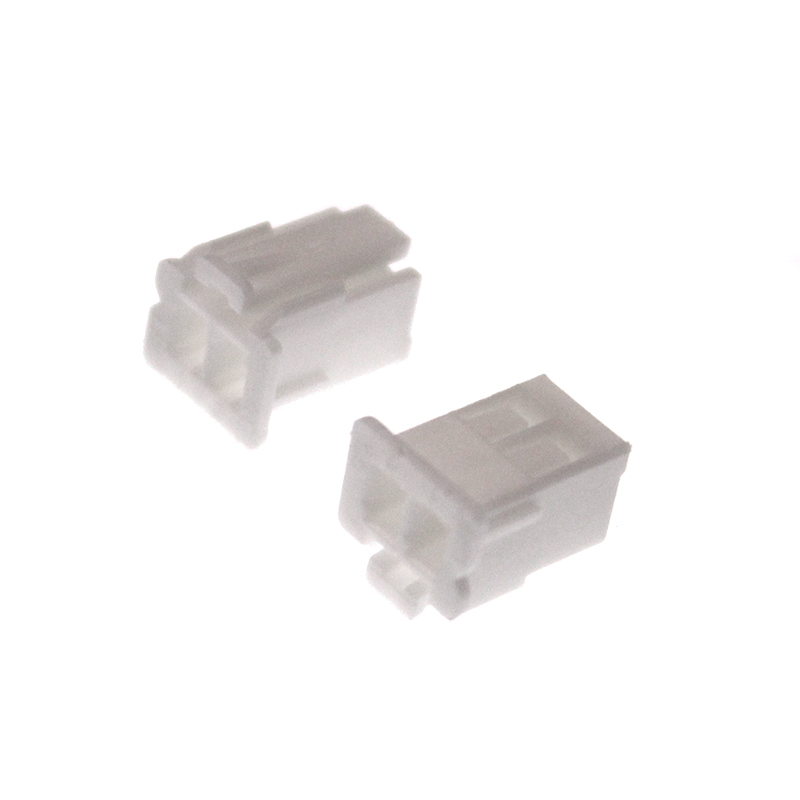

| H housings | Nylon 66 single-row housings for the required circuit count |

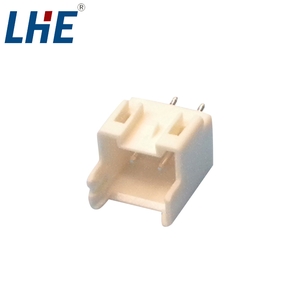

| Board headers | Vertical or right-angle brass-contact interfaces by model |
| Crimp terminal | Phosphor bronze contact for 28–22 AWG wire |
| Centerline | 2.5 mm |
|---|---|
| Positions | 2–15 |
| Rows | Single row |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Maximum current per contact | 1 A / 3 A (model-dependent options) |
| Maximum voltage | 250 VAC/DC |
| Contact plating | Tin Plating |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Match the housing, header and terminal by circuit count and wire size. Confirm current and voltage on the applicable component drawing before specifying the final assembly.
