A2505 2.5 mm wire-to-board connectors provide single-row mating parts for compact harness-to-board assemblies. Housings, headers and crimp terminals cover 2–15 circuits and 28–22 AWG wire, with model-dependent contact ratings.
| Component | Selection guidance |
|---|---|

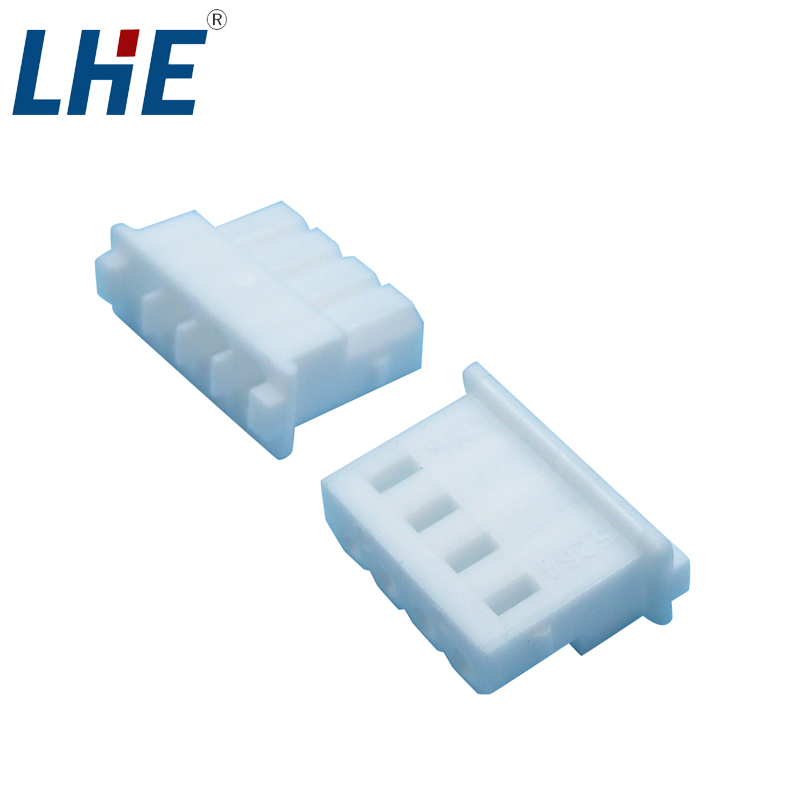

| H housings | Nylon 66 single-row housings for the selected circuit count |

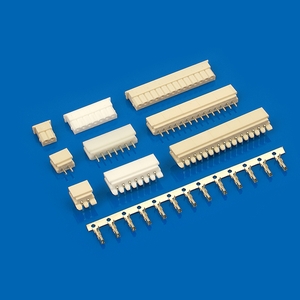

| Board headers | Vertical or right-angle interfaces matched to the PCB |

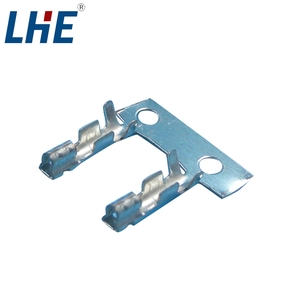

| Crimp terminal | Phosphor bronze contact for 28–22 AWG wire |
| Centerline | 2.5 mm |
|---|---|
| Positions | 2–15 |
| Maximum current per contact | 3 A / 13 A (model-dependent options) |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Choose the housing and header with the same circuit count, then select the terminal for 28–22 AWG conductors. Verify the current rating for the selected component and the final mating dimensions on the applicable drawing.
