A2504 2.5 mm wire-to-board connectors combine single-row housings, board headers and a crimp terminal for compact harness assemblies. The family covers 2–15 circuits and 26–20 AWG wire; current and voltage should be selected from the applicable component drawing rather than treated as one universal value.
| Component | Selection point |
|---|---|

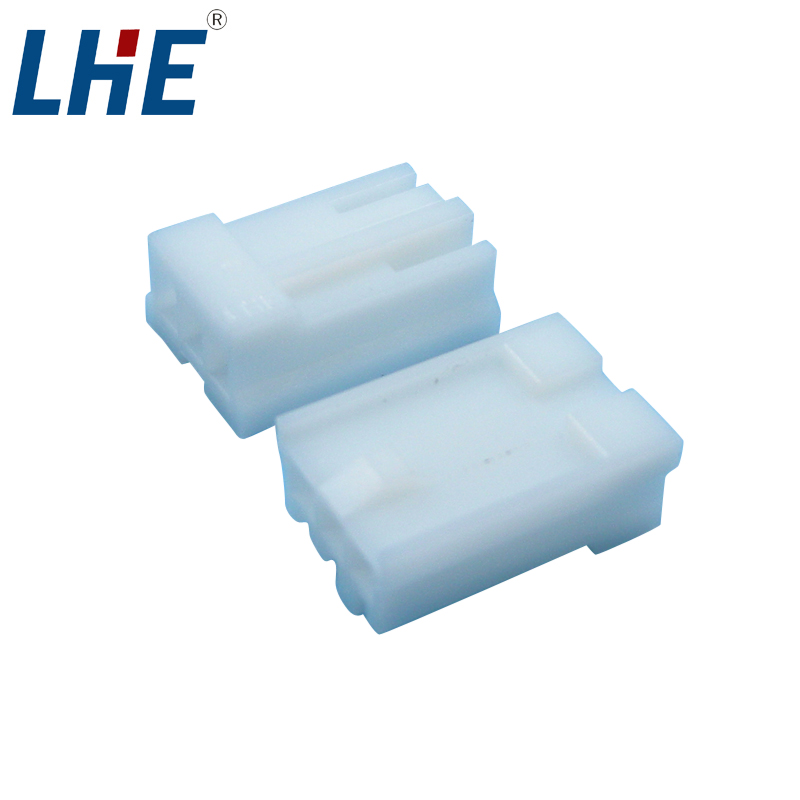

| H housings | Single-row Nylon 66 housings for the selected circuit count |

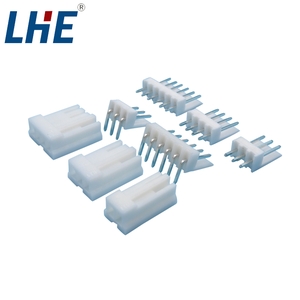

| Board headers | Vertical or right-angle brass-contact formats by model |

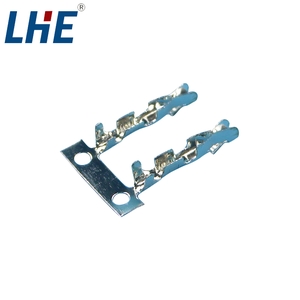

| Crimp terminal | Phosphor bronze contact for 26–20 AWG wire |
| Centerline | 2.5 mm |
|---|---|
| Positions | 2–15 |
| Rows | Single row |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Maximum current per contact | 1 A / 3 A (model-dependent options) |
| Maximum voltage | 250 VAC/DC |
| Contact plating | Tin Plating |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Match the housing, header and terminal by circuit count and wire size. Before release, confirm the current and voltage rating for the selected component on its drawing.
