A2502 2.5 mm wire-to-board connectors provide single-row housings and matching PCB headers for compact harness-to-board interfaces. The family covers 2–15 circuits with 3 A per-contact current and 250 VAC/DC maximum voltage, while header direction and package style vary by model.
| Component | Selection point |
|---|---|

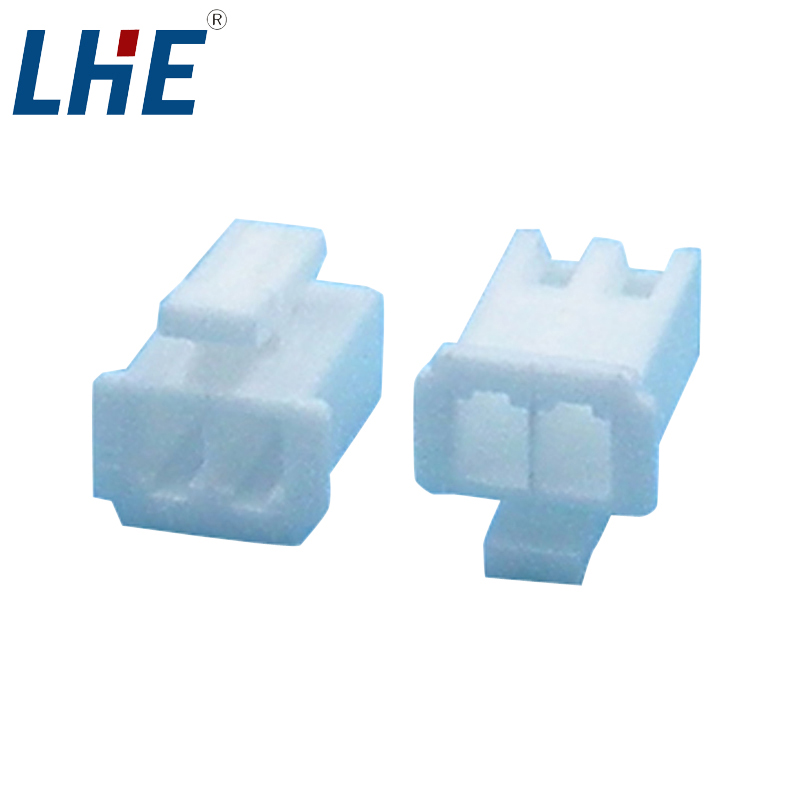

| H housings | Nylon 66 single-row housings for the selected circuit count |

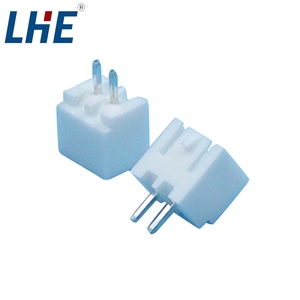

| Board headers | Vertical or right-angle brass-contact formats by model |
| Centerline | 2.5 mm |
|---|---|
| Positions | 2–15 |
| Rows | Single row |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Select the circuit count and housing, then choose the board header orientation and footprint. Verify the mating dimensions on the applicable drawing before assembly.
