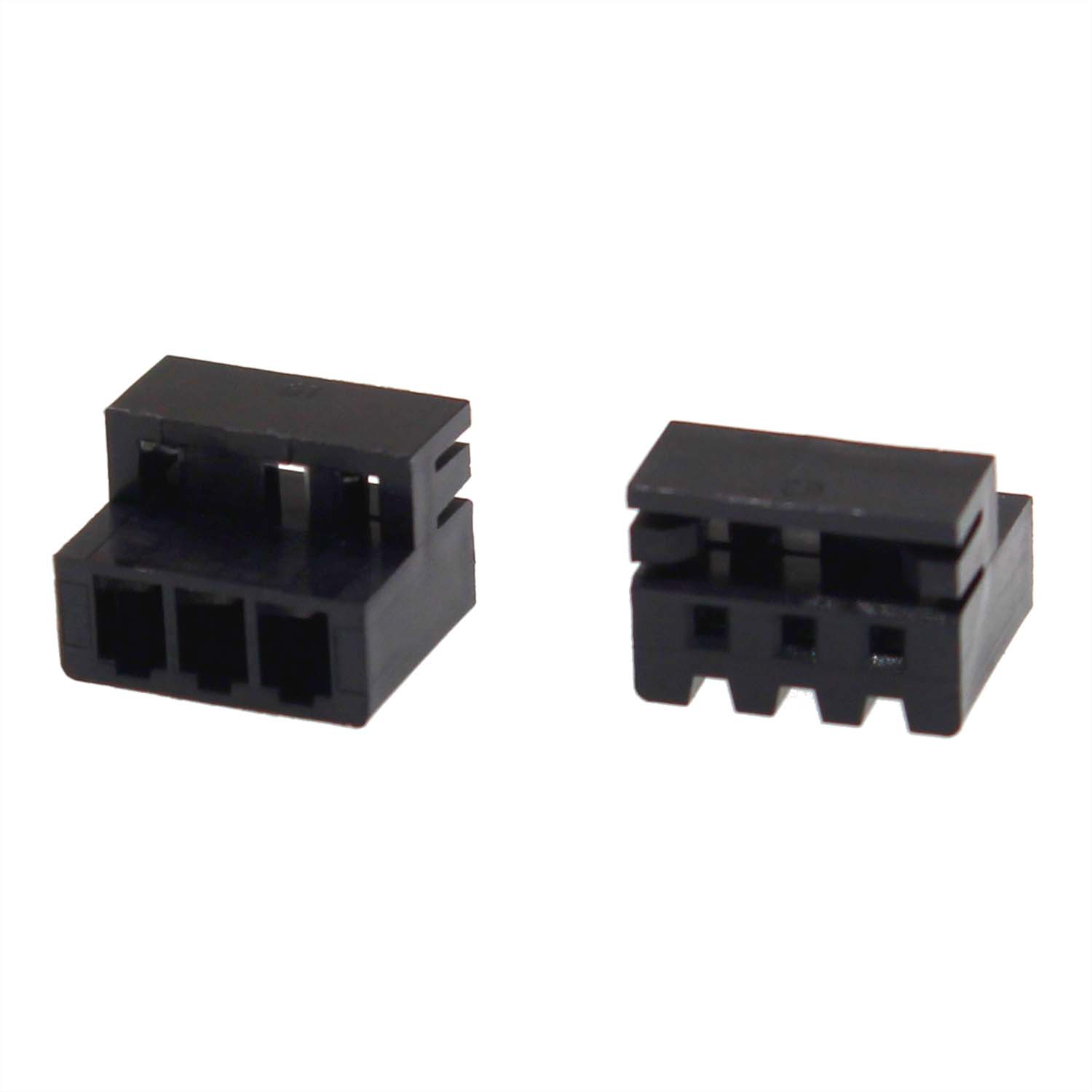

A25013-H03 is a 2.5 mm single-row wire-to-board housing for a three-circuit harness interface. The housing is identified as Nylon 66 UL94V-0 and is intended to be matched with the compatible contacts and board-side component.
| Centerline | 2.5 mm |
|---|---|
| Positions | 3 |
| Rows | Single row |
| Housing material | Nylon 66 UL94V-0 |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Maximum current per contact | Not specified |
Confirm the matching terminal, board interface and mechanical dimensions on the drawing before using the housing in a harness assembly.
