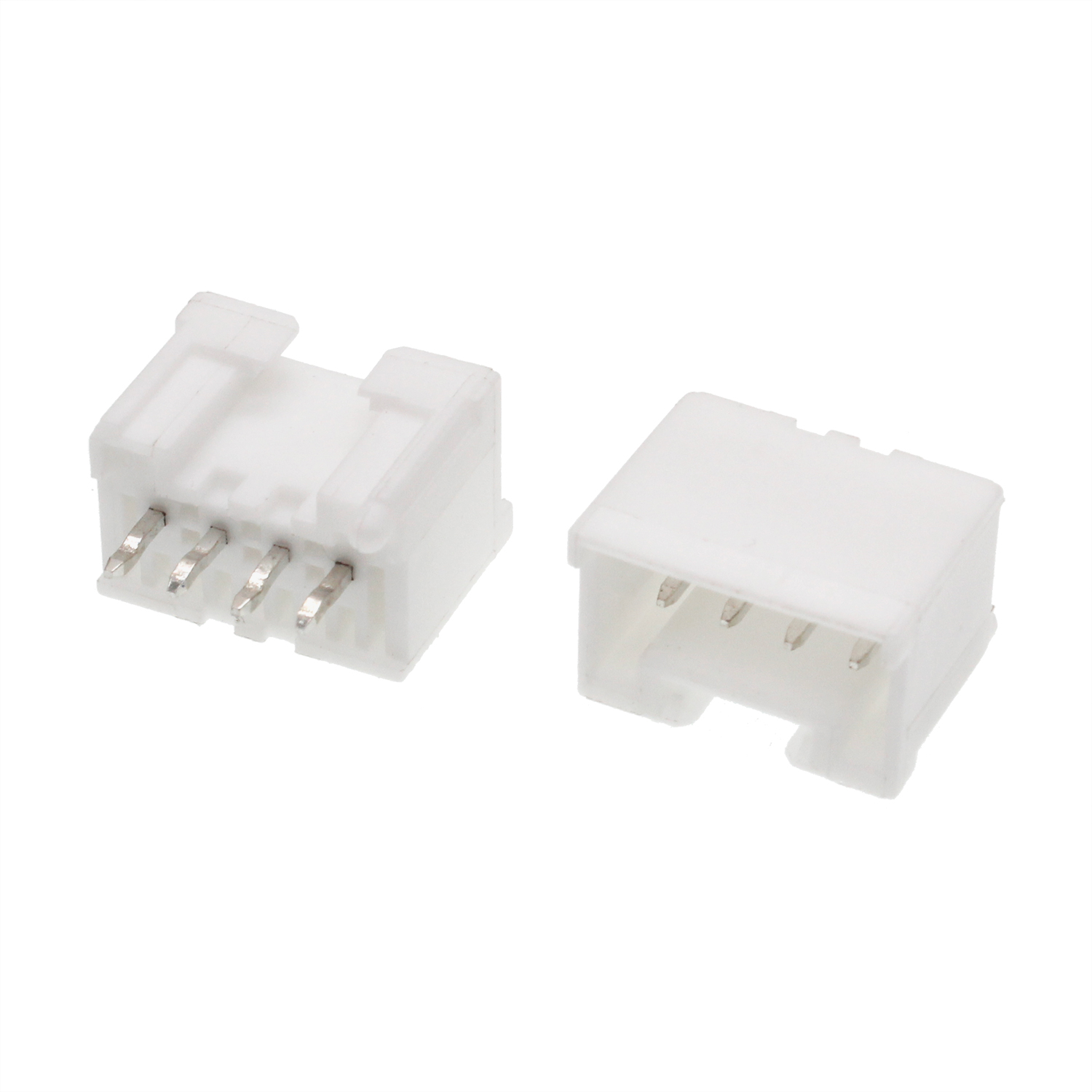

A25012 2.5 mm wire-to-board header provides a compact four-circuit interface for board connection. The product details identify Nylon 66 insulation and brass contacts, with a 3 A per-contact rating and 250 VAC/DC maximum voltage.
| Centerline | 2.5 mm |
|---|---|
| Positions | 4 |
| Rows | Single row |
| Insulation | Nylon 66 UL94V-0 |
| Contact material | Brass |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
Check the header orientation, mounting dimensions and mating housing on the drawing before fixing the PCB footprint.
