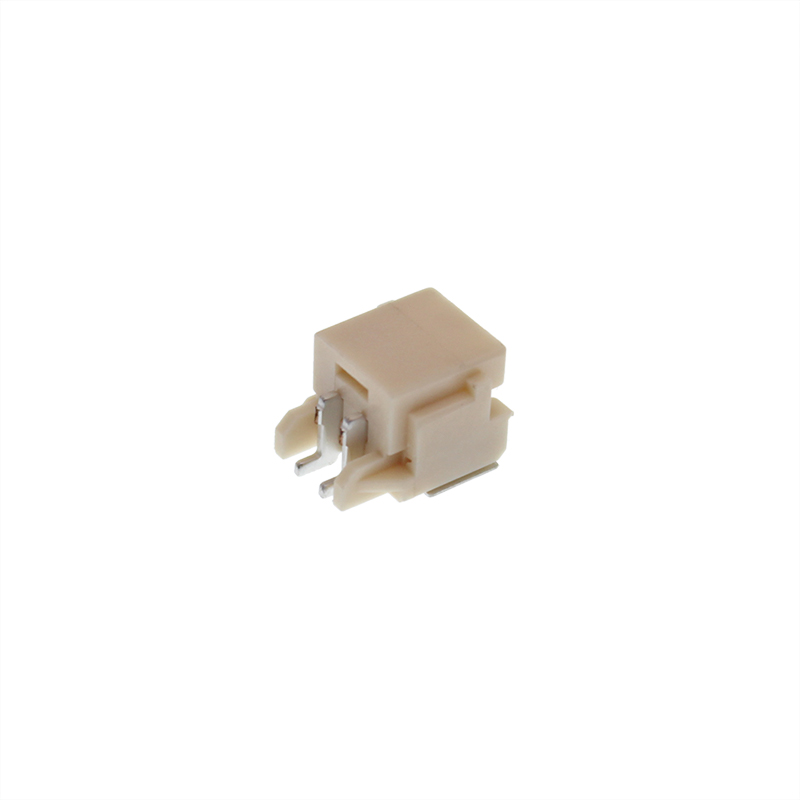

A2009 2.0 mm Surface-Mount Wire-to-Board Headers

A2009 2.0 mm wire-to-board headers provide single-row surface-mount board interfaces for compact PCB assemblies. The formats cover 2–15 circuits and are specified for 3 A per contact and 250 VAC/DC maximum voltage across a –40 °C to 105 °C operating range.

Surface-Mount Header Data

Set the PCB Interface

Select the header by circuit count and board footprint, then confirm the mounting dimensions and mating housing on the applicable drawing.
