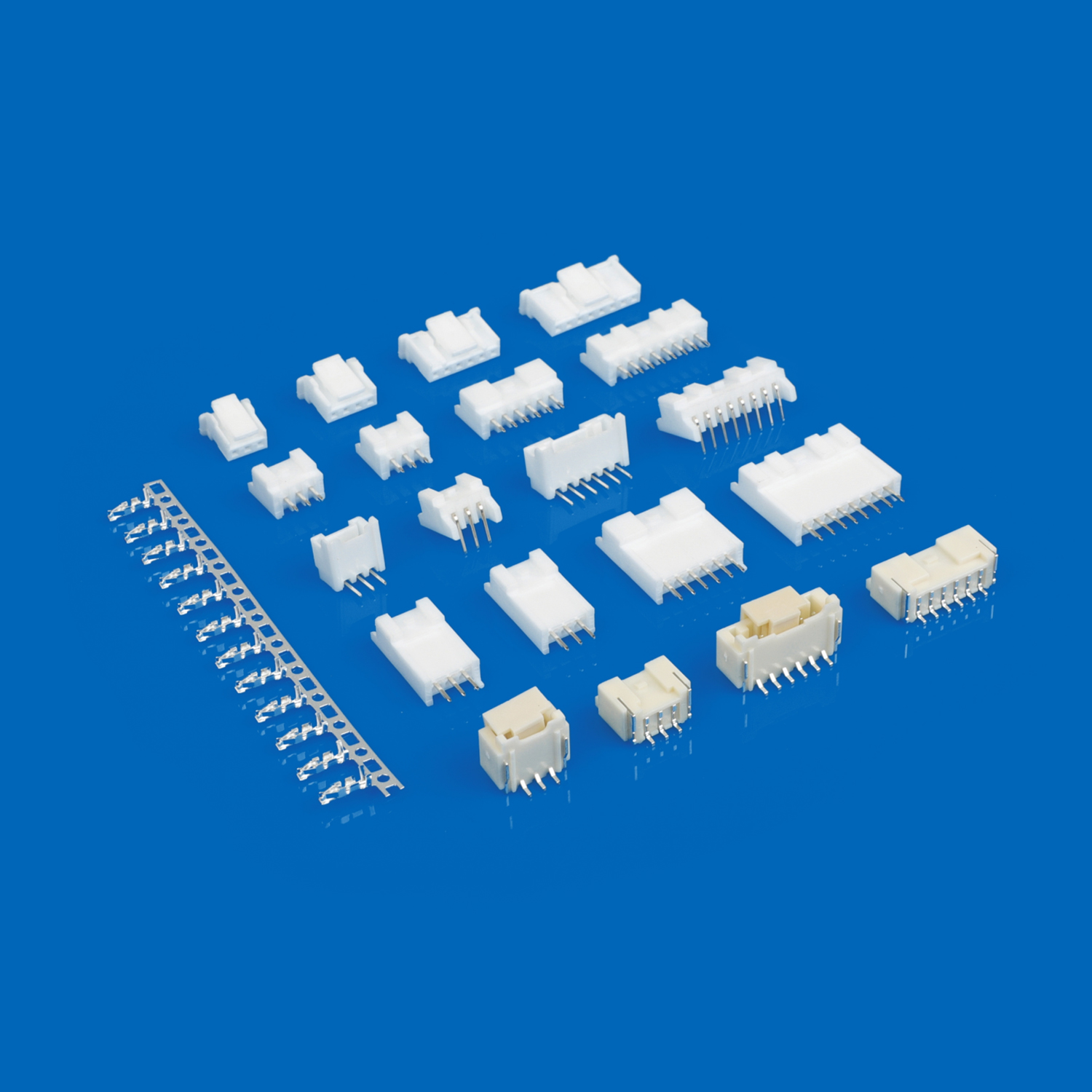

A2007 2.0 mm wire-to-board connectors provide single-row housings and matching board headers for compact harness interfaces. The family covers 2–15 circuits and 3 A per-contact current at 250 VAC/DC maximum voltage, with header geometry chosen by the PCB layout.
| Product role | Selection point |
|---|---|
| H housings | Single-row Nylon 66 housings for the selected circuit count |

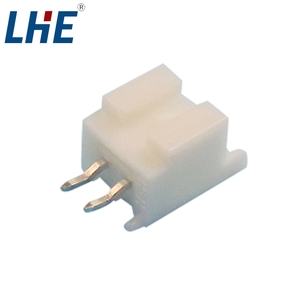

| Board headers | Vertical or right-angle brass-contact interfaces by model |
| Centerline | 2.0 mm |
|---|---|
| Positions | 2–15 |
| Rows | Single row |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Choose the circuit count and mating housing, then select the header orientation and footprint that suit the board. Check the model drawing for the final mechanical interface.
