A2006 2.0 mm wire-to-board connectors use double-row mating formats where a denser circuit arrangement is required. Housings, headers and the crimp terminal cover 4–30 circuits, with 3 A per-contact current and 250 VAC/DC maximum voltage.
| Component | Role in the assembly |
|---|---|

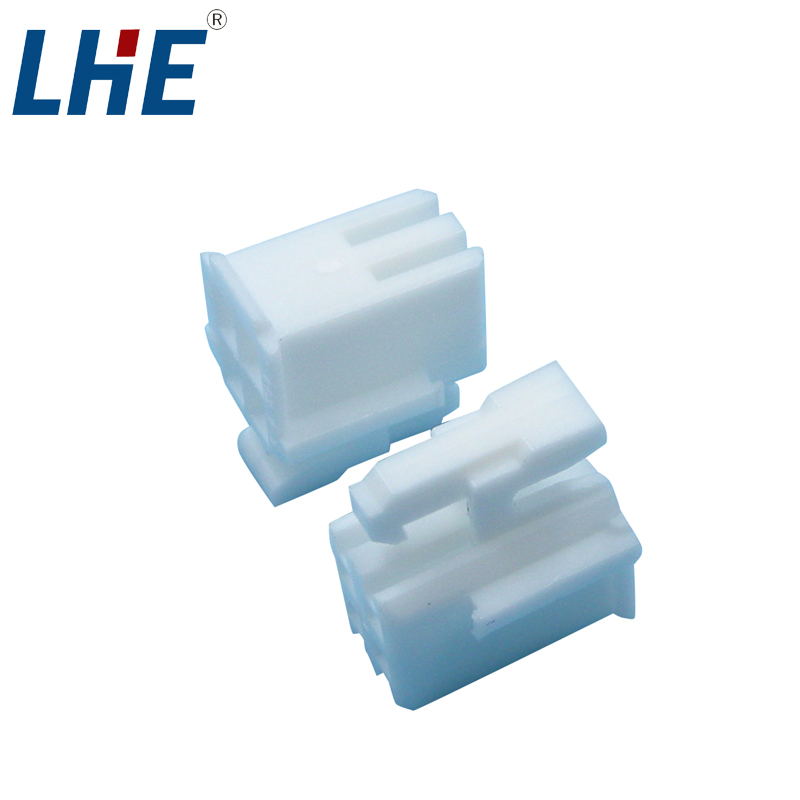

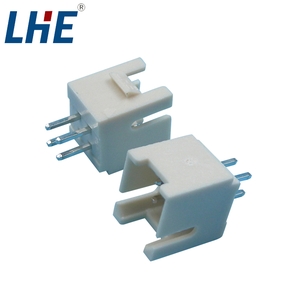

| H housings | Nylon 66 double-row housings for the required circuit count |
| Board headers | Vertical or right-angle board interfaces by model |

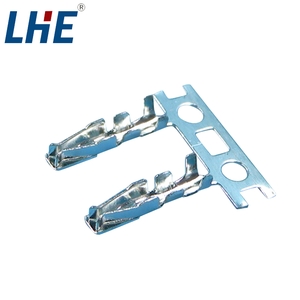

| Crimp terminal | Phosphor bronze contact for 28–24 AWG wire |
| Centerline | 2.0 mm |
|---|---|
| Positions | 4–30 |
| Rows | Double row |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Choose the row arrangement and circuit count first, then match the header orientation and housing. Select the terminal for 28–24 AWG conductors and verify the mating dimensions on the relevant drawing.
