A2005 2.0 mm wire-to-board connectors provide single-row mating parts for compact harness-to-board assemblies. The family covers 2–15 circuits with vertical and right-angle header formats, 3 A per-contact current and 250 VAC/DC maximum voltage.
| Component | Selection guidance |
|---|---|

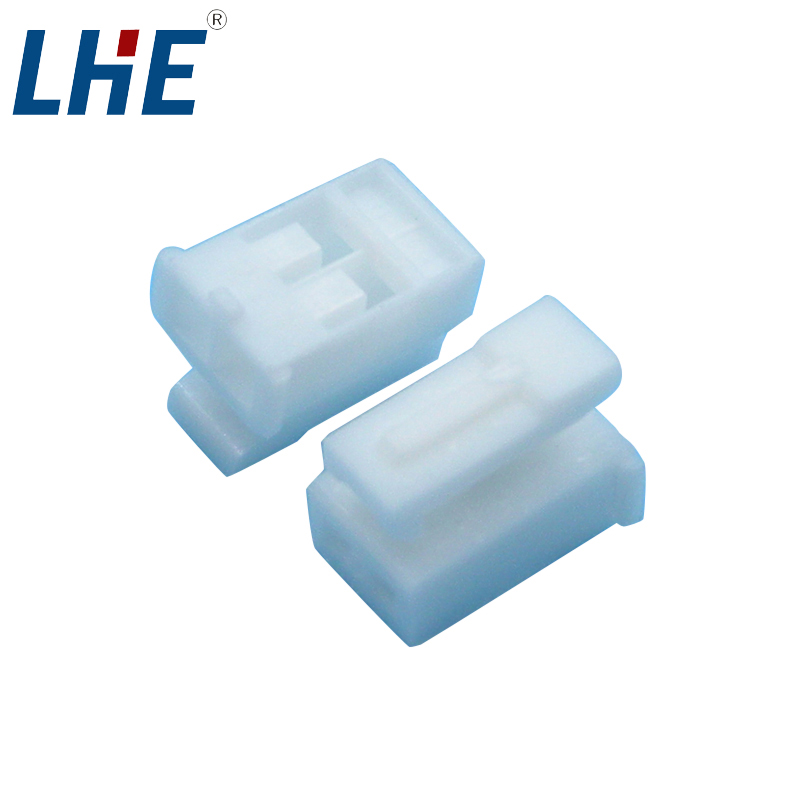

| H housings | Single-row Nylon 66 housings for the selected circuit count |

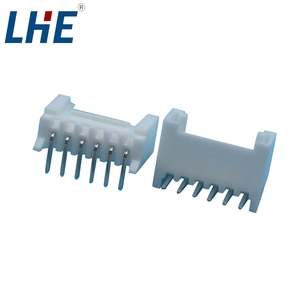

| Board headers | Vertical or right-angle formats matched to the PCB entry direction |

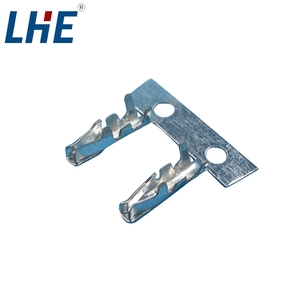

| Crimp terminal | Phosphor bronze contact for 30–22 AWG wire |
| Centerline | 2.0 mm |
|---|---|
| Positions | 2–15 |
| Rows | Single row |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Select the circuit count and board entry direction, then match the housing, header and terminal. Use the applicable drawing to confirm the final pitch, footprint and mechanical dimensions.
