A2004 2.0 mm wire-to-board connectors support single-row harness assemblies with Nylon 66 housings and a matching phosphor bronze crimp terminal. The family spans 2–30 circuits and is specified for 2 A per contact and 250 VAC/DC maximum voltage.
| Product role | Selection point |
|---|---|
| H housings | Single-row formats for 2–30 circuits, including the available keyed variants |

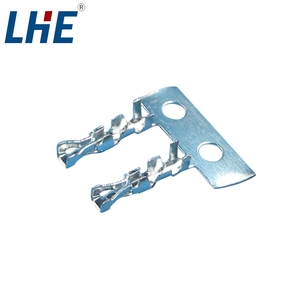

| Crimp terminal | Phosphor bronze contact for 30–26 AWG wire |
| Centerline | 2.0 mm |
|---|---|
| Rows | Single row |
| Maximum current | 2 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| Housing material | Nylon 66 UL94V-0 |
| UL file | E364711 |
| Contact plating | Tin Plating |
Choose the circuit count and housing geometry, then select the crimp terminal for 30–26 AWG conductors. Confirm the mating part and dimensions on the applicable drawing.
