A2002 2.0 mm wire-to-board connectors are built around double-row mating formats for higher circuit density. Housings, board headers and crimp terminals cover 4–32 circuits, with 3 A per-contact current and 250 VAC/DC maximum voltage.
| Component | Selection guidance |
|---|---|

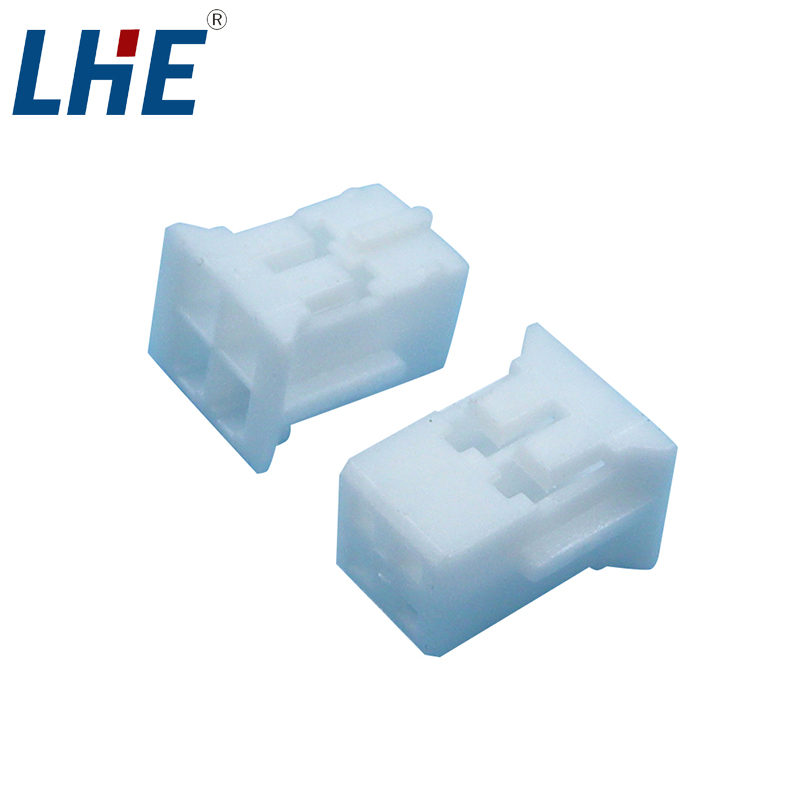

| H housings | Double-row Nylon 66 housings for the required circuit count |

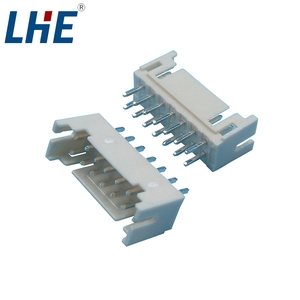

| Board headers | Vertical or right-angle interfaces matched to the PCB layout |

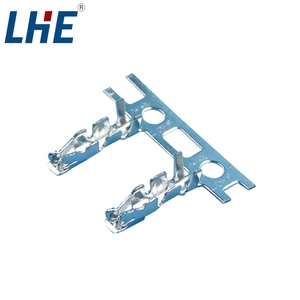

| Crimp terminal | Phosphor bronze contact for 28–22 AWG wire |
| Centerline | 2.0 mm |
|---|---|
| Positions | 4–32 |
| Rows | Double row |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Start with the total circuit requirement and row format, then match the housing and header by mating geometry. Select the terminal for 28–22 AWG conductors and verify the drawing before assembly.
