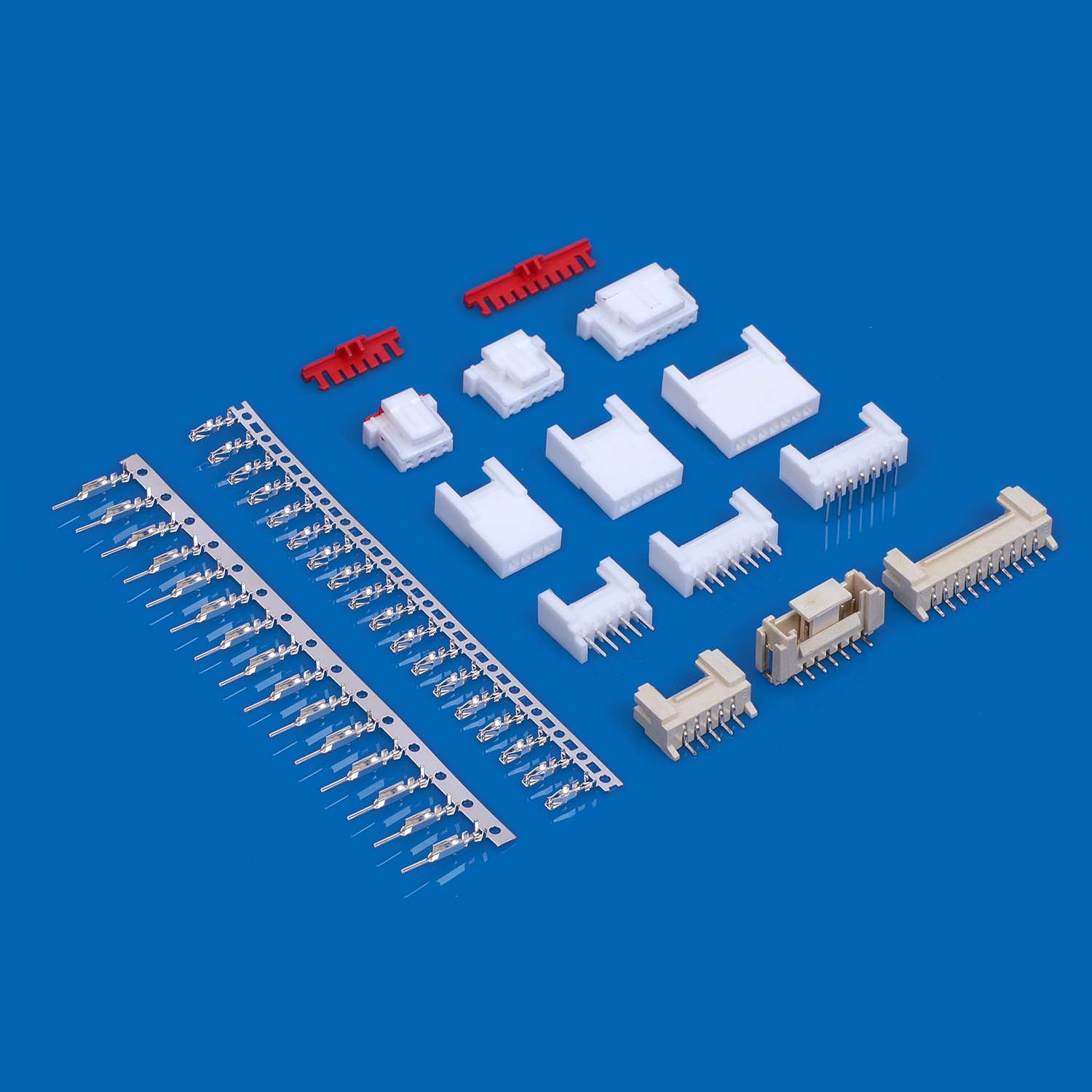

A20012 2.0 mm wire-to-board housings provide single-row Nylon 66 UL94V-0 interfaces for compact harness assemblies. The housing formats cover 2–15 circuits and are specified with a 3 A contact rating and 250 VAC/DC maximum voltage.
| Connector system | Wire-to-board |
|---|---|
| Centerline | 2.0 mm |
| Positions | 2–15 |
| Rows | Single row |
| Housing material | Nylon 66 UL94V-0 |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
Choose the housing by circuit count and match it with the compatible contact and board-side component. Confirm the mating dimensions and wire termination details on the applicable drawing.
