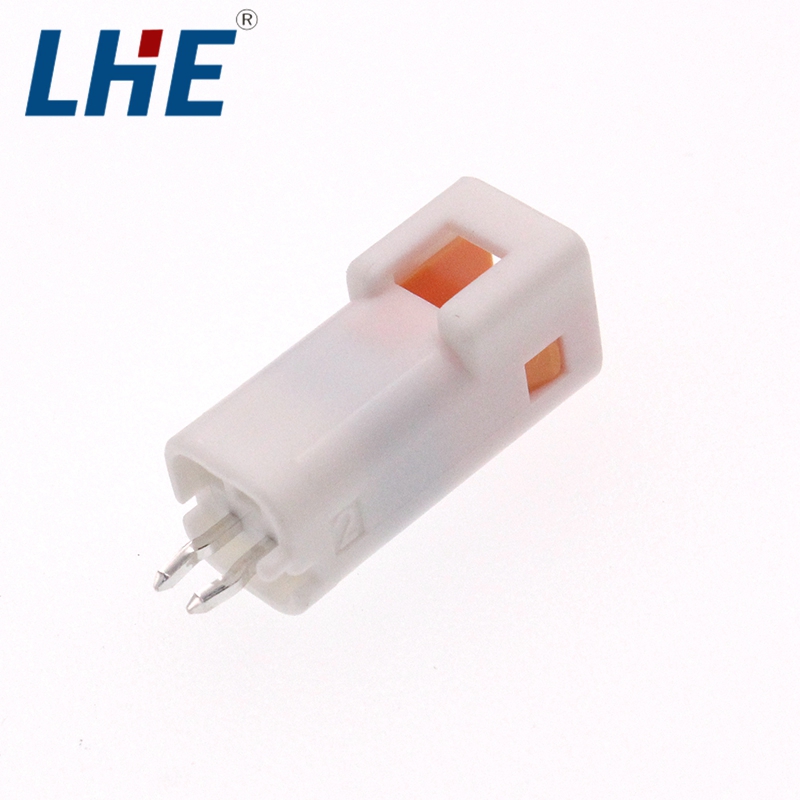

A20011 2.0 mm wire-to-board housings provide single-row harness interfaces for applications requiring a wider operating-temperature range. The formats cover 2–8 circuits in Nylon 66 UL94V-0 and are specified for 3 A per contact and 100 VAC/DC maximum voltage.
| Centerline | 2.0 mm |
|---|---|
| Positions | 2–8 |
| Rows | Single row |
| Housing material | Nylon 66 UL94V-0 |
| Maximum current | 3 A per contact |
| Maximum voltage | 100 VAC/DC |
| Operating temperature | -55 °C to 105 °C |
| UL file | E364711 |
Choose the housing by circuit count, then match the compatible contacts and board-side component. Confirm the mating dimensions and temperature requirements on the drawing.
