A20010 2.0 mm wire-to-board connectors provide compact single-row formats for board and harness interfaces. The available models cover 4, 5 and 15 circuits, with a 3 A per-contact rating and 100 VAC/DC maximum voltage.
| Product role | Selection point |
|---|---|
| Housing | Choose the circuit count and mating geometry for the harness side |

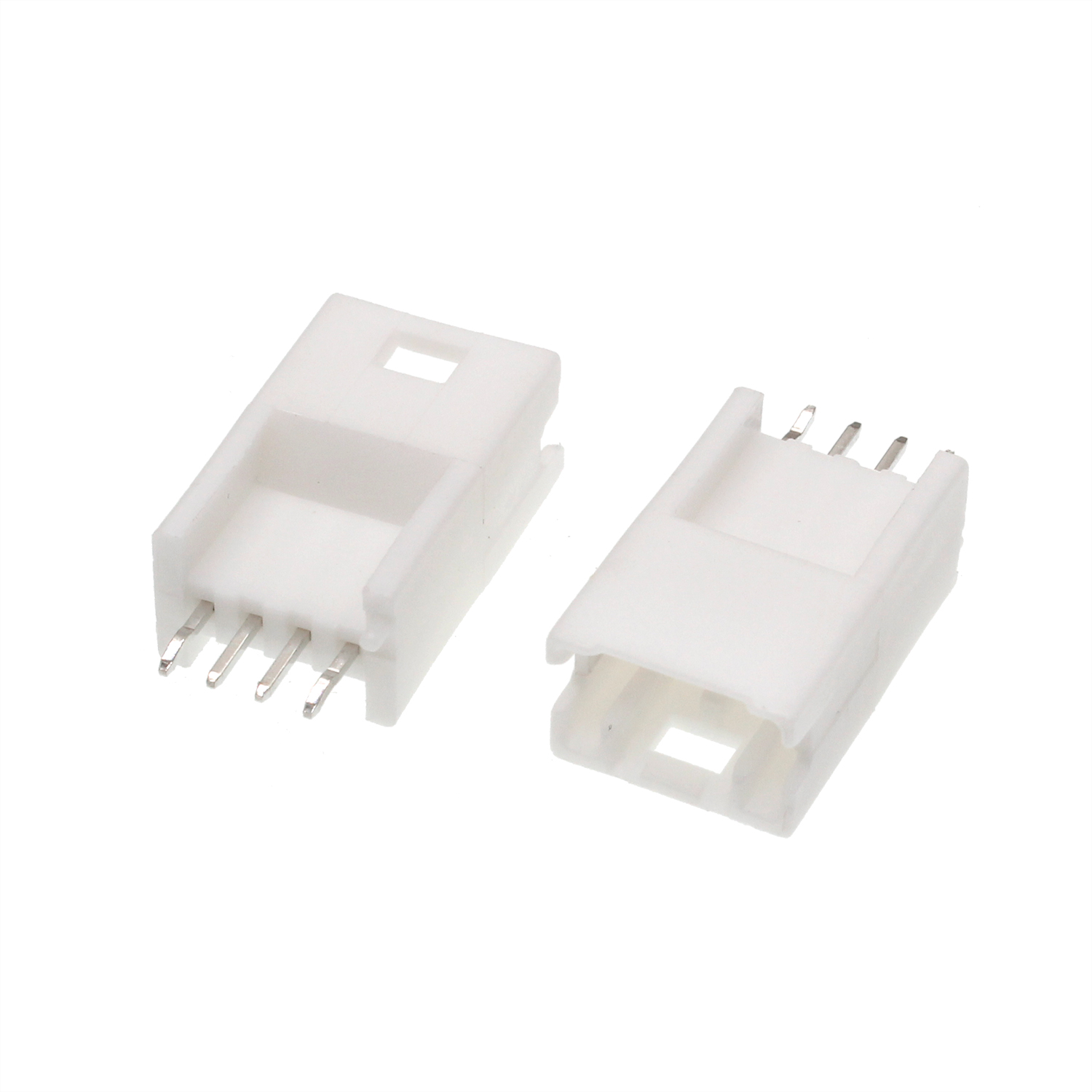

| Board header | Select the vertical or right-angle board interface shown for the model |
| Centerline | 2.0 mm |
|---|---|
| Positions | 4, 5 or 15 |
| Maximum current | 3 A per contact |
| Maximum voltage | 100 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Contact metal | Brass |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Choose the model by circuit count and mounting direction, then check the applicable drawing for the mating dimensions and PCB footprint.
