A2001 2.0 mm wire-to-board connectors combine single-row housings, PCB headers and crimp terminals for compact harness assemblies. The family covers 2–16 circuits and uses a 2 A per-contact rating with 100 VAC/DC maximum voltage.
| Component | Selection guidance |
|---|---|

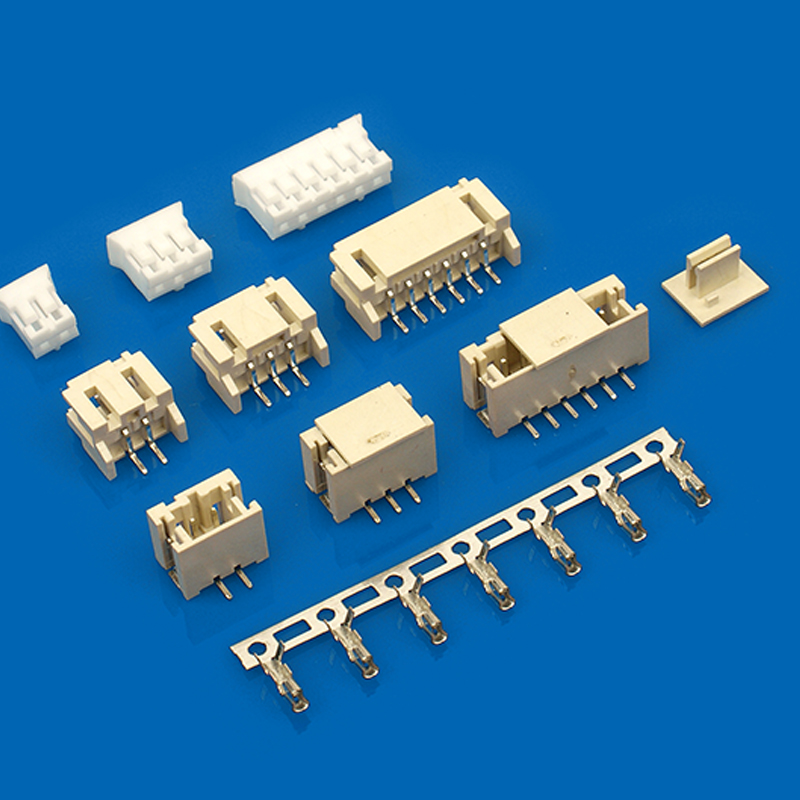

| H housings | Single-row Nylon 66 housings for the selected circuit count |

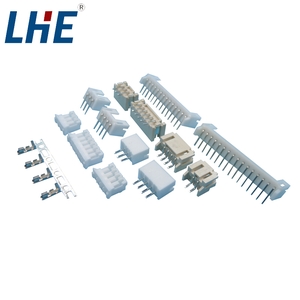

| Header formats | Vertical, right-angle or surface-mount board interfaces by model |

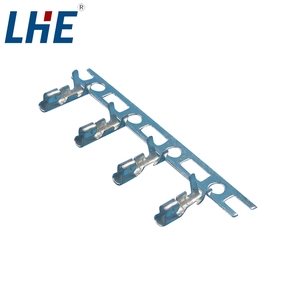

| Crimp terminal | Phosphor bronze contact for the applicable wire range |
| Centerline | 2.0 mm |
|---|---|
| Positions | 2–16 |
| Rows | Single row |
| Maximum current | 2 A per contact |
| Maximum voltage | 100 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Suitable wire range | 32–24 AWG |
| Contact plating | Tin Plating |
| Housing resin / flammability | LCP UL94V-0 / Nylon 66 UL94V-0 (model-dependent options) |
Match the housing and header by circuit count and board geometry. Then select the crimp contact for the conductor size and verify the final interface dimensions on the drawing.
