A1501 1.5 mm wire-to-board connectors provide a broad set of single-row mating parts for compact board connections. Housings, vertical or right-angle headers and crimp terminals cover 2–15 circuits, with mounting direction and board entry selected by the assembly layout.
| Component | Available formats |
|---|---|

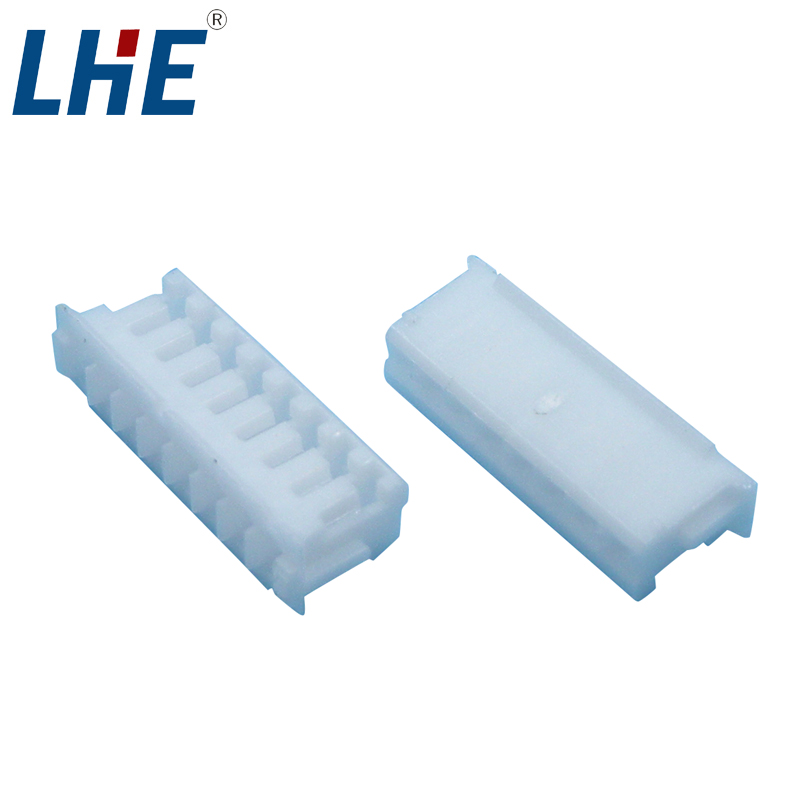

| H housings | White Nylon 66 housings for 2–15 circuits |

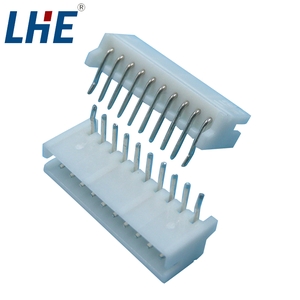

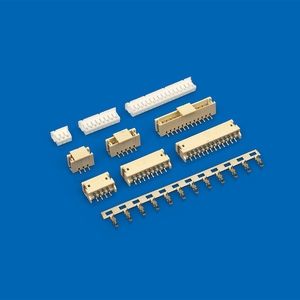

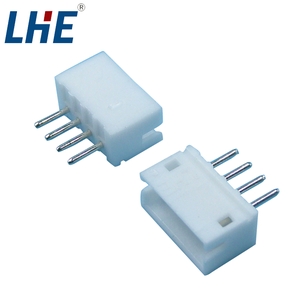

| WV, WR, SV and SR headers | Vertical, right-angle, through-hole and surface-mount formats by model |

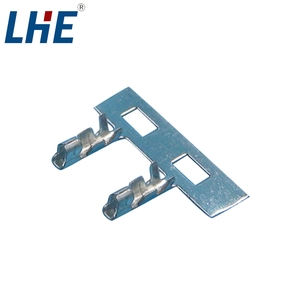

| TP crimp terminal | Tin-plated phosphor bronze contact for 32–26 AWG wire |
| Centerline | 1.5 mm |
|---|---|
| Positions | 2–15 |
| Rows | Single row |
| Maximum current | 1 A per contact |
| Maximum voltage | 50 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Housing resin / flammability | Nylon 66 UL94V-0 / Nylon 66 UL94V-0/V-2 (model-dependent options) |
Select the circuit count and mating housing first, then choose header direction and mounting style to suit the PCB. Confirm the terminal wire range, board footprint and mechanical dimensions on the relevant drawing.
