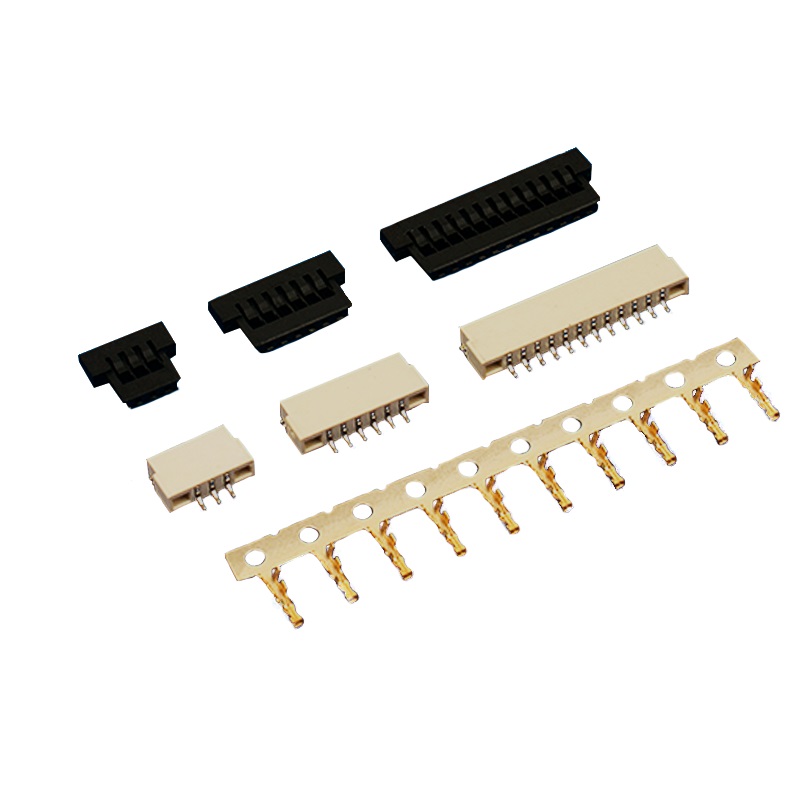

A1255 1.25 mm wire-to-board connectors bring together single-row housings, surface-mount headers and crimp terminals for compact harness-to-board assemblies. The available formats cover 2–15 circuits, with 1 A per-contact current and 200 VAC/DC maximum voltage. A1255-H08 belongs to this 1.25 mm family and follows the A1255 housing drawing.
| Component | Selection guidance |
|---|---|
| H housings | White single-row Nylon 66 UL94V-0 housings for 2–15 circuits |
| SR surface-mount headers | Single-row vertical headers with beige bodies and tin-plated brass contacts for the selected circuit count |

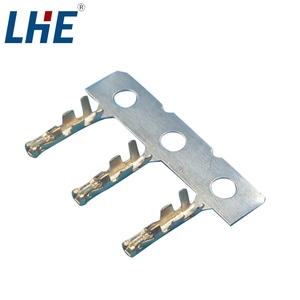

| TP crimp terminal | Tin-plated phosphor bronze terminal for 32–28 AWG wire |
| Connector system | Wire-to-board |
|---|---|
| Centerline | 1.25 mm |
| Positions | 2–15 |
| Rows | Single row |
| Maximum current | 1 A per contact |
| Maximum voltage | 200 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
Match the housing and header by circuit count, then select the crimp terminal for the 32–28 AWG conductor. Confirm the header orientation, board footprint and mating dimensions on the applicable drawing before finalizing the connector assembly.
