A1254 1.25 mm wire-to-board connectors provide single-row housings, crimp terminals and PCB headers for compact harness assemblies. The family covers 2–15 circuits and 30–26 AWG wire, using a 1 A per-contact rating and 50 VAC/DC maximum voltage.
| Component | Available formats |
|---|---|

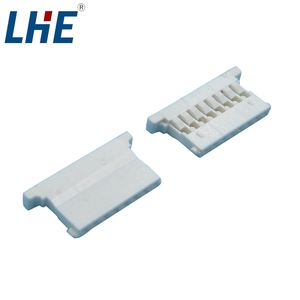

| H housings | White single-row housings for 2–15 circuits |

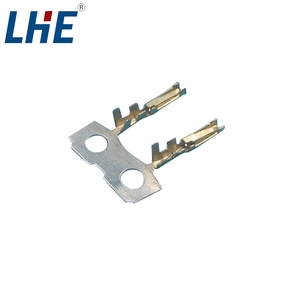

| T crimp terminal | Tin-plated phosphor bronze terminal for 30–26 AWG wire |

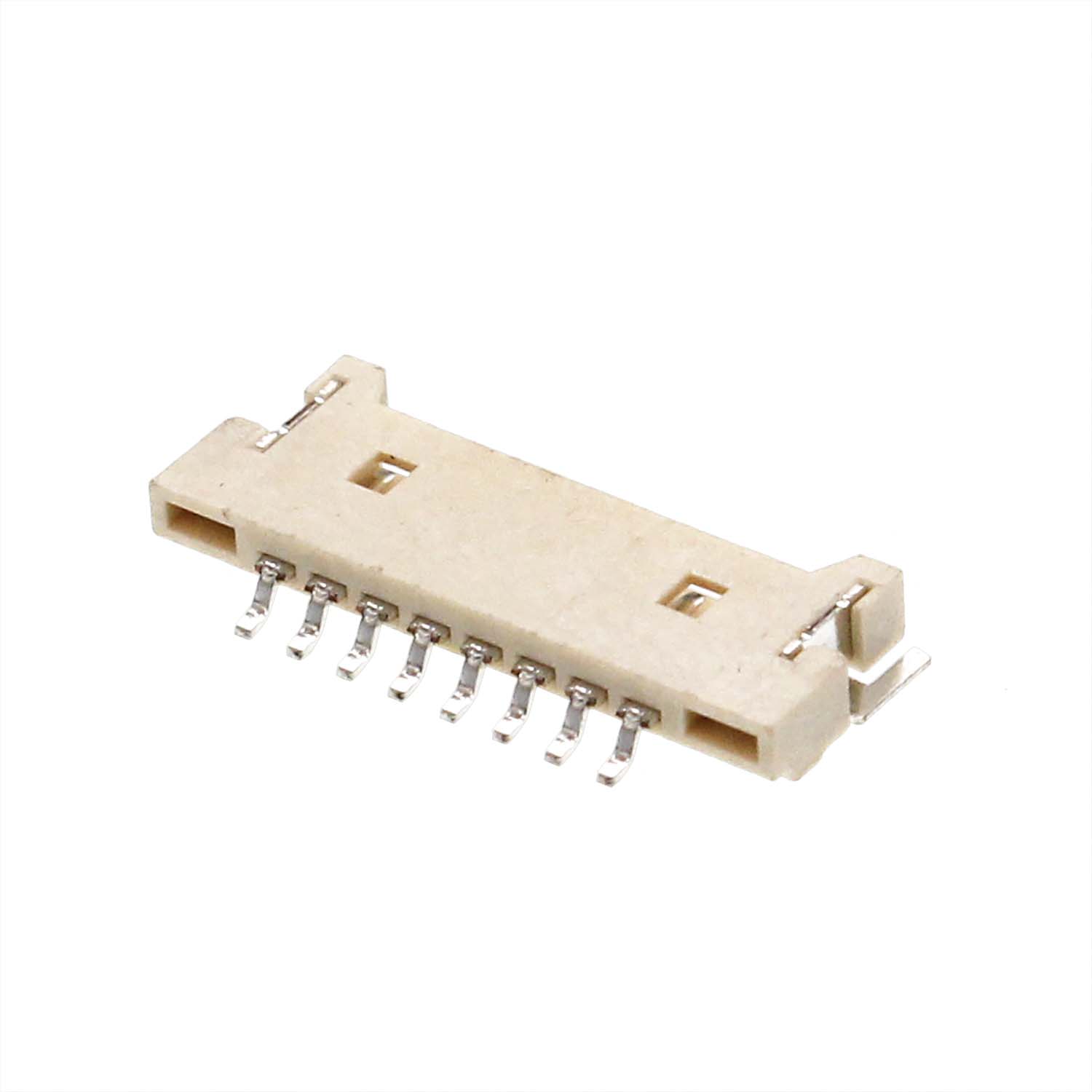

| SR PCB headers | Matching header formats for the selected circuit count and board layout |
| Centerline | 1.25 mm |
|---|---|
| Positions | 2–15 |
| Rows | Single row |
| Maximum current | 1 A per contact |
| Maximum voltage | 50 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| Housing material | Nylon 66 UL94V-0 |
| UL file | E364711 |
Choose the housing and PCB header with the same circuit count, then confirm the header orientation and footprint on its drawing. Select the crimp terminal by the 30–26 AWG wire range and verify mating dimensions before releasing the harness assembly.
