A1002 1.0 mm Single-Row Wire-to-Board Connectors

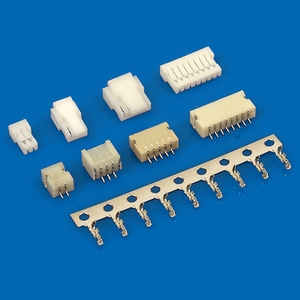

A1002 1.0 mm single-row wire-to-board connectors combine white mating housings, compact surface-mount PCB headers and a tin-plated crimp terminal. Circuit counts from 2 to 15 allow the same mating family to serve small board assemblies while maintaining a 1 A contact rating and 50 V maximum voltage.

Single-Row Mating Components

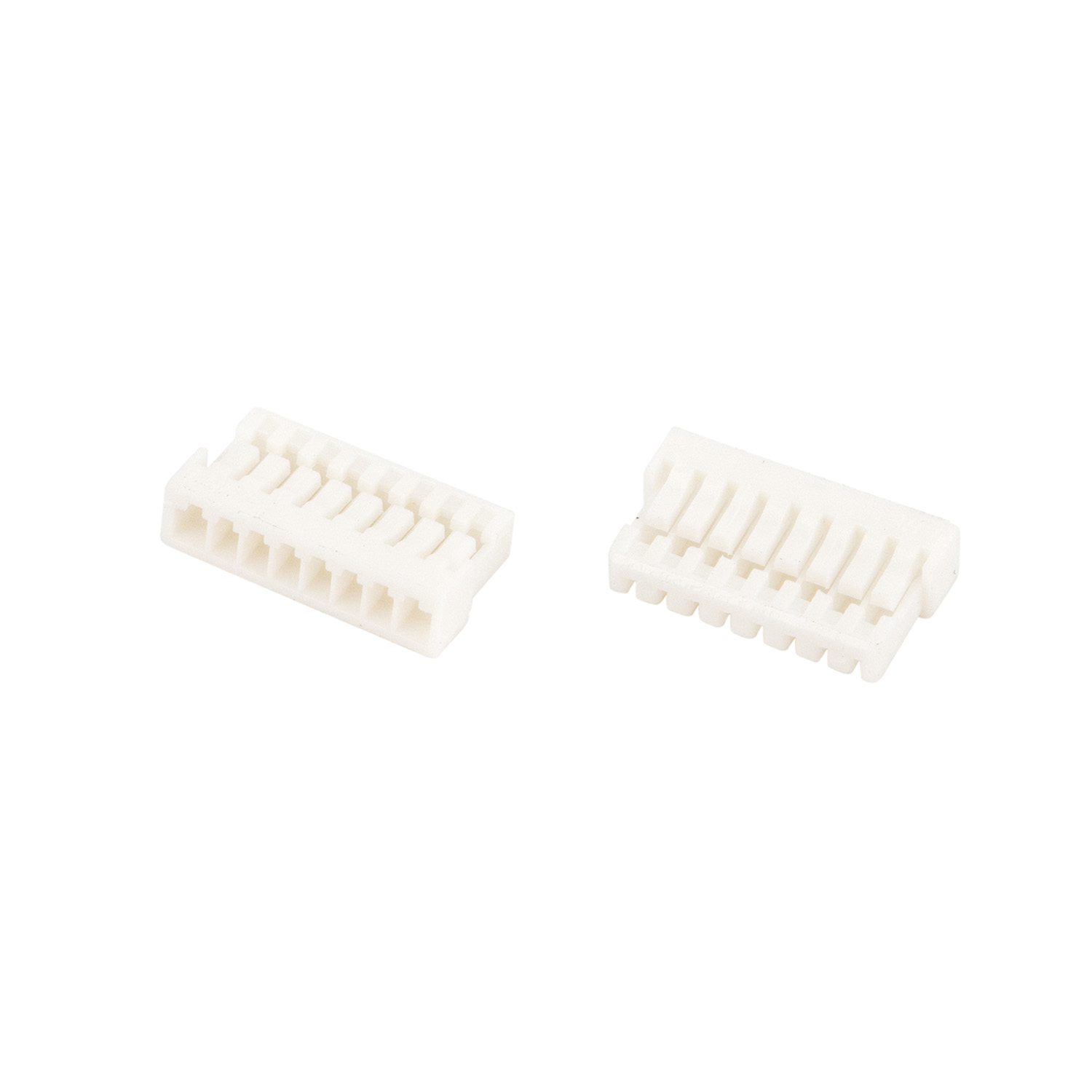

• H and HB housings provide white Nylon 66 UL94V-0 bodies for 2–15 circuits.

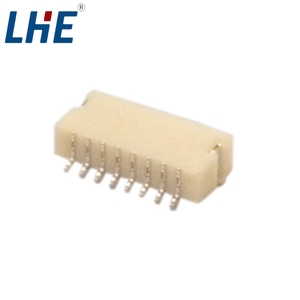

• SVB, SR and SRB header families provide beige surface-mount board interfaces with tin-plated brass contacts.
• The TP terminal uses tin-plated phosphor bronze and accepts 32–28 AWG wire.

Ratings and Construction

Choosing Circuit Count

Select matching housing and header positions from 2 through 15, then confirm the board footprint and mating dimensions on the corresponding drawing. The crimp contact is selected by the 32–28 AWG wire range and should be applied with the specified terminal geometry.
