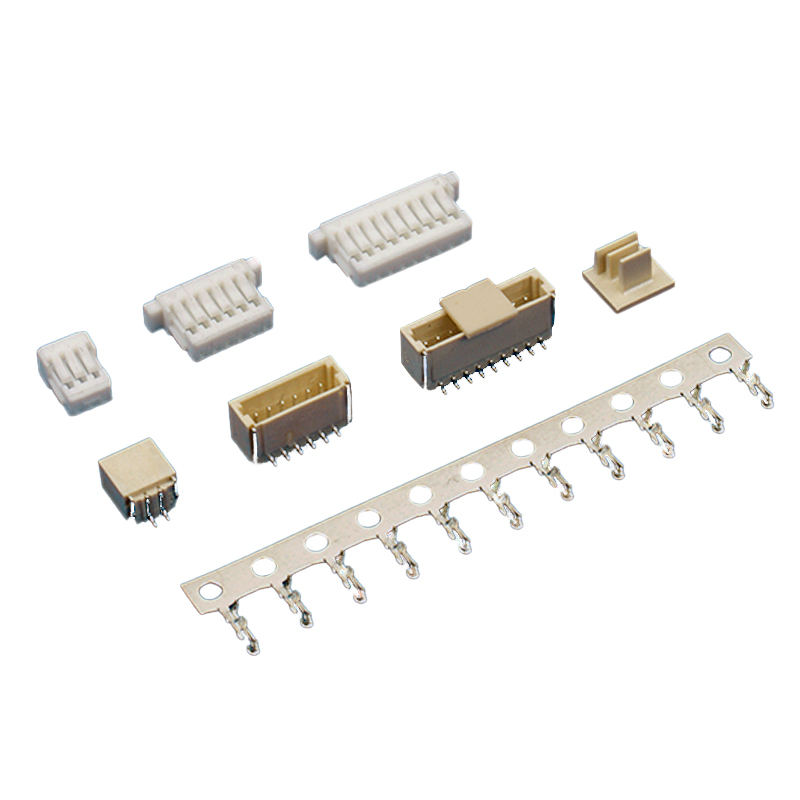

A1001 1.0 mm wire-to-board connectors provide mating housings, crimp terminals and surface-mount PCB headers for compact signal and low-power circuits. Single- and double-row formats support circuit counts from 2 to 50, while vertical and right-angle header layouts help match the cable direction to available board space.
| Component | Available formats |
|---|---|

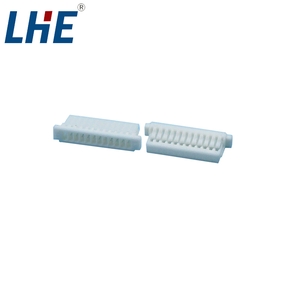

| Housings | H, HB and HC single-row families; multi-position housings for matching crimp contacts |
| Vertical headers | SV and SVB surface-mount families in single- and double-row layouts |
| Right-angle headers | SR and SRB surface-mount families in single- and double-row layouts |

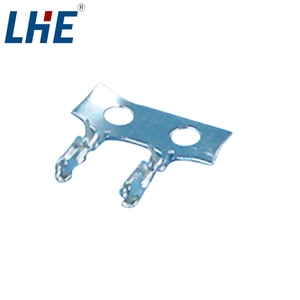

| Crimp contact | TP tin-plated phosphor-bronze terminal for 32–28 AWG wire |
| Pitch | 1.0 mm |
|---|---|
| Positions | 2–50 |
| Rows | 1 or 2 |
| Maximum current | 1 A per contact |
| Maximum voltage | 50 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| Insulator options | Nylon 66, LCP or PA9T; UL94V-0 grades |
| Contact materials | Tin-plated brass headers; tin-plated phosphor-bronze crimp terminal |
| UL file | E364711 |
Choose the housing and header with the same row arrangement and position count, then confirm vertical or right-angle board entry. Match the TP terminal to 32–28 AWG wire and verify the applicable drawing for PCB footprint, mating dimensions and packaging format.
