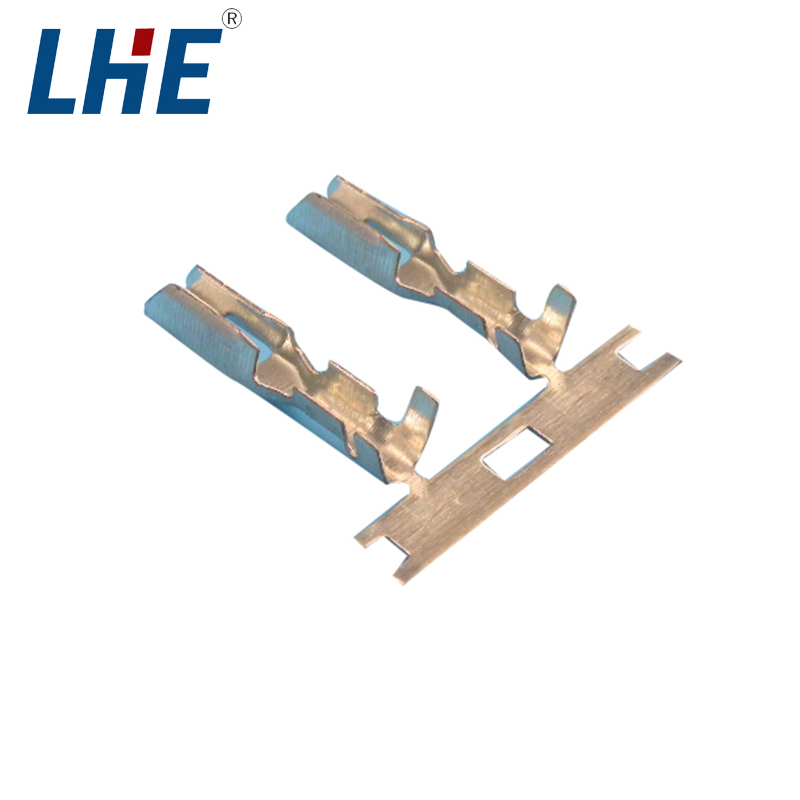

A10001 10.0 mm wire-to-board connector terminals provide a crimp-contact option for harness connections that need a larger pitch and higher contact rating. The terminals use tin-plated phosphor bronze and are specified for 24–18 AWG wire, with a 7 A per-contact rating and 250 VAC/DC maximum voltage.
Select the A10001 terminal for 24–18 AWG conductors, then confirm the terminal geometry and mating dimensions on the applicable drawing. The 10.0 mm centerline applies to the connector system; this page covers the crimp terminal component.
| Connector system | Wire-to-board |
|---|---|
| Centerline | 10.0 mm |
| Contact material | Tin-plated phosphor bronze |
| Wire range | 24–18 AWG |
| Maximum current | 7 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
Use the terminal and connector-series drawings to verify the crimp form, contact interface and dimensional requirements before finalizing the harness design.
