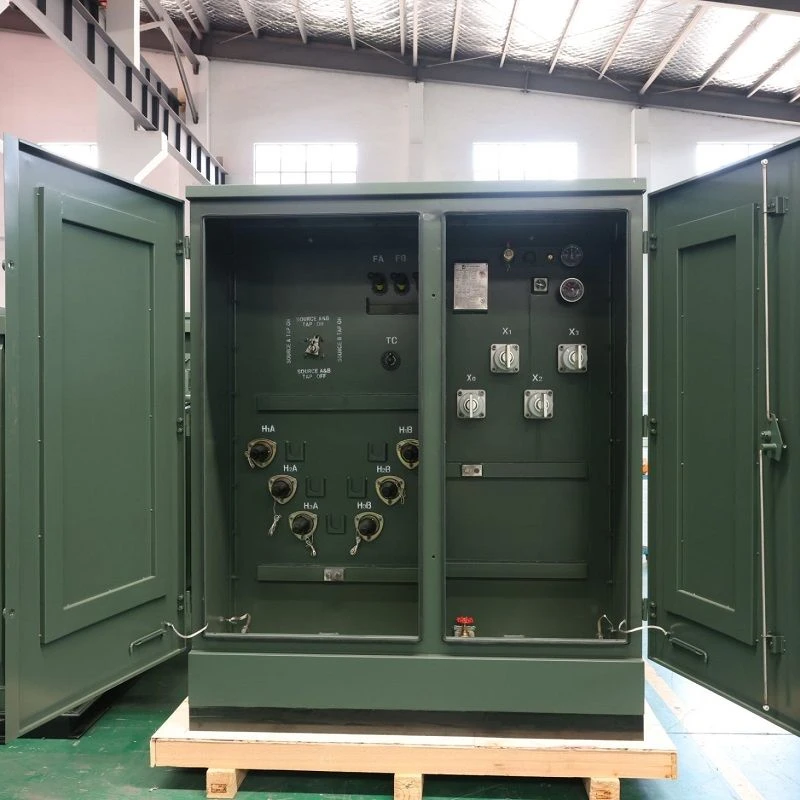

800 kVA Pad-Mounted Distribution Transformer

800 kVA Pad-Mounted Distribution Transformer is prepared for ground-level utility and industrial distribution. It covers 12.47kV / 13.2kV / 24.9kV / 34.5kV input networks and 480Y/277V (Typical) output distribution. This series description presents the application, construction, protection, and specification details in finished product copy.

Modernizing the 750 kVA Standard

Modernizing the 750 kVA Standard summarizes the protection, safety, or standard-related details that matter during engineering selection.

• The 800 kVA Pad Mounted Transformer acts as the bridge between light commercial distribution and heavy industrial power. It is frequently deployed to power large strip malls, light manufacturing plants, or cryptocurrency mining containers where continuous load stability is required.
• In the evolving global market, the 800 kVA rating has largely superseded the legacy 750 kva pad mounted transformer specification.
• The Upgrade Logic: While 750 kVA was a common NEMA standard rating, modern manufacturing lines are optimized for the R10 series (800 kVA). Choosing the 800 kVA unit offers facility managers a 6.6% capacity increase often at a lower unit cost due to standardized core production. This extra capacity provides a valuable buffer against harmonic heating from non-linear loads without requiring a custom order.

Cabinet Hardening: ANSI C57.12.28 Security

For ground-level utility and industrial distribution, cabinet Hardening: ANSI C57.12.28 Security is treated as a practical design and selection point rather than generic catalog wording.

• Security is the primary engineering concern for these high-value padmounted transformers located in accessible public areas. the enclosure design goes beyond simple locking mechanisms; it is engineered to pass the ANSI C57.12.28 Tank Integrity Standard.
• Cross-Kinked Doors: The cabinet doors are not flat sheets of metal. They feature "Cross-Kinking" (folded structural ridges). This geometry significantly increases torsional stiffness.
• Pry Bar Resistance: This design ensures that even if a vandal attacks the door edge with a pry bar, the steel deflects less than the allowed limit, preventing the door from being forced open to expose the high-voltage compartment.

Ground Interface and Cable Management

For ground-level utility and industrial distribution, ground Interface and Cable Management is treated as a practical design and selection point rather than generic catalog wording.

• As a heavy-duty ground mounted transformer, proper installation relies on the interface between the transformer sill and the concrete pad.
• Sill Geometry: The bottom flange (Sill) is designed with a specific step-profile to prevent "toe-access" (ensuring wires or tools cannot be pushed underneath).

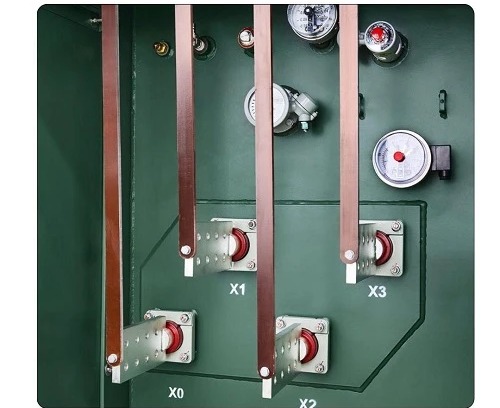

• Cable Training: At 800 kVA, the low-voltage cables (often 3 or 4 parallel runs of 500 MCM per phase) are stiff and difficult to maneuver. the cabinet offers an expanded Low Voltage Throat Depth (typically 24 inches or more), giving installers the necessary physical radius to bend and lug these heavy cables without stressing the bushing studs.

Fluid Management and Diagnostics

For ground-level utility and industrial distribution, fluid Management and Diagnostics is treated as a practical design and selection point rather than generic catalog wording.

• Managing the health of 300+ gallons of oil is critical. Unlike smaller disposable units, the 800 kVA model includes Asset Monitoring Ports.
• Analog gauges indicating oil temperature and liquid level for.
• Sampling Valve: A dedicated drain valve with a sampling device allows technicians to extract oil for Dissolved Gas Analysis (DGA) without de-energizing the unit. 1.
• Liquid Level & Temp: Analog gauges provide instant visual verification of oil levels and top-oil temperature, essential for tracking the unit's thermal history during peak summers. 2.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification Data.
• 800 kVA (IEC Standard).
• Upgrades 750 kVA sites.
• 47kV / 13.2kV / 24.9kV / 34.5kV.
• 480Y/277V (Typical).

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

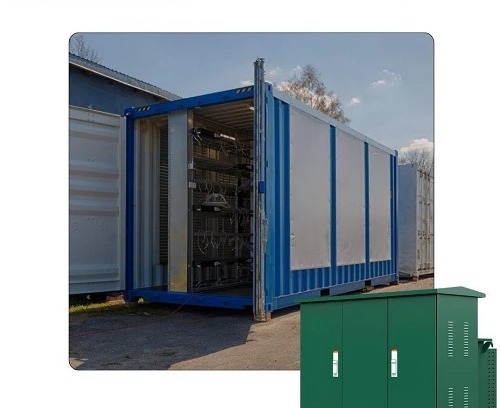

• 800 kVA pad mounted transformer powering a containerized.
• Cryptocurrency mining rig.
• Crypto Mining Containers: High-density power supply for mining rigs where the 800 kVA capacity matches standard 40ft container load profiles.
• Hospital Annexes: Providing redundant power to non-critical hospital wings, utilizing the tamper-proof cabinet for installation in parking structures.
• Industrial Retrofits: Replacing aging 750 kva pad mounted transformer units in manufacturing zones, utilizing the existing concrete pad while gaining additional ampacity.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.
