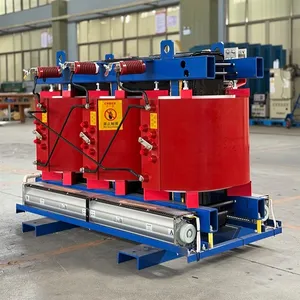

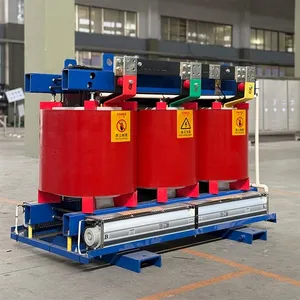

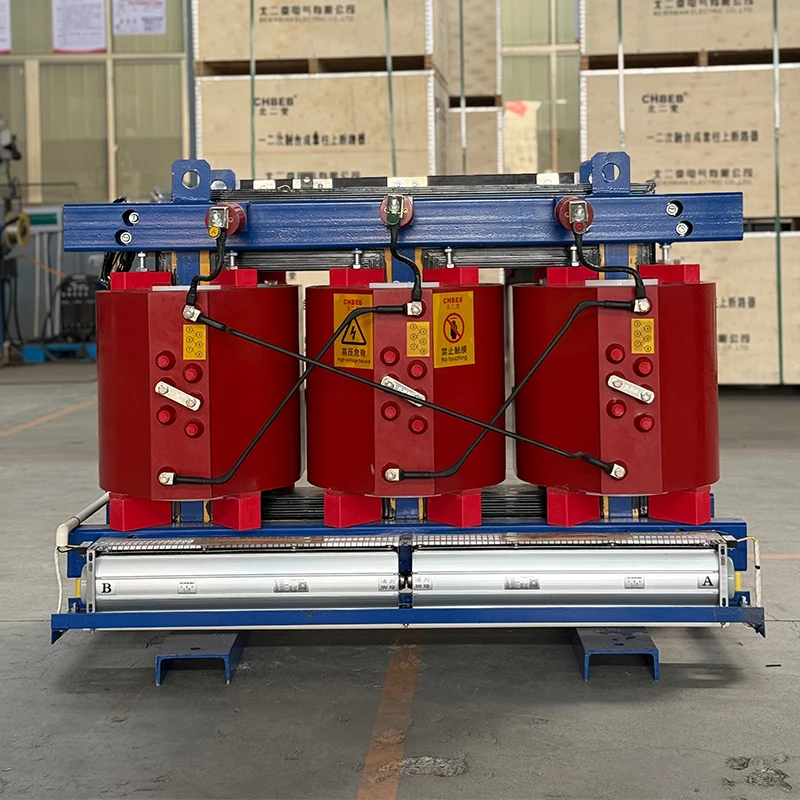

800 kVA Cast Resin Dry Type Transformer

800 kVA Cast Resin Dry Type Transformer is prepared for indoor cast-resin transformer duty. It covers 10kV / 11kV / 13.8kV input networks and 400V / 415V / 480V output distribution. It uses AN (Natural) / AF (Forced) cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

Standardization and Retrofit Logic

Standardization and Retrofit Logic summarizes the protection, safety, or standard-related details that matter during engineering selection.

• The 800 kVA Dry Type Transformer is the modern IEC-standard solution for medium-scale power distribution. It is engineered to align with the R10 preferred number series, offering a readily available alternative to non-standard specifications.
• In many retrofit scenarios, facility managers look to replace a legacy 750 kva dry type transformer. Specifying a standard 800 kVA unit is technically superior to ordering a custom-built 750 kVA replacement. It eliminates the engineering surcharge and long lead times associated with non-standard cores. Physically, the footprint difference is negligible, allowing the 800 kVA unit to fit onto existing concrete pads while delivering an immediate 6.6% ampacity upgrade to handle modern load growth.

Thermal Engineering: The "Class F / Rise B" Strategy

For indoor cast-resin transformer duty, thermal Engineering: The "Class F / Rise B" Strategy is treated as a practical design and selection point rather than generic catalog wording.

• As a premium air type transformer, the longevity of the insulation system is defined by its operating temperature. While standard units operate with a 100K temperature rise (Class F limit), this 800 kVA model can be engineered for a 80K Temperature Rise (Class B).
• The Logic: the design uses high-grade Class F (155°C) or Class H (180°C) materials but design the winding geometry to run cooler, strictly limiting the average temperature rise to 80K under full load.
• The Result: By operating 20°C-25°C below the material's thermal limit, the insulation aging rate is halved. This configuration is highly recommended for critical facilities where the expected lifespan must exceed 25-30 years.

Core Construction and Decibel Management

For indoor cast-resin transformer duty, core Construction and Decibel Management is treated as a practical design and selection point rather than generic catalog wording.

• Among high-performance dry type electrical transformers, controlling the hum caused by magnetostriction is critical.
• Precision step-lap silicon steel core structure for 800 kVA.
• Low noise dry transformers.

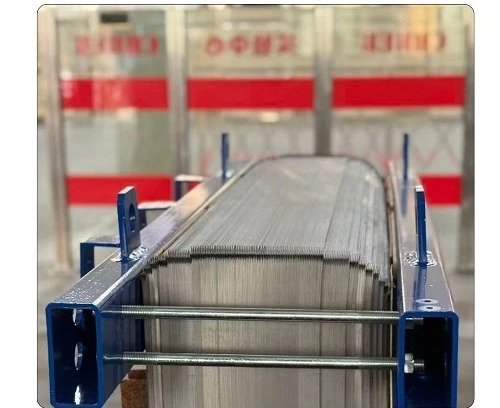

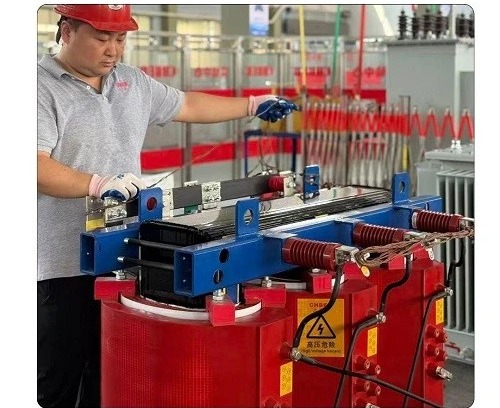

• Step-Lap Technology: We construct the core using high-permeability Grain Oriented (GO) silicon steel, stacked in a precision Step-Lap pattern with 45° mitered joints.
• Noise Reduction: This geometry smooths the magnetic flux transition at the corners, significantly reducing vibration. The resulting no-load noise level is typically suppressed below 62 dB, often eliminating the need for expensive acoustic baffling or sound-proof enclosures in sensitive installation zones like hospital corridors.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification Data.
• 800 kVA (IEC Standard).
• Covers 750 kVA loads.
• 10kV / 11kV / 13.8kV.
• 400V / 415V / 480V.

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• 800 kVA dry type transformer powering critical healthcare facilities.
• And hospital substations.
• Healthcare Facilities: Preferred for hospital substations where the "Class F/Rise B" specification ensures maximum reliability for critical life-support circuits.
• Industrial Retrofits: Replacing aging 750 kva dry type transformer units in manufacturing plants, utilizing the existing floor space while gaining ampacity.
• Commercial Offices: Installed in basement mechanical rooms to power central chillers and lighting busways.
