75 kVA Pole-Mounted Distribution Transformer

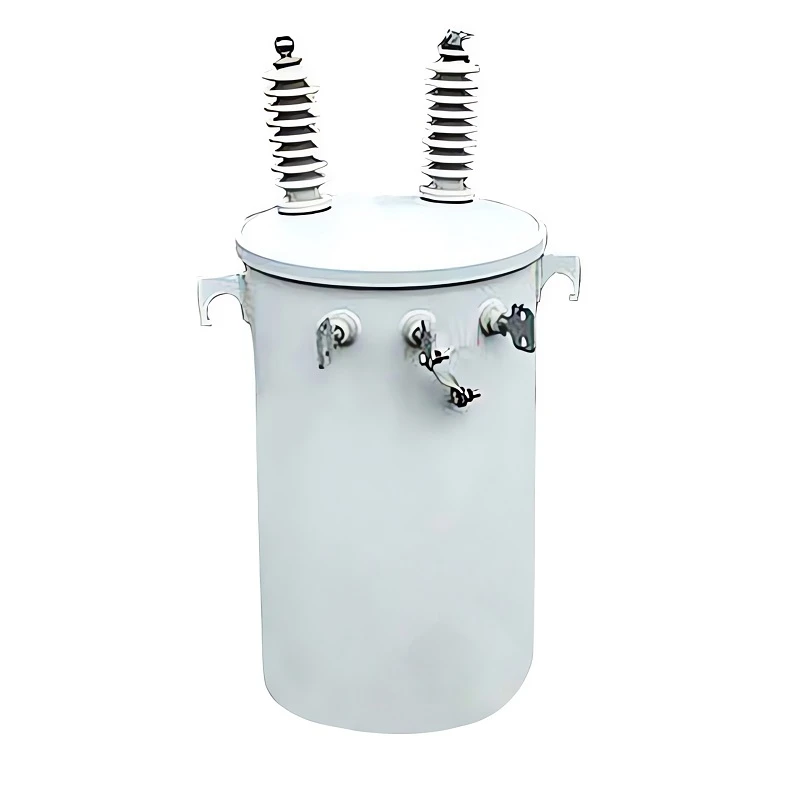

75 kVA Pole-Mounted Distribution Transformer is prepared for overhead distribution service. It covers 11kV / 12.47kV / 13.2kV / 33kV input networks and 120/240V, 277/480V, or 400V output distribution. It uses ONAN (Mineral Oil / FR3) cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

Commercial-Grade Overhead Distribution

For overhead distribution service, commercial-Grade Overhead Distribution is treated as a practical design and selection point rather than generic catalog wording.

• The 75 KVA Pole-Mounted Transformer acts as a strategic power hub for high-density residential zones and light commercial infrastructure. Delivering roughly 300 Amps at 240V, this unit pushes the upper limits of what is typically mounted on a standard Class 4 utility pole without requiring a reinforced platform.
• As a high-output pole distribution transformer, it is engineered to serve loads that exhibit sharp peaks, such as small strip malls or apartment complexes with centralized HVAC systems. To handle these demands, the internal core sizing is optimized for "Overload Regulation," ensuring voltage sag remains within ANSI limits even when the unit is pushed to 120% capacity during summer heatwaves.

Thermal Engineering: The Introduction of Fins

For overhead distribution service, thermal Engineering: The Introduction of Fins is treated as a practical design and selection point rather than generic catalog wording.

• At 75 kVA, the volume of oil generates more heat than a smooth cylindrical tank can passively dissipate. To maintain the insulation life, we often modify the tank geometry.
• Corrugated cooling fins on the tank wall to increase heat.
• Dissipation surface area.

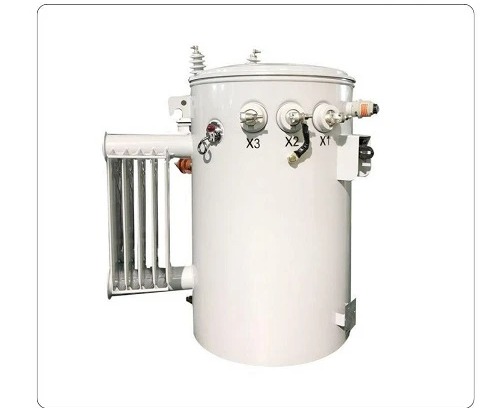

• Extended Surface Area: Unlike smaller units, this 75 kva transformer frequently features corrugated cooling fins or welded panel radiators on the tank wall.
• Physics of Cooling: These extensions increase the effective surface area in contact with the ambient air by 30-50%. This allows the unit to maintain a standard 65°C Average Winding Rise despite the massive thermal load, preventing the "thermal runaway" that would occur in a plain smooth tank.

Three-Phase Configuration: Banking vs. Integrated

For overhead distribution service, three-Phase Configuration: Banking vs. Integrated is treated as a practical design and selection point rather than generic catalog wording.

• For commercial projects requiring 75 kVA of three-phase power, engineers face a choice.
• Banking: The traditional method is clustering three 25 kVA single-phase units.
• Integrated T-Tank: However, we also offer a specialized three phase pole mounted transformer in a single "T-Shape" or rectangular tank. This integrated design houses a three-phase core (Triplex or Stacked) in one vessel.
• The Benefit: This drastically reduces the weight and moment arm on the utility pole compared to hanging three separate cans, freeing up valuable cross-arm space for capacitor banks or reclosers.

Installation Mechanics: Type B Adapters

Installation Mechanics: Type B Adapters connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• Mounting a unit that weighs over 400 kg requires robust mechanics. Standard "Type A" lugs (used on small units) often do not align with the bolt spacing required for such heavy loads.
• This pole mounted distribution transformer is standardly equipped with Type B Hanger Brackets or adapter plates. These allow the installer to securely bolt the unit to the pole using heavy-duty hardware that distributes the sheer force over a larger vertical section of the timber, preventing pole splintering or hardware fatigue over time.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification / Options.
• Phase Configuration.
• Single Phase (Standard) or 3-Phase (Integrated).
• 11kV / 12.47kV / 13.2kV / 33kV.
• 120/240V, 277/480V, or 400V.

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• 75 kVA pole mounted transformer powering a small retail plaza.
• Small Retail Plazas: Providing main power to a block of 4-6 shops involving refrigeration and air conditioning loads.
• EV Charging Stations: Dedicated supply for a cluster of Level 2 chargers where continuous load is high.
• Industrial Risers: Used as the specialized three phase pole mounted transformer (Triplex style) to power a remote pump house or cellular tower.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
