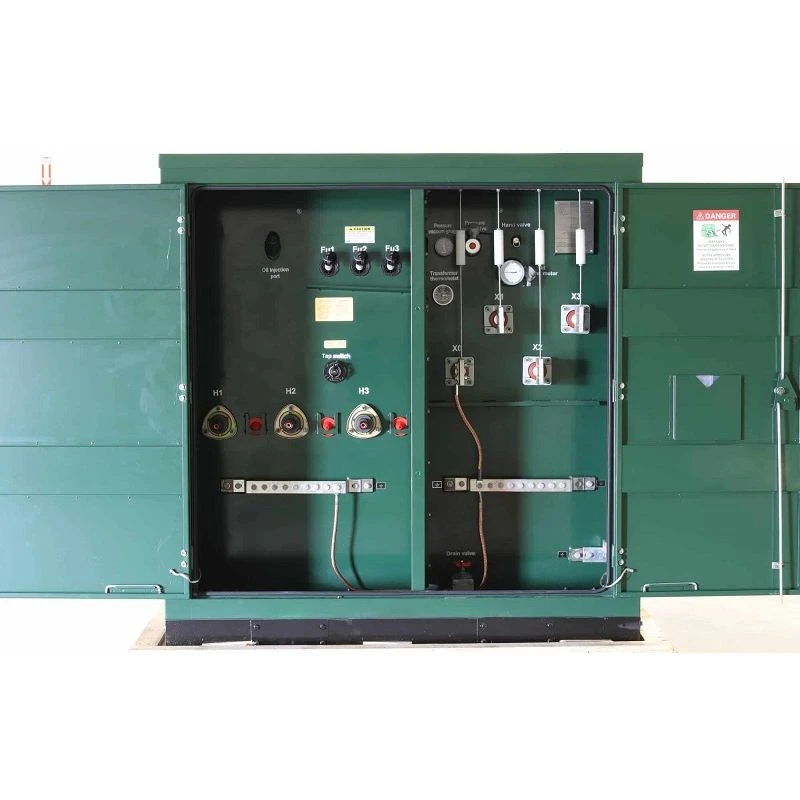

630 kVA Pad-Mounted Distribution Transformer

630 kVA Pad-Mounted Distribution Transformer is prepared for ground-level utility and industrial distribution. It covers 12.47kV / 13.8kV / 24.9kV / 34.5kV input networks and 480Y/277V (Typical) or 208Y/120V output distribution. This series description presents the application, construction, protection, and specification details in finished product copy.

The Intelligent Node for Distribution Loops

For ground-level utility and industrial distribution, the Intelligent Node for Distribution Loops is treated as a practical design and selection point rather than generic catalog wording.

• The 630 kVA Pad Mounted Transformer represents a pivotal capacity in medium-voltage distribution networks. Delivering approximately 758 Amps at 480V, this unit is sufficiently powerful to serve as the main supply for large office parks or data center cooling loops, yet compact enough to fit standard architectural easements.
• As a critical 3 phase pad mounted transformer, this unit is engineered for N+1 Grid Redundancy. Equipped with six high-voltage bushing wells (Pattern 2-In / 2-Out), it integrates seamlessly into a Loop-Feed topology. This architecture allows facility managers to maintain power continuity via an alternate feeder path if the primary cable fails, which is a mandatory requirement for meeting Service Level Agreements (SLAs) in premium commercial zones.

Dead-Front Physics: The Faraday Cage

For ground-level utility and industrial distribution, dead-Front Physics: The Faraday Cage is treated as a practical design and selection point rather than generic catalog wording.

• Public safety in accessible zones relies on the dead front pad mounted transformer architecture. The term "Dead-Front" refers to a specific electrostatic engineering standard compliant with IEEE 386.

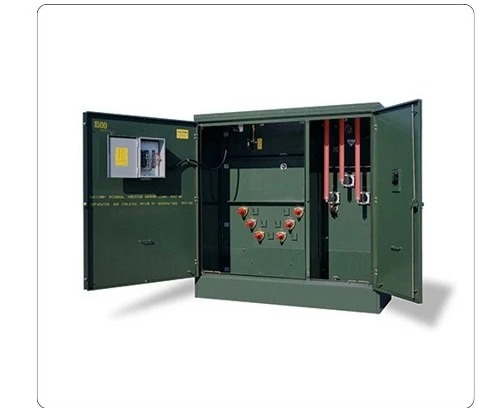

• Insulated EPDM rubber elbow connectors ensuring dead-front.
• Safety for operators.
• Shielding Continuity: The HV termination utilizes EPDM rubber elbows with a molded, semi-conductive outer layer that is physically grounded to the tank.
• The Physics: This creates a continuous Faraday Cage around the high-voltage connection. By forcing the external surface potential to remain at ground level, we eliminate the clearance distance requirements of live-front porcelain units, allowing the transformer to be safely installed in compact, public-facing footprints.

Internal Switching: Spring-Loaded Safety

Internal Switching: Spring-Loaded Safety summarizes the protection, safety, or standard-related details that matter during engineering selection.

• To manage the loop feed, this family of pad mounted distribution transformers is equipped with an internal 4-Position Load Break Switch (LBOR).

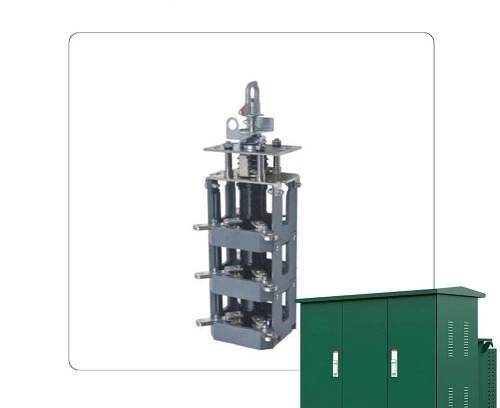

• Internal load break switch mechanism being assembled for loop.
• Feed distribution.
• Gang-Operated Mechanism: Unlike simple disconnects, this switch features a Spring-Loaded Mechanism. Regardless of how slowly the operator rotates the external handle with a hot stick, the internal blades snap open or closed at a calibrated speed.
• Anti-Teasing: This mechanical snap-action prevents "contact teasing" (partial separation), ensuring a clean, instant arc extinction under full load (630 kVA), thereby protecting the operator and the contact surfaces from electrical erosion.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification Data.
• 47kV / 13.8kV / 24.9kV / 34.5kV.
• 480Y/277V (Typical) or 208Y/120V.
• Dead-Front (IEEE 386 Bushing Wells).
• NEMA 8-Hole Spades.

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• Corporate Campuses: Serving as a loop-feed node connecting multiple office buildings. The 4-position switch allows maintenance on one building's feeder without cutting power to the neighbors.
• Solar Collection: Inverter step-up applications (0.6 MW block), where the dead-front design allows the unit to be safely placed near inverters in open fields.
• Retail Big Box: Powering large supermarkets where 24/7 uptime is required, utilizing the loop feed for redundancy.

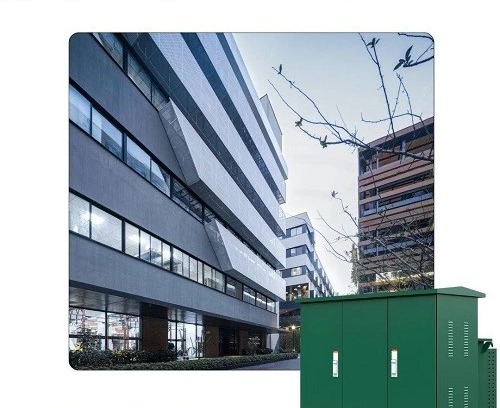

• 630 kVA pad mounted transformer serving a modern corporate.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.
