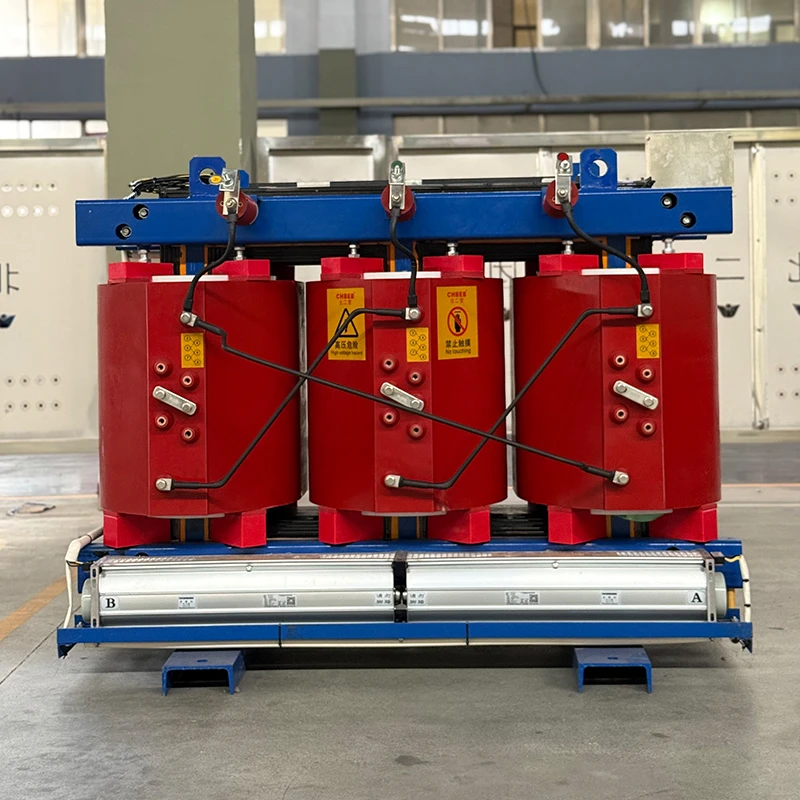

630 kVA Cast Resin Dry Type Transformer

630 kVA Cast Resin Dry Type Transformer is prepared for indoor cast-resin transformer duty. It covers 6kV / 10kV / 11kV / 13.8kV input networks and 400V / 415V / 480V output distribution. This series description presents the application, construction, protection, and specification details in finished product copy.

The "Load Center" Step-Down Strategy

For indoor cast-resin transformer duty, the "Load Center" Step-Down Strategy is treated as a practical design and selection point rather than generic catalog wording.

• The 630 kVA Dry Type Transformer serves as the industry-standard node for bringing medium voltage power directly onto the factory floor or into the building core. By acting as a localized dry type step down transformer, it converts 11kV or 33kV transmission voltage to 400V immediately adjacent to the consumption point.
• This installation strategy is driven by electrical economics. At 630 kVA, the low-voltage output current exceeds 900 Amps. Transmitting this magnitude of current from an outdoor oil substation requires expensive, heavy-gauge parallel cabling or busducts. By placing this dry-type unit indoors-mere meters from the Main Distribution Board (MDB)-engineers effectively eliminate the voltage drop across long LV runs and drastically reduce the capital expenditure on copper conductors.

Dynamic Capacity: AN vs. AF Cooling

Dynamic Capacity: AN vs. AF Cooling provides selection data that helps compare ratings, voltage classes, and installation requirements.

• A defining feature of this dry type distribution transformer is its thermal expandability. While the nameplate rating is 630 kVA under Natural Air (AN) cooling, the coil geometry is designed to accept cross-flow cooling fans.

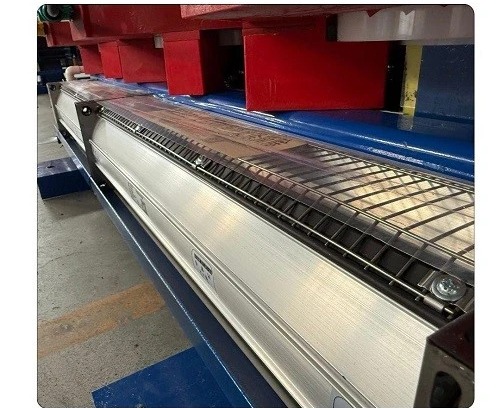

• Cross-flow cooling fans installed on 630 kVA dry transformer.
• For 40% AF capacity boost.
• AF Mode (Air Forced): By activating the base-mounted fans, the airflow velocity across the coil surface increases, boosting the heat transfer coefficient. This safely raises the continuous output capacity by 40%, effectively pushing the unit to approximately 882 kVA without exceeding insulation temperature limits.
• Sizing Efficiency: This allows facility managers to size the transformer based on the average load rather than the absolute peak. The AF system acts as a cost-effective "on-demand" buffer to handle seasonal HVAC spikes or temporary N+1 load shifting in data centers, avoiding the cost of oversizing the base infrastructure.

Products Description

For indoor cast-resin transformer duty, products Description is treated as a practical design and selection point rather than generic catalog wording.

• Handling approximately 909 Amps (at 400V) requires a rigid winding structure. the design uses the Cast Resin process where the high-voltage winding is encapsulated in vacuum-poured epoxy reinforced with fiberglass mesh.

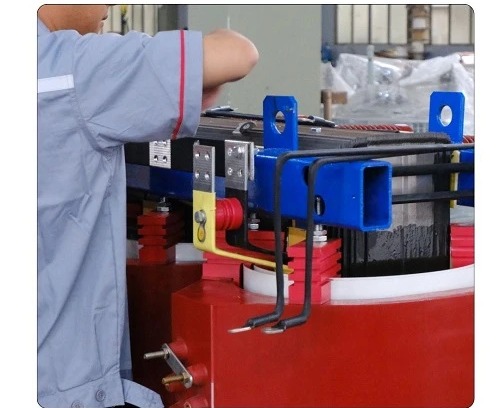

• Factory assembly of 630 kVA cast resin transformer showing.
• Rigid steel clamping structure.
• Mechanical Rigidity: Unlike VPI or oil units where coils might shift under stress, the cast resin block locks the conductors in place. This grants the transformer exceptional resistance to the radial forces generated during a short circuit, a common risk in heavy industrial grids.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification Data.
• 630 kVA (Base Rating).
• Up to 882 kVA (+40% with fans).
• 6kV / 10kV / 11kV / 13.8kV.
• 400V / 415V / 480V.

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

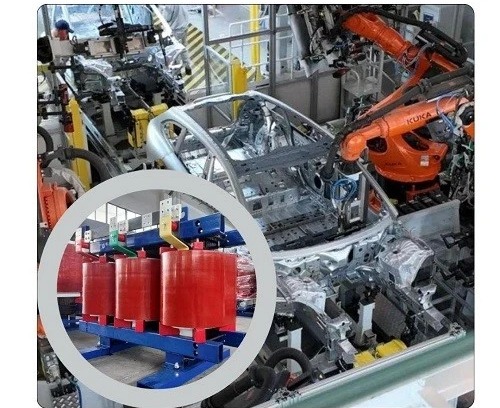

• 630 kVA dry type distribution transformer powering robotic.
• Welding lines in an automotive plant.
• Automotive Manufacturing: Installing the dry type distribution transformer on mezzanine platforms directly above robotic welding lines to minimize LV cable runs.
• Data Centers: Utilizing the AF cooling reserve to handle heat loads during cooling system failures or maintenance windows.
• High-Rise Infrastructure: Functioning as the dedicated HVAC transformer on mechanical floors (e.g., Level 30), where hoisting heavy liquid-filled units is structurally impossible.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

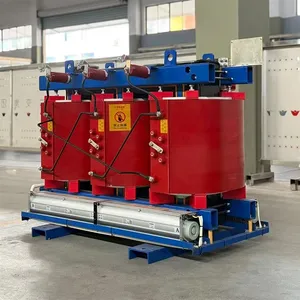

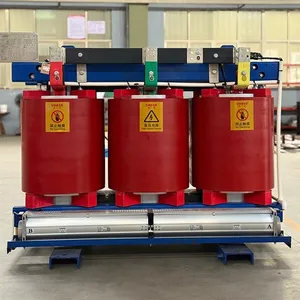

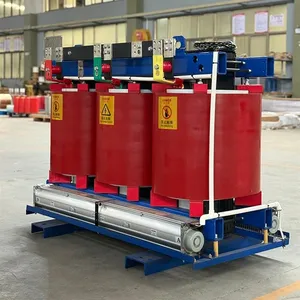

Product Detail Images
