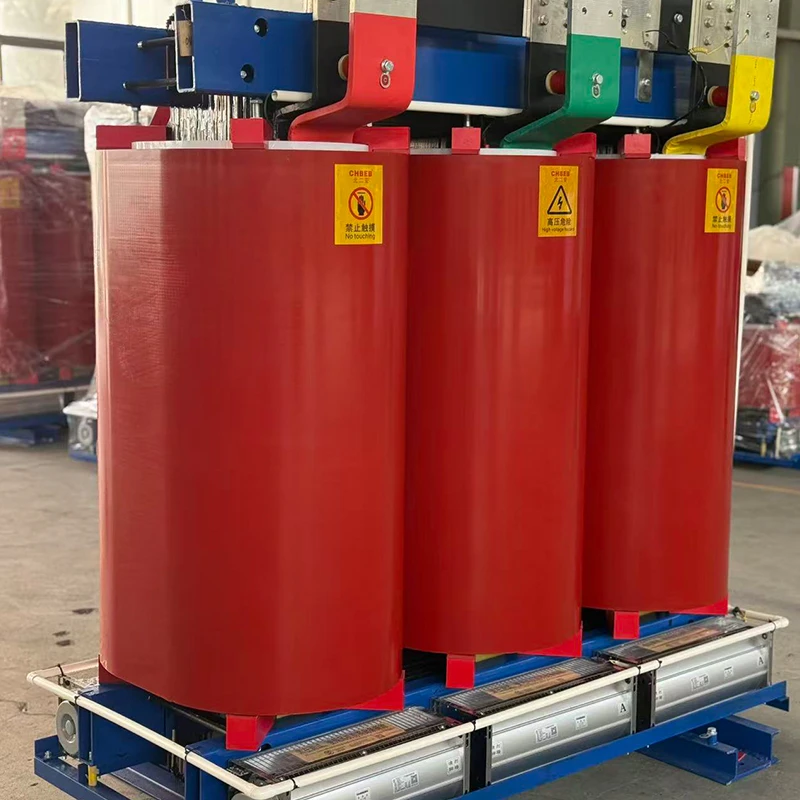

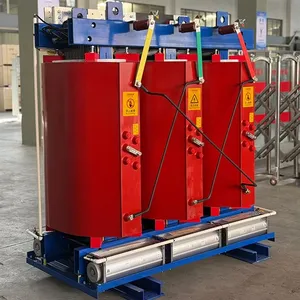

6000 kVA Cast Resin Dry Type Transformer

6000 kVA Cast Resin Dry Type Transformer is prepared for indoor cast-resin transformer duty. It covers 33kV / 35kV (HV Class) input networks and 2 x 690V (Split) or 11kV output distribution. It uses AN (Base) / AF (Forced) cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

The Apex of Dry-Type Engineering

For indoor cast-resin transformer duty, the Apex of Dry-Type Engineering is treated as a practical design and selection point rather than generic catalog wording.

• The 6000 kVA Dry Type Transformer represents the technological ceiling for standard cast-resin manufacturing. At this 6 MVA capacity, the unit is typically tasked with powering massive industrial drives or serving as the main substation for hyperscale data centers.
• Designing a 33kv dry type transformer at this scale introduces exponential challenges in dielectric stress control. Unlike lower voltage units, the electric field intensity at 33kV requires precise geometric grading. the design uses conductive shielding layers inside the high-voltage coil to linearize the potential distribution, ensuring the insulation survives the 170 kV Lightning Impulse (BIL) test without flashover.

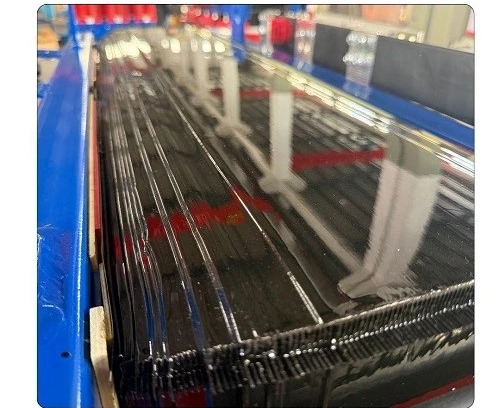

• Protective varnish coating on 6000 kVA silicon steel transformer.

CRT Technology: Controlling the Exotherm

For indoor cast-resin transformer duty, cRT Technology: Controlling the Exotherm is treated as a practical design and selection point rather than generic catalog wording.

• Manufacturing a 6 MVA crt dry type transformer (Cast Resin Transformer) involves casting a massive volume of epoxy. The critical engineering hurdle is managing the "Exothermic Reaction"-the heat generated chemically as the resin cures.
• Step-Curing Process: If a coil this size cures too fast, the internal heat will crack the insulation. the design uses a proprietary multi-stage temperature ramp in the autoclaves. This allows the massive resin block to polymerize slowly and evenly from the inside out.
• The Result: This strictly controlled process guarantees a stress-free internal structure, eliminating the residual mechanical tensions that cause "mystery cracks" in competitor units after a few years of operation.

Harmonic Mitigation: The 12-Pulse Solution

For indoor cast-resin transformer duty, harmonic Mitigation: The 12-Pulse Solution is treated as a practical design and selection point rather than generic catalog wording.

• Industrial facilities often specify 6000 kVA units to power large variable speed drives (VFDs) for rolling mills or compressors.
• Split-Winding Architecture: To prevent grid pollution, we frequently engineer these dry cast resin transformers with Dual Secondary Windings (e.g., two LV outputs phase-shifted by 30°, vector group Dd0y11).
• Function: This configuration feeds a 12-pulse rectifier system. The phase shift causes the 5th and 7th harmonic currents generated by the VFDs to cancel each other out inside the transformer. This keeps the upstream utility grid clean (IEEE 519 compliant) and reduces the thermal stress on the core.

Asset Health Monitoring

For indoor cast-resin transformer duty, asset Health Monitoring is treated as a practical design and selection point rather than generic catalog wording.

• A 6 MVA transformer is a critical, high-value asset. Blind operation is a risk.
• Fiber Optic Sensing: Instead of generic PT100 sensors that only measure surface temperature, we can embed Fiber Optic Probes directly onto the conductor hotspots during winding.
• Online PD Monitoring: For critical installations, the unit can be fitted with capacitive couplers to facilitate Online Partial Discharge Monitoring. This gives operators a live "ECG" of the insulation health, allowing for predictive maintenance before a catastrophic dielectric failure occurs.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification / Options.
• 33kV / 35kV (HV Class).
• 2 x 690V (Split) or 11kV.
• Dd0y1 (12-Pulse) or Dyn11.
• 0% - 10.0% (Customized for harmonics).

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• Steel Metallurgy: Powering the main DC motors for cold rolling mills via 12-pulse rectifiers.
• Data Center MV Loop: Serving as the main MV/MV redundancy tie, stepping down 33kV to an 11kV distribution ring.
• Large Pump Stations: Driving 6.6kV or 11kV water injection pumps for municipal water treatment or oil & gas pipelines.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
