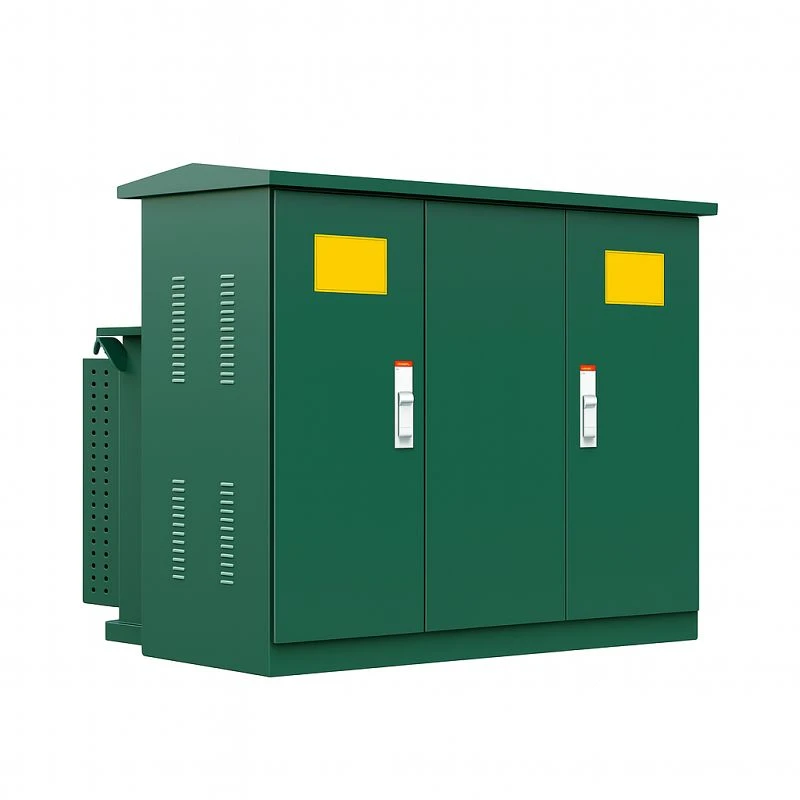

5000 kVA Pad-Mounted Distribution Transformer

5000 kVA Pad-Mounted Distribution Transformer is prepared for ground-level utility and industrial distribution. It covers 13.8kV / 34.5kV (Delta or Wye) input networks and 480V / 600V / 4160V output distribution. It uses ONAN (Natural) / ONAF (Forced Air) cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

The Upper Limit of Compact Distribution

For ground-level utility and industrial distribution, the Upper Limit of Compact Distribution is treated as a practical design and selection point rather than generic catalog wording.

• The 5000 kVA Pad Mounted Transformer represents the pinnacle of cabinet-style distribution engineering. Designed to replace traditional open-air substations, it packs 5 MVA of capacity into a secure, low-profile metal enclosure. While most pad transformers typically top out at 2500 kVA for commercial use, this utility-scale unit is engineered for heavy industrial nodes and grid distribution points where space is constrained but power demand is massive.

Enclosure Integrity: Compliant with ANSI C57.12.28

For ground-level utility and industrial distribution, enclosure Integrity: Compliant with ANSI C57.12.28 is treated as a practical design and selection point rather than generic catalog wording.

• Security is the defining feature of this 5-ton asset. The cabinet is not merely a steel box; it is strictly manufactured to meet the rigorous ansi c57 12.28 standard for enclosure integrity.
• Tamper Resistance: To pass the ansi c57 12.28 certification, the enclosure must withstand specific pry tests, wire probe insertion tests, and pull tests. This ensures that the high-voltage interior remains inaccessible to unauthorized personnel or vandals in public spaces.
• Corrosion Defense: The coating system undergoes a specialized salt-spray durability test. This ensures the unit survives in coastal or humid industrial environments without structural degradation.

Thermal Dissipation and Radiator Design

For ground-level utility and industrial distribution, thermal Dissipation and Radiator Design is treated as a practical design and selection point rather than generic catalog wording.

• Dissipating the thermal load of a 5000 kVA unit requires an advanced cooling architecture.

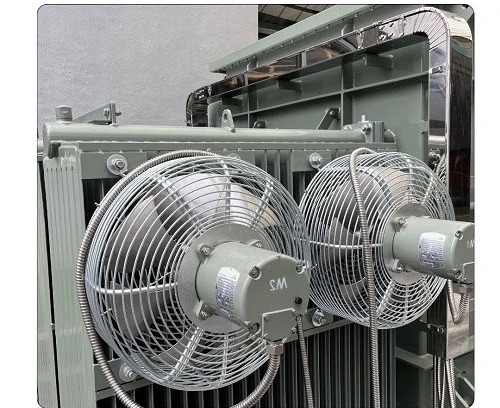

• External cooling fans mounted on radiators for ONAF forced air.
• Detachable Radiators: Unlike smaller pad transformers that rely solely on corrugated tank walls, this model is equipped with banks of heavy-duty, detachable panel radiators. This significantly expands the cooling surface area to maintain oil temperatures within the 65°C rise limit.
• Airflow Management: The cabinet design includes engineered air gaps that allow natural convection to flow through the radiators while maintaining the tamper-proof requirements of ansi c57 12.28.

Protection and Switching

Protection and Switching summarizes the protection, safety, or standard-related details that matter during engineering selection.

• Managing 5 MVA requires robust fault protection.
• Vacuum Fault Interrupter (VFI): Instead of simple fuses, these units often integrate an internal VFI, providing resettable electronic circuit protection similar to a breaker.
• Isolation Links: Equipped with under-oil switching for safe isolation during maintenance loops.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Data / Configuration.
• ONAN (Natural) / ONAF (Forced Air).
• Standard Compliance.
• Ansi c57 12.28 (Enclosure Integrity).
• 8kV / 34.5kV (Delta or Wye).

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

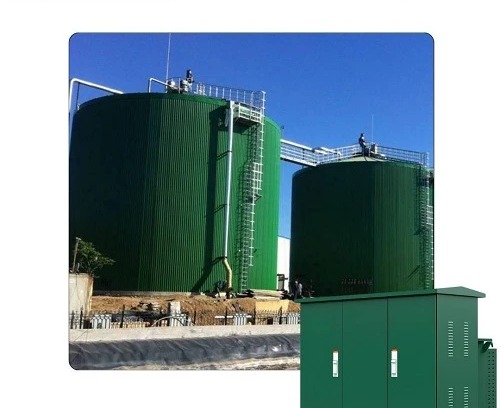

• 5000 kVA pad mounted transformer powering heavy pumps in a.
• Chemical processing plant.
• Cryptocurrency Mining Farms: The preferred choice for "Block Box" mining containers requiring massive, steady power density.
• Grid Distribution Loops: Acts as a localized substation for residential subdivisions, stepping down 34.5kV transmission feeds.
• Heavy Industry: Powering large-scale chemical processing pumps or electric arc furnaces where indoor floor space is unavailable.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
