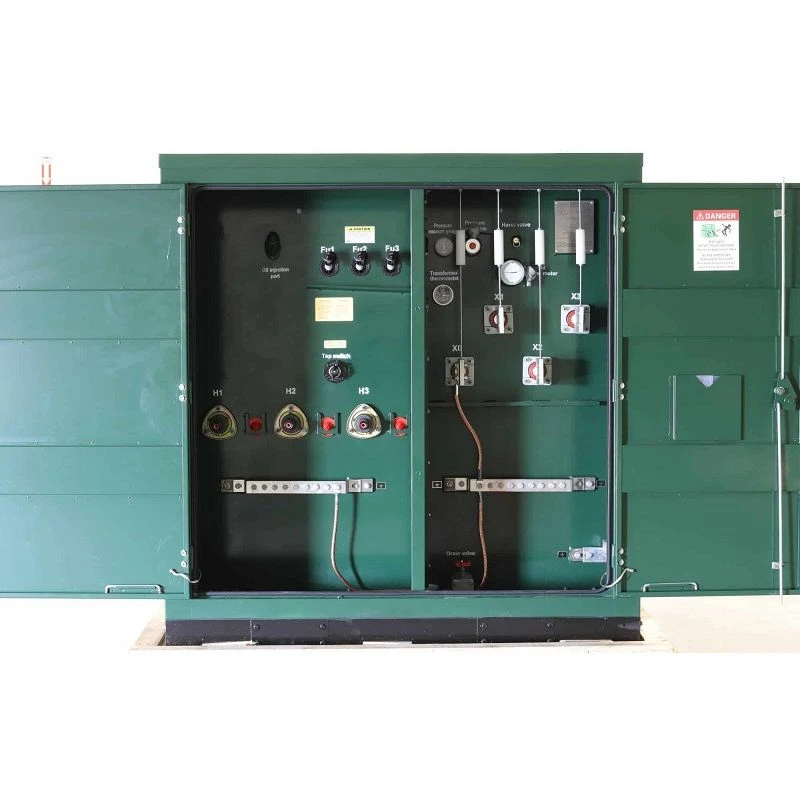

500 kVA Pad-Mounted Distribution Transformer

500 kVA Pad-Mounted Distribution Transformer is prepared for ground-level utility and industrial distribution. It covers 12.47kV / 13.2kV / 24.9kV input networks and 208Y/120V or 480Y/277V output distribution. It uses ONAN (Mineral Oil / FR3) cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

The Standard for Commercial Electrification

The Standard for Commercial Electrification summarizes the protection, safety, or standard-related details that matter during engineering selection.

• The 500 kVA Pad Mounted Transformer is widely regarded as the "workhorse" of commercial power distribution. Sized to power mid-tier loads like grocery stores, elementary schools, or office buildings, this unit balances high capacity with a compact footprint.
• Engineering consistency is critical at this scale. the units are manufactured in strict accordance with ansi c57 12.34.
• Why this matters: This standard dictates specific bushing heights and base dimensions (Figure 1/Figure 2 patterns). By adhering to these geometries, we guarantee Mechanical Interchangeability. If a utility needs to replace an aging 500 kVA unit, the transformer will drop directly onto the existing concrete pad and mate with the existing underground cables without requiring expensive re-cabling or concrete work.

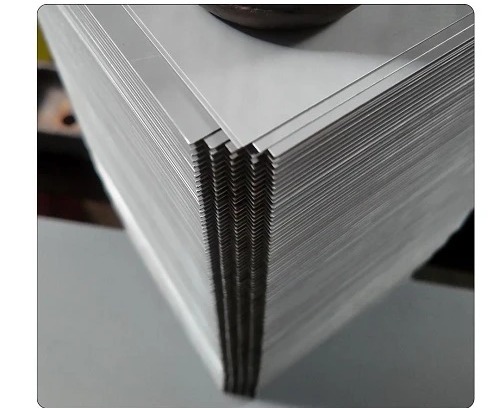

• Workers assembling silicon steel laminations to form the.
• Transformer magnetic core.

Outdoor Security: Tamper-Resistant Engineering

For ground-level utility and industrial distribution, outdoor Security: Tamper-Resistant Engineering is treated as a practical design and selection point rather than generic catalog wording.

• Deploying a high-voltage outdoor pad mounted transformer in public spaces-often accessible to pedestrians-requires a "Fortress" design philosophy.

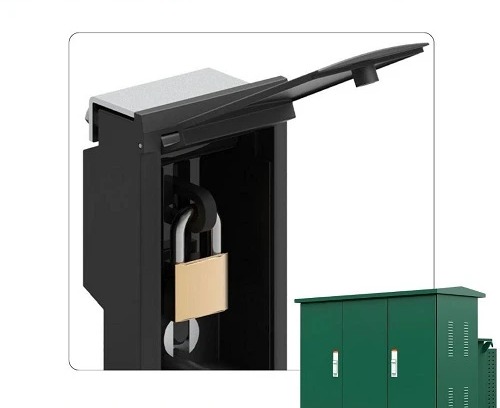

• Penta-head bolt situated inside a deeply recessed pocket for.
• Tamper-resistant security.
• Recessed Lock Pockets: We do not use simple external latches that can be cut with bolt cutters. Instead, the locking mechanism is buried inside a deeply recessed steel pocket.
• Penta-Head Security: The cabinet door is secured by a specialized Penta-Head Bolt (five-sided head). This cannot be turned with standard wrenches or pliers. The door can only be opened by authorized linemen carrying the specific socket tool, ensuring that children or vandals cannot access the high-voltage compartment.

Dual-Layer Protection Logic

Dual-Layer Protection Logic summarizes the protection, safety, or standard-related details that matter during engineering selection.

• At 500 kVA, the fault energy is significant. To prevent tank rupture during a catastrophic failure, the design uses a Two-Stage Fusing Strategy.
• Bay-O-Net Fuses: These are field-replaceable, oil-immersed fuses that handle secondary overloads and low-level faults. They are accessible via a hot-stick, allowing crews to quickly restore power after a minor overload.
• ELSP (Current Limiting) Fuses: Buried deep inside the tank, these backup fuses only operate during a massive internal short circuit. They act faster than the oil pressure can build up, isolating the unit from the grid in less than half a cycle to prevent an explosion.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification Data.
• Standard Compliance.
• ANSI C57.12.34 (Three-Phase Pad Mount).
• 47kV / 13.2kV / 24.9kV.
• 208Y/120V or 480Y/277V.

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

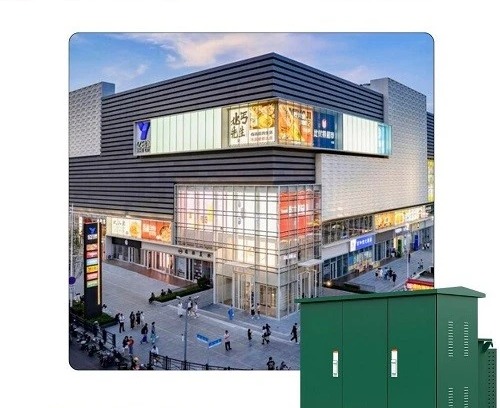

• 500 kVA pad mounted transformer installed behind a.
• Commercial shopping plaza.
• Shopping Plazas: Installed in the rear service lanes of strip malls, stepping down 12.47kV to 208V to power lighting, refrigeration, and POS systems.
• School Campuses: Placed on grass lawns near school buildings. The tamper-proof design and optional FR3 vegetable oil (fire point >360°C) make it the standard choice for student safety.
• Underground Retrofits: Replacing failed units on existing concrete pads where adhering to the ANSI C57.12.34 dimensional footprint allows for a "Plug-and-Play" swap.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
