| Part Number: | 4HV | 2 | 30 | - | 08 |
|---|---|---|---|---|---|
| Explanation: |
Series 4HV - Rotary hand-operated pneumatic valve |
Body Size 2 - Ports 06 or 08 |
Valve Function 10 - Four ports, two positions |
Port Size 06 - 1/8in; body size 2 |

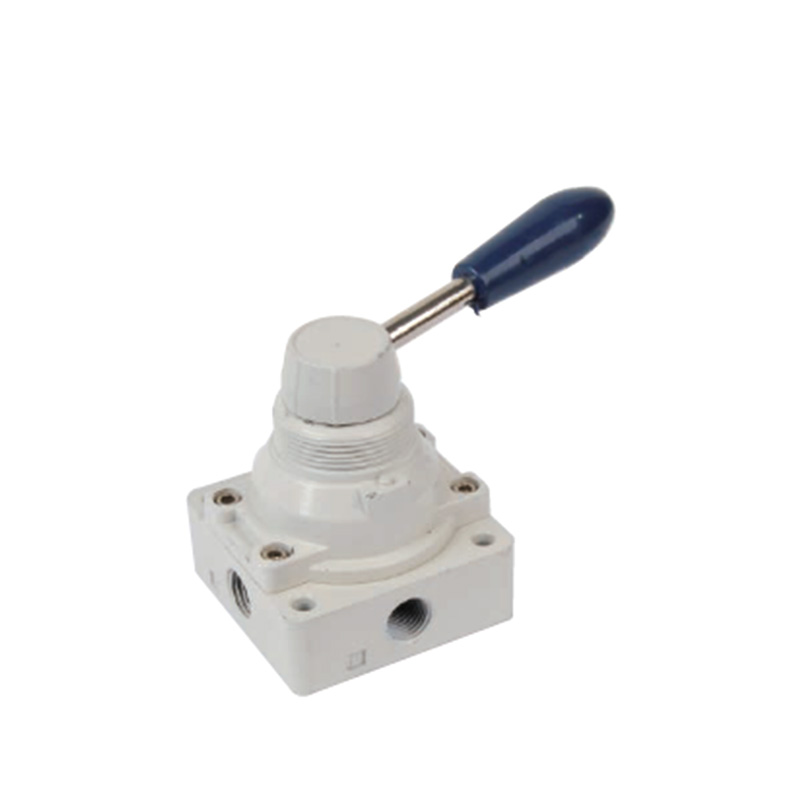

4HV rotary hand valves control compressed-air direction with a manually positioned lever. Choose a four-port, two-position version or a four-port, three-position version with a closed center, then select the body size and threaded connections to match the required flow.
| Code element | Selection |
|---|---|
| Series | 4HV |
| Body size | 2, 3 or 4 |
| Position code replacing □□ | 10: four ports, two positions; 30: four ports, three positions |
| Port suffix | 06: 1/8″; 08: 1/4″; 10: 3/8″; 15: 1/2″; 20: 3/4″ |
For example, 4HV230-08 specifies size 2, three positions and 1/4″ ports. The three-position symbol shows all four ports blocked in the center position.
| Model pattern | Port size | Effective area | Cv |
|---|---|---|---|
| 4HV2□□-06 | 1/8″ | 14mm² | 0.78 |
| 4HV2□□-08 | 1/4″ | 16mm² | 0.89 |
| 4HV3□□-08 | 30mm² | 1.67 | |
| 4HV3□□-10 | 3/8″ | 33mm² | 1.83 |
| 4HV4□□-15 | 1/2″ | 88mm² | 4.89 |
| 4HV4□□-20 | 3/4″ | 95mm² | 5.27 |
| Parameter | All listed models |
|---|---|
| Medium | Air |
| Working pressure | 0-0.8MPa |
| Proof pressure | 15kgf/cm² |
| Working temperature | 5-60°C |
| Lever travel | 90° total; 45° to either side of the center reference |
| Body material | Aluminum alloy |
| Sealing ring material | Nylon |

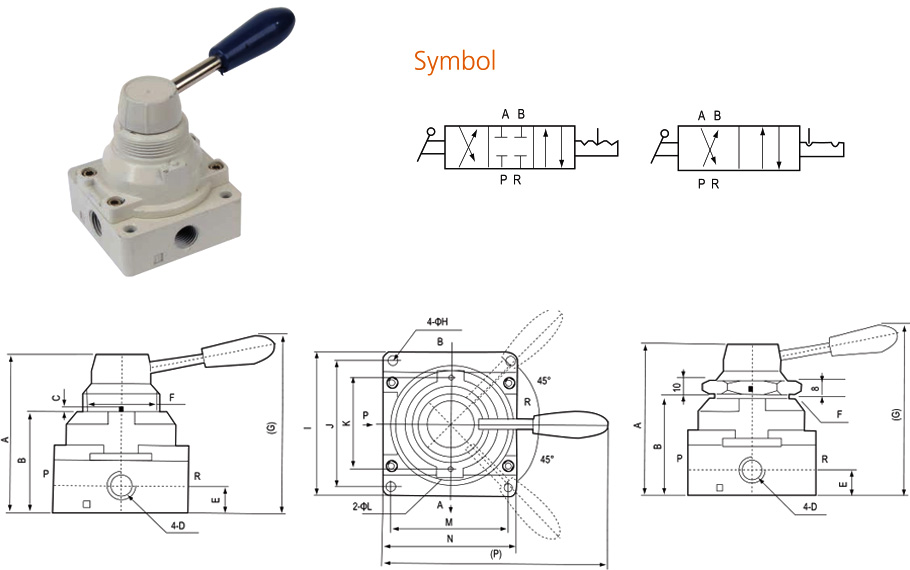

Linear dimensions below are in millimeters. D identifies the port thread, and F identifies the mounting thread. The outline drawing includes the lever envelope and mounting-hole locations.

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4HV2□□-06 | 72.6 | 45 | 1.5 | PT1/8 | 11.5 | M34×1.5 | 92.5 | 5 | 62 | 49 | 40 | 3 | 49 | 62 | 120 |
| 4HV2□□-08 | PT1/4 | ||||||||||||||
| 4HV3□□-08 | 88.5 | 56 | 13.5 | M40×1.5 | 104 | 6.6 | 74 | 62 | 51 | 62 | 74 | 140 | |||
| 4HV3□□-10 | PT3/8 | ||||||||||||||
| 4HV4□□-15 | 110.3 | 72 | 2 | PT1/2 | 18 | M52×1.5 | 126 | 102 | 89 | 64 | 81 | 94 | 160 | ||
| 4HV4□□-20 | PT3/4 |
