4F210 5/2-Way Pneumatic Foot Valves

Series Part Number

Part Number: 4F 210 - 08 LG
Explanation:

Series

4F - Pneumatic foot-operated directional valve series

Valve Type

210 - 5/2-way configuration

Port Size

08 - G1/4

Lock and Guard

Blank - Without lock or guard; omit this code
L - With lock
G - With guard
LG - With lock and guard

Description

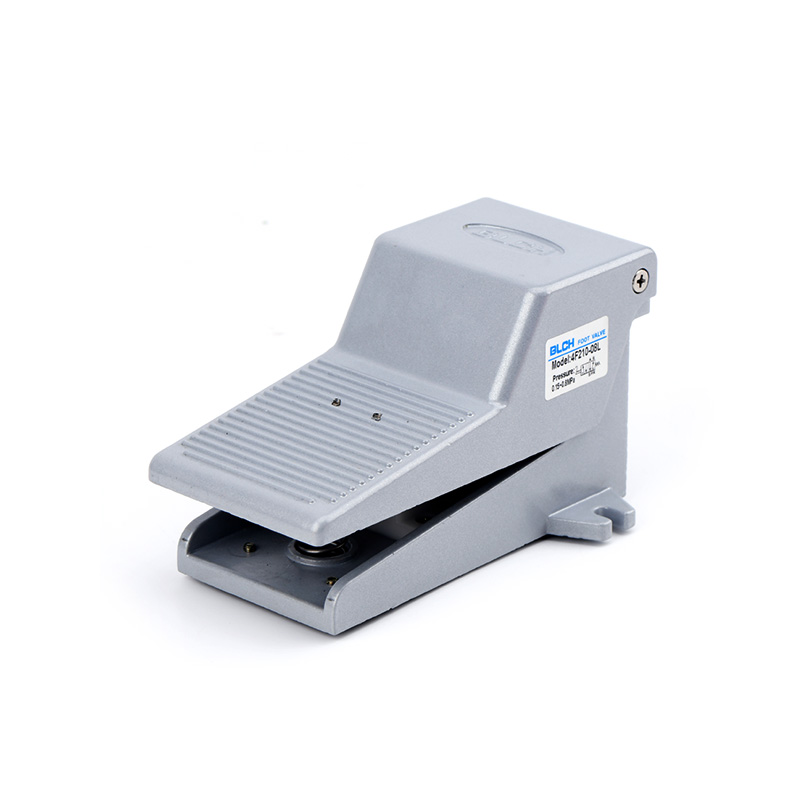

4F210 foot valves provide direct pedal control of a 5/2-way pneumatic circuit through 1/4″ ports. Four configurations combine a standard pedal, a locking mechanism, a plastic guard, or both lock and guard. Select the locking version when the switched position must be maintained for a longer interval.

Configuration selection

ModelSuffixLockPlastic guard
4F210-08BlankWithoutWithout
4F210-08LLWith
4F210-08GGWithoutWith
4F210-08LGLGWith

The 4F210 code identifies the 5/2-way foot valve, and 08 specifies the G1/4″ connection. Choose the complete suffix to match the required lock and guard combination.

Technical specifications

ParameterAll four configurations
Working fluidAir filtered through a 40μm element
ActuationDirect foot operation
Port size1/4″
Ports and positions5 ports, 2 positions
Working pressure0-0.8MPa
Proof pressure1.5MPa
Ambient temperature0-70°C
Body materialAluminum alloy

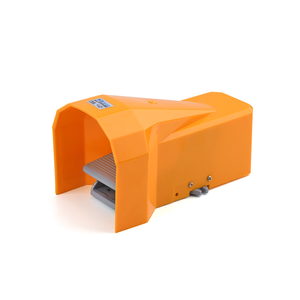

The locking mechanism holds the selected position and can be released when required. Avoid repeated heavy impacts on the pedal or latch. Guarded versions enclose the pedal with a plastic cover.

Mounting dimensions

Unguarded versions show a 157mm assembly length, 99mm base width and 84.4mm height. Guarded versions require a larger installation space, with the outline showing a 245mm overall length and 135mm overall width.

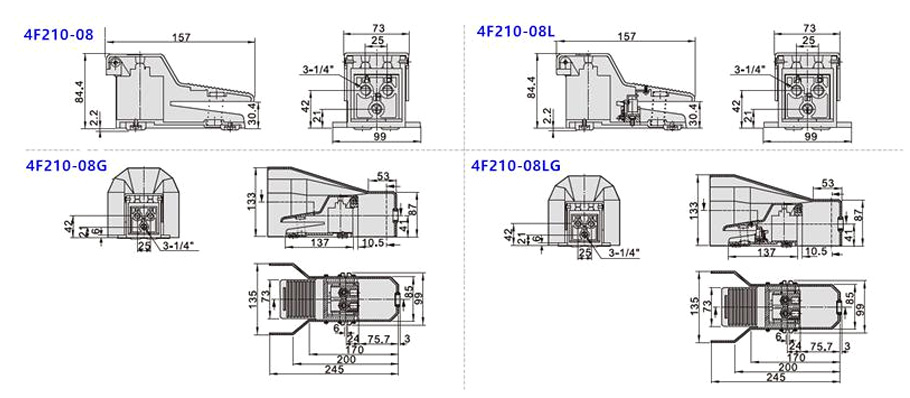

4F210 standard, locking, guarded and locking guarded foot valve dimensions
Installation outlines for 4F210-08, -08L, -08G and -08LG; dimensions in mm.

The attached Pneumatic Components Catalogue includes 4F foot-valve construction and circuit diagrams.
