40mm Metal Push Button Switch

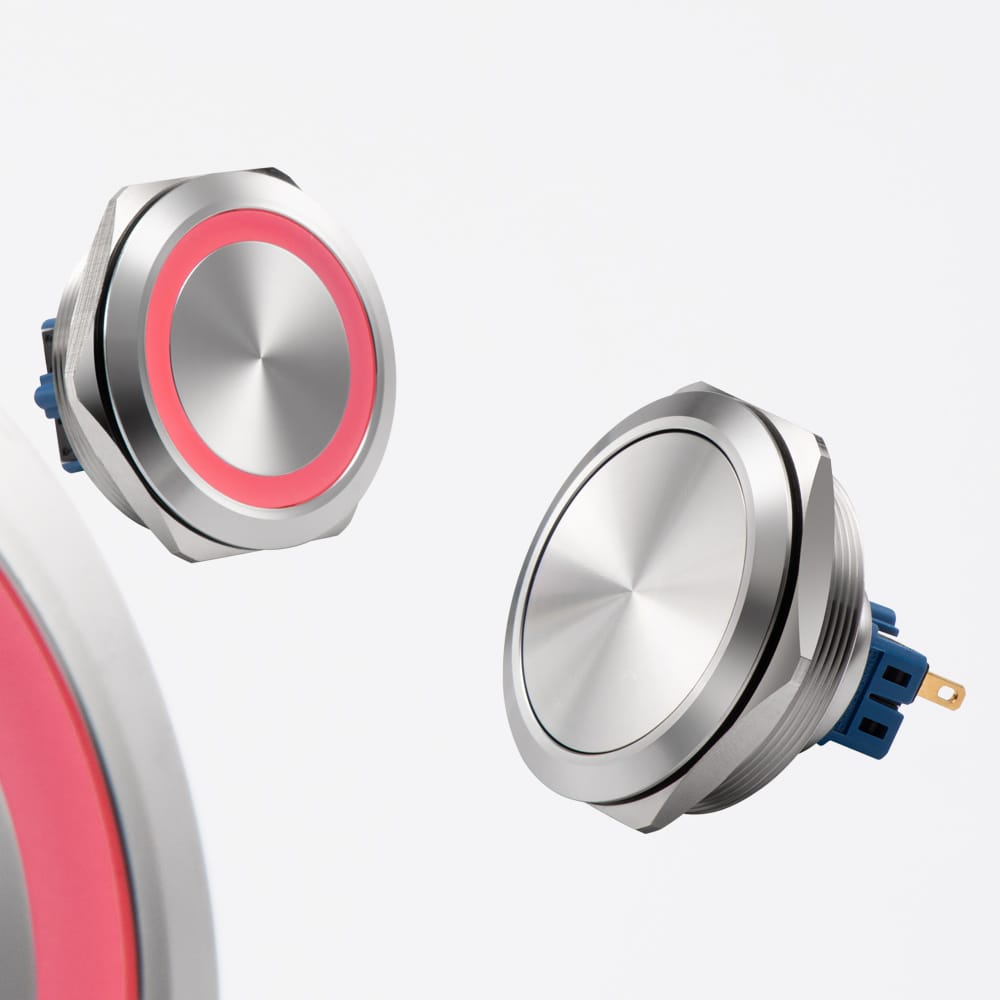

L40 Anti-vandal Switch

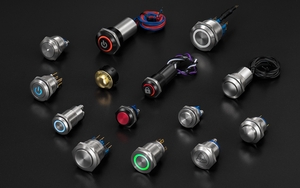

Anti-vandal Switch Customized Service

Series Part Number

Part Number: L40 F C M1 S D W 12V LE
Explanation:

Series

L40 - 40mm

Actuator

F - Flat

Terminal

NONE - Solder-lug (2.8x0.5)
C - Wire-leads 300mm long

Function

M1 - Momentary 1NO1NC
M2 - Momentary 2NO2NC
Z1 - Latching 1NO1NC
Z2 - Latching 2NO2NC

Material

S - Stainless steel

Illumination Style

NONE - Non-illuminated
D - Dot illumination
R - Ring illumination
PS - Power backlit symbol
PY - Ring illum. & Power backlit symbol
X - Backlit Label Kit***

LED-Color

NONE - Non-illuminated
W - White
R - Red
O - Orange
G - Green
B - Blue
Y - Yellow
RO - Red/Orange
RG - Red/Green
RB - Red/Blue
RY - Red/Yellow
OG - Orange/Green
OB - Orange/Blue
OY - Orange/Yellow

Illumination Voltage

NONE - Non-illuminated
1 - Base Voltage**
3.3V
6V
12V
24V
36V
110V
220V

Graphic

NONE - Non-illuminated
LE - Laser etched

Description

The L40 Series is a premier 40mm anti-vandal push button switch designed for high-visibility and maximum durability. Its large 40mm diameter provides a superior ergonomic interface, making it an ideal choice for high-traffic public areas and industrial applications where reliability is paramount. The switch features a robust stainless steel housing and is available with a variety of illumination options.

Key Features

  • Superior Visibility: Large 40mm mounting diameter with optional ring or center dot illumination.
  • Rugged Construction: Rated IP65 for dust and moisture protection, with a stainless steel body.
  • Exceptional Life: Mechanical life of over one million cycles for long-term reliability.
  • Functional Versatility: Available in SPDT or DPDT contact arrangements with multiple functional options.
  • Multiple LED Colors: Wide range of LED colors, including bi-color choices and various voltage options.

Typical Applications

  • Public kiosks and self-service terminals
  • Security and emergency call systems
  • Elevators and transportation hubs
  • Industrial control stations
  • Outdoor parking meters and dispensers

Order Configuration

L40 Series order code

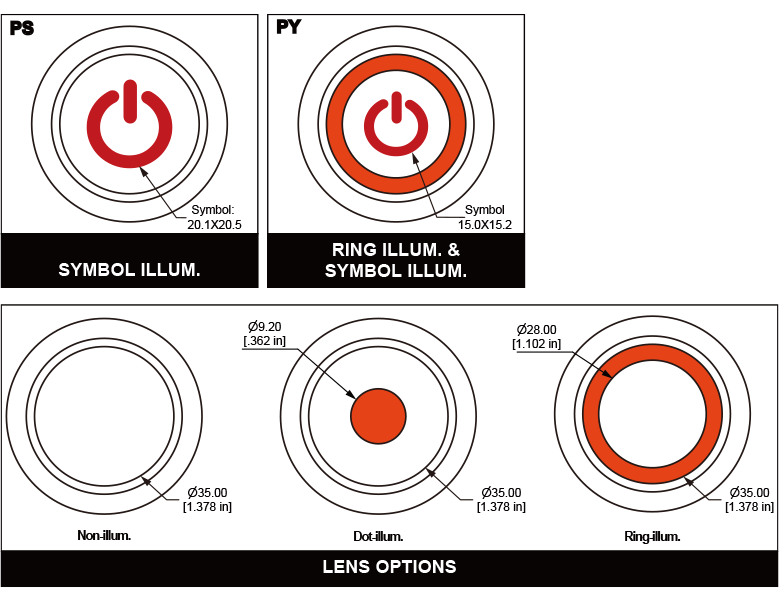

Illumination & Layout Options

L40 Series illumination options

Schematics

L40 Series schematic

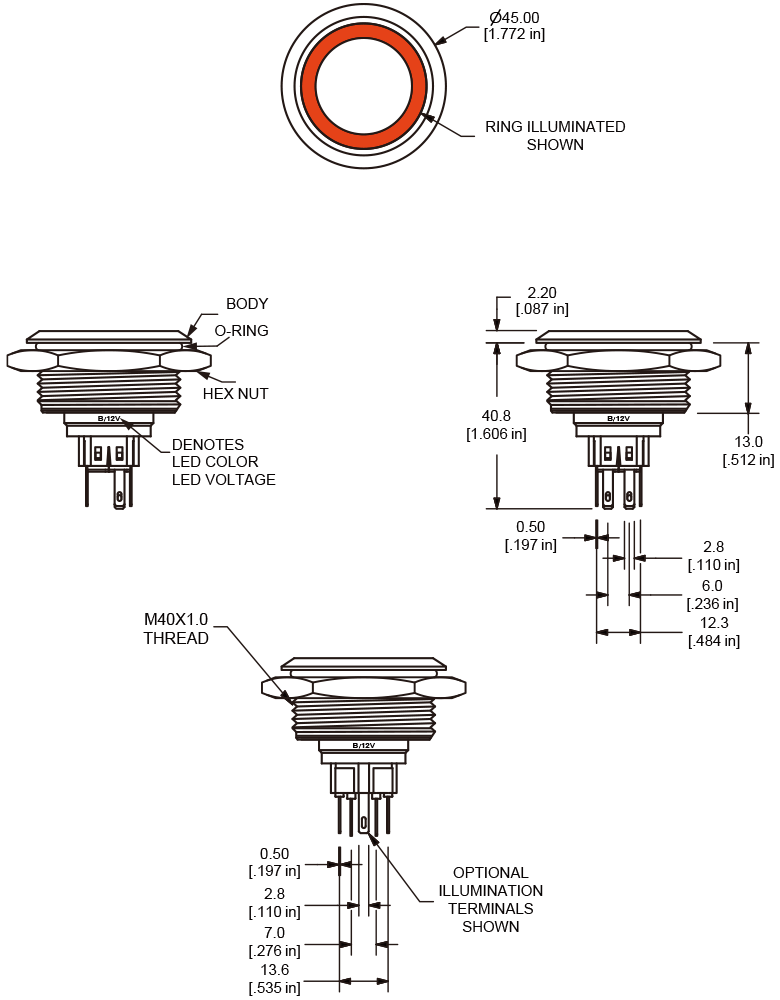

Dimensions

L40 Series dimensions
