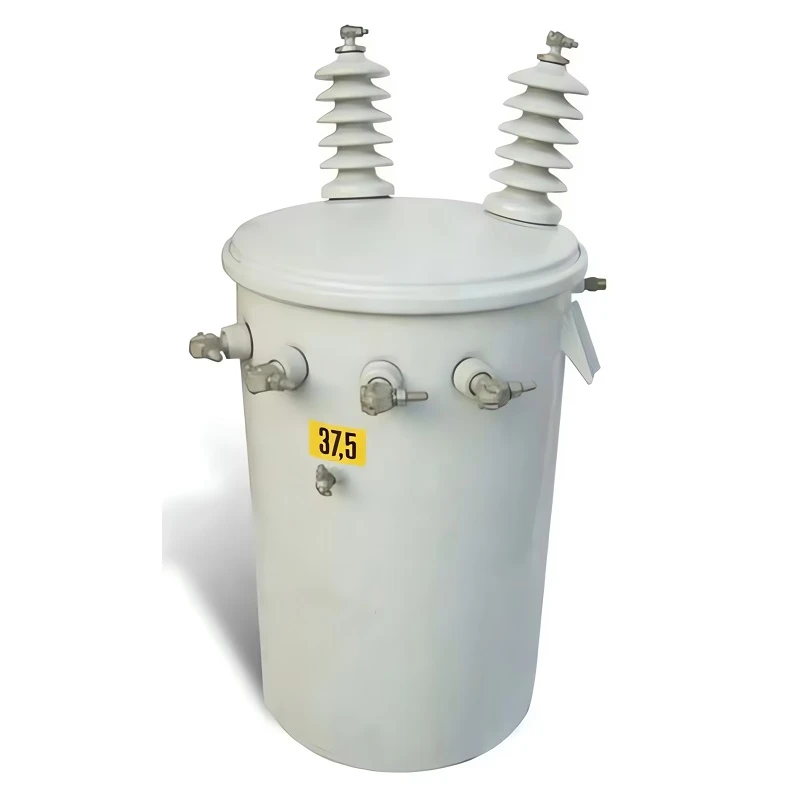

37.5 kVA Pole-Mounted Distribution Transformer

37.5 kVA Pole-Mounted Distribution Transformer is prepared for overhead distribution service. It covers 7.2kV / 11kV / 12.47kV / 13.8kV input networks and 120/240V (3-Wire) output distribution. It uses ONAN cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

The "Goldilocks" Size for Modern Load Profiles

For overhead distribution service, the "Goldilocks" Size for Modern Load Profiles is treated as a practical design and selection point rather than generic catalog wording.

• The 37.5 KVA Pole-Mounted Transformer occupies a strategic niche in North American-style distribution grids. It exists specifically to bridge the wide gap between the standard 25 kVA unit and the larger 50 kVA unit. For modern luxury residences or small commercial outposts where 25 kVA is marginally insufficient (risking overload trips) but 50 kVA is fiscally wasteful, this single phase pole mounted transformer offers the mathematically optimal capacity.
• In international markets where the 30kva transformer is the standard IEC rating, the 37.5 kVA unit serves as a robust "High-Headroom" alternative. When deployed to replace a legacy 30 kVA unit, it provides an automatic 25% capacity boost. This extra buffer is critical for future-proofing grid assets against the rising penetration of Level 2 EV chargers, which often push 30 kVA units beyond their thermal limits.

Insulation Chemistry: Thermally Upgraded Life

For overhead distribution service, insulation Chemistry: Thermally Upgraded Life is treated as a practical design and selection point rather than generic catalog wording.

• Longevity in a single pole mounted transformer is dictated by how well the paper insulation survives heat. the design uses Thermally Upgraded Kraft Paper (e.g., Diamond Pattern Epoxy paper) for the layer insulation.
• Chemical Stability: Unlike standard cellulose which degrades rapidly above 105°C, this chemically modified paper is rated for a continuous 65°C Average Winding Rise (with a hottest-spot allowance of 80°C).
• Overload Endurance: This material modification prevents the paper from becoming brittle during temporary heavy loading cycles. Practically, this means the transformer can sustain a 150% load for up to 4 hours during peak winter heating demands without losing significant life expectancy.

11kV Insulation Coordination

For overhead distribution service, 11kV Insulation Coordination is treated as a practical design and selection point rather than generic catalog wording.

• Operating as an 11kv pole mounted transformer (or 12.47kV / 13.8kV), the High-Voltage dielectric design is focused on impulse survival.
• 95 kV BIL Rating: The coil geometry is engineered to withstand a Basic Impulse Level (BIL) of 95 kV. This is achieved through interlayer grading, where the insulation thickness increases towards the line-end of the winding.
• Creepage Distance: To prevent tracking in polluted environments (e.g., road salt spray), the design uses Polymer or Porcelain Bushings with extended creepage skirts, ensuring the unit resists flashover even when the surface is coated in conductive grime.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification Data.
• 5 kVA (ANSI Standard).
• Upgrades 30 kVA loads.
• 2kV / 11kV / 12.47kV / 13.8kV.
• 95 kV (Standard for 15kV Class).

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• 5 kVA pole transformer supplying power to a large luxury estate.
• Estate Residential: Powering large single-family homes (3000+ sq. ft) with central air conditioning and swimming pool pumps, where 25 kVA would cause voltage flicker.
• Small Commercial: Dedicated supply for a roadside gas station or telecom signal booster station.
• EV Charging Nodes: Supporting a cluster of residential chargers where the load profile is continuous and heavy.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
