315 kVA Pad-Mounted Distribution Transformer

315 kVA Pad-Mounted Distribution Transformer is prepared for ground-level utility and industrial distribution. It covers 12.47kV / 13.8kV / 24.9kV / 34.5kV input networks and 208Y/120V or 400Y/230V output distribution. It uses ONAN (Mineral Oil or FR3) cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

Metric Capacity for Modern Grids

Metric Capacity for Modern Grids provides selection data that helps compare ratings, voltage classes, and installation requirements.

• The 315 kVA Pad Mounted Transformer serves as the versatile power hub for commercial districts and residential subdivisions. Designed to sit unobtrusively on a concrete slab, this tamper-proof "Green Box" eliminates the need for fenced-off enclosures, making it safe for installation in high-traffic public areas.
• While legacy specifications often call for a 300 kva pad mount transformer, selecting the 315 kVA IEC-metric rating offers a strategic "Thermal Life Extension." By deploying a 315 kVA unit to serve a 300 kVA load, the transformer operates continuously at roughly 95% capacity rather than 100%. This slight under-loading reduces the internal winding temperature rise, significantly slowing down the degradation of the insulation paper and extending the asset's operational lifespan by years compared to a fully loaded 300 kVA unit.

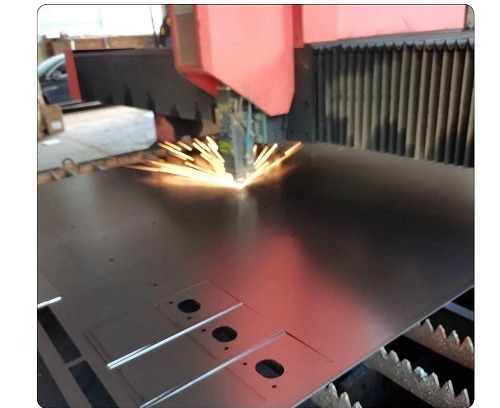

• Laser cutting machine slicing steel sheets for transformer.
• Cabinet fabrication.

Corrosion Defense: The "Self-Healing" Base

For ground-level utility and industrial distribution, corrosion Defense: The "Self-Healing" Base is treated as a practical design and selection point rather than generic catalog wording.

• For installations in seaside resorts or industrial zones, standard mild steel tanks typically fail from the bottom up due to "Cabinet Rot." We engineer the cabinets to meet the rigorous requirements of ansi c57 12.29.
• Stainless steel hybrid base on transformer tank to prevent.
• Corrosion and rust.
• Installation Reality: When a transformer is dragged onto a concrete pad during installation, the paint on the bottom sill is inevitably scratched. On mild steel, this leads to immediate rust.
• The Hybrid Solution: We fabricate the tank base and sill using 304L Stainless Steel. Even if the paint is scraped off down to the bare metal, the stainless steel naturally passivates (forms a protective oxide layer), preventing rust from spreading. This ensures the oil containment integrity remains intact for decades, even in salt-laden coastal atmospheres.

Dead-Front Safety and Loop Feed

Dead-Front Safety and Loop Feed summarizes the protection, safety, or standard-related details that matter during engineering selection.

• Safety is the defining characteristic of transformers pad mounted in public spaces.
• Dead-Front Architecture: The high-voltage compartment features shielded, insulated elbow connectors. There is no exposed live metal. Even if an operator accidentally touches the front plate when the door is open, there is no risk of electrocution.
• Loop Feed Capability: The HV side typically includes six bushings (Loop Feed). This allows the 315 kVA unit to act as a "pass-through" node in a distribution ring. If the upstream cable fails, grid operators can switch the feed direction using the internal 4-Position Load Break Switch, restoring power in minutes.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification / Options.
• 315 kVA (IEC Metric).
• Covers 300 kVA load profiles.
• 47kV / 13.8kV / 24.9kV / 34.5kV.
• 208Y/120V or 400Y/230V.

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• 315 kVA pad mounted transformer powering a coastal.
• Condominium complex.
• Retail Chains: Perfectly sized for standalone pharmacies, grocery stores, or fast-food outlets where the load profile (refrigeration + HVAC) sits squarely in the 300-315 kVA range.
• Zero-Lot-Line Developments: Used in dense urban projects where the transformer must be placed immediately adjacent to the building wall. The compact footprint and FR3 fluid option allow for reduced fire clearance distances, maximizing usable land.
• Coastal Condominiums: Installing the stainless-steel hybrid unit in beachfront properties to prevent the salt-air corrosion that destroys standard painted steel cabinets within 5 years.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
