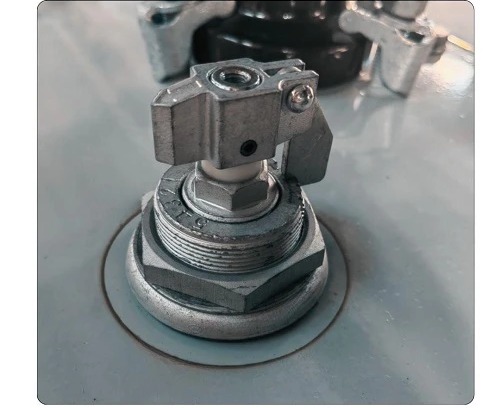

315 kVA Oil-Immersed Distribution Transformer

315 kVA Oil-Immersed Distribution Transformer is specified for 315 kVA oil-immersed distribution service. It steps 11kV / 20kV / 33kV networks to 400V / 415V loads. It uses ONAN cooling. Engineering details address optimized for Grid Efficiency and Low Losses, construction, application context, and electrical data for project selection.

Optimized for Grid Efficiency and Low Losses

For this 315 kVA rating, optimized for grid efficiency and low losses affects how the transformer is selected, protected, and operated in the field.

• Is widely recognized as the "golden standard" for medium-scale commercial electrification.
• At this capacity level, energy efficiency becomes a primary driver for procurement.
• The unit is engineered to exceed standard efficiency benchmarks, focusing on minimizing the Total Cost of Ownership (TCO) over its 30-year lifespan.
• As a flagship model within the lineup of high-performance oil filled distribution transformers, this rating addresses the critical need for reducing "technical losses" in the grid.
• By optimizing the magnetic circuit, we ensure that the transformer consumes minimal power when idling (no-load condition), making it an economically superior choice for buildings with fluctuating occupancy, such as office towers or hotels.

Advanced Core Construction: Step-Lap Technology

The advanced core construction: step-lap technology details below highlight design choices that matter during continuous distribution service.

• To achieve these low-loss figures, the design uses high-grade Cold Rolled Grain Oriented (CRGO) silicon steel.
• Unlike traditional butt-lap stacking, the 315 kVA core is assembled using the Step-Lap Stacking Method.
• Noise Reduction: The step-lap joint smoothens the magnetic flux path at the corners of the core.
• This significantly reduces magnetostriction, resulting in a hum level often lower than 55dB, which is crucial for urban installations.
• Lower Excitation Current: The precision-cut laminations reduce the reluctance of the magnetic path, directly lowering the no-load current and improving the overall power factor of the system.

Thermal Stability & Overload Capacity

These thermal stability and overload capacity points connect the electrical rating with grid conditions, downstream equipment, and maintenance expectations.

• While efficiency is key, durability is non-negotiable.
• The coils are wound with high-purity electrolytic copper (or aluminum), insulated with diamond-patterned epoxy paper (DDP).
• This insulation creates a rigid, solid block after curing, ensuring that the oil filled distribution transformers can withstand the mechanical stresses of external short circuits without winding deformation.
• The oil circulation channels are computer-designed to prevent "hot spots" deep inside the windings.

Key Applications

Application guidance links the transformer rating with the substations, industrial loads, and site conditions where it is normally used.

• The 315 kVA capacity is the ideal fit for: 1.
• Commercial Real Estate: Main power supply for mid-sized shopping plazas or residential high-rises.
• Public Infrastructure: Powering water treatment pumps or large street lighting control centers.
• Renewable Integration: Acting as a step-up transformer for medium-sized solar PV arrays (ground-mounted).

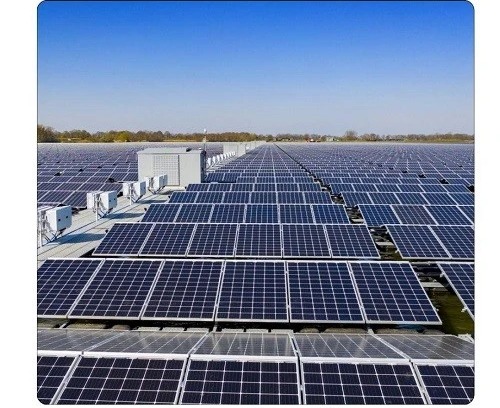

• 315 kVA step-up transformer installed in a ground-mounted solar PV farm.

Electrical and Mechanical Data

The electrical data summarizes the main values needed for project comparison and project comparison.
