30mm Metal Push Button Switch

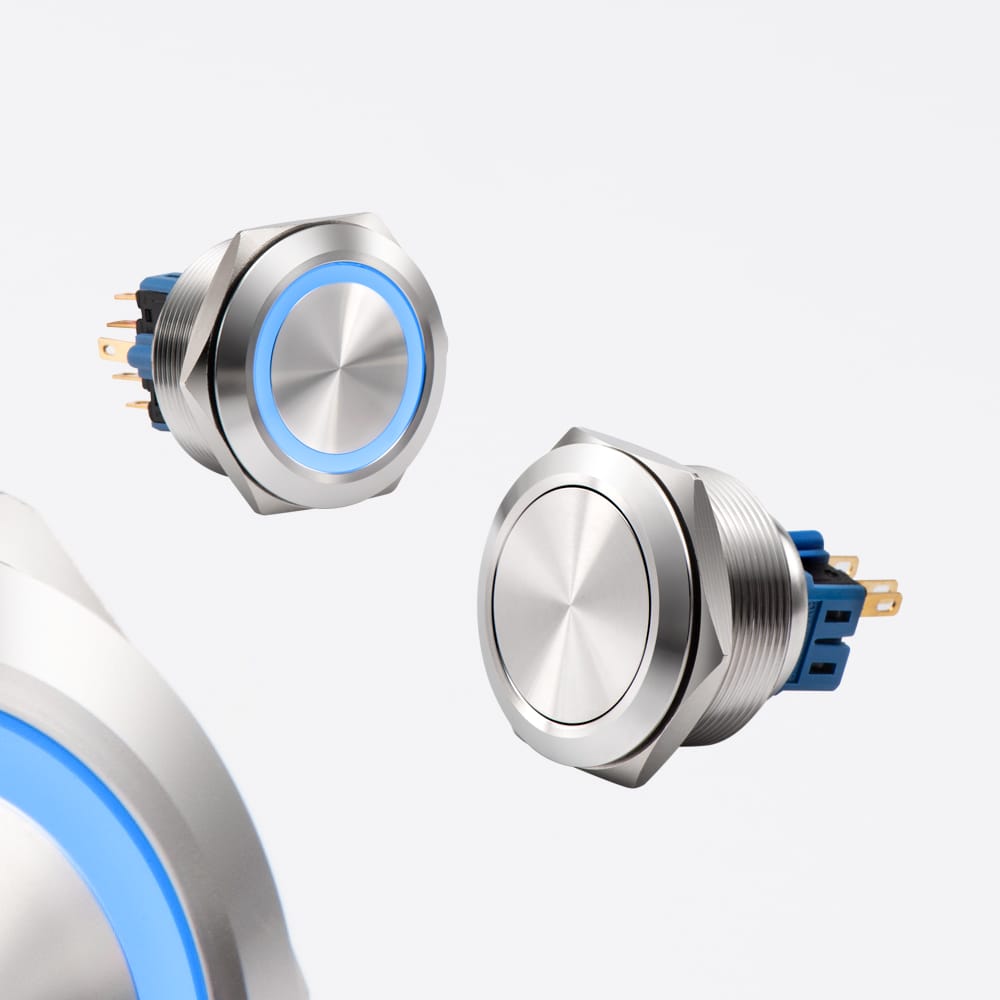

L30 Anti-vandal Switch

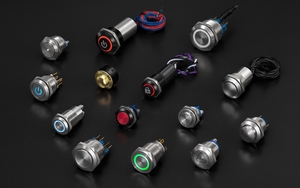

Anti-vandal Switch Customized Service

Series Part Number

Part Number: L30 F C M1 S D W 12V LE
Explanation:

Series

L30 - 30mm

Actuator

F - Flat

Terminal

NONE - Solder-lug (2.8x0.5)
C - Wire-leads 300mm long

Function

M1 - Momentary 1NO1NC
M2 - Momentary 2NO2NC
Z1 - Latching 1NO1NC
Z2 - Latching 2NO2NC

Material

S - Stainless steel

Illumination Style

NONE - Non-illuminated
D - Dot illumination
R - Ring illumination
PS - Power backlit symbol
PY - Ring illum. & Power backlit symbol
X - Backlit Label Kit***

LED-Color

NONE - Non-illuminated
W - White
R - Red
O - Orange
G - Green
B - Blue
Y - Yellow
RO - Red/Orange
RG - Red/Green
RB - Red/Blue
RY - Red/Yellow
OG - Orange/Green
OB - Orange/Blue
OY - Orange/Yellow

Illumination Voltage

NONE - Non-illuminated
1 - Base Voltage**
3.3V
6V
12V
24V
36V
110V
220V

Graphic

NONE - Non-illuminated
LE - Laser etched

Description

The L30 Series is a high-performance 30mm anti-vandal push button switch designed for applications requiring a large, durable, and visible interface. It features a flat actuator and robust stainless steel construction, ensuring reliable operation even in high-traffic or harsh environments. The series offers exceptional versatility with multiple illumination and functional configurations.

Key Features

  • High Protection: IP65 rated for excellent dust and moisture resistance.
  • Illumination Options: Available as non-illuminated, or with ring and center dot illumination in various colors (including bi-color options).
  • Multiple Functions: SPDT or DPDT contact arrangements with multiple switch functions.
  • Ease of Installation: Solder lug termination, with optional pre-wired leads to reduce assembly time.
  • Longevity: Boasts a mechanical life of up to one million cycles.

Typical Applications

  • Kiosks and ticket dispensers
  • Security and emergency devices
  • Industrial control panels
  • Audio/visual equipment
  • Medical diagnostic devices

Order Configuration

L30 Series order code

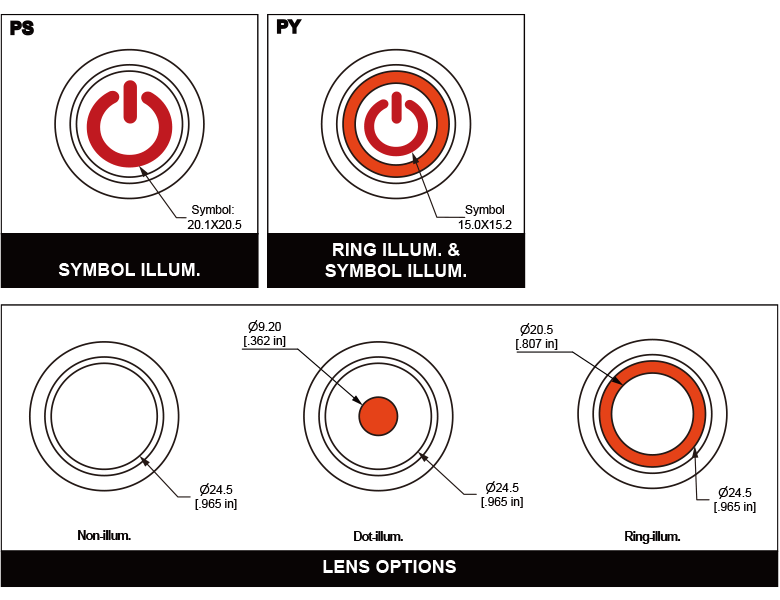

Illumination & Layout Options

L30 Series illumination options

Schematics

L30 Series schematic
