3000 kVA Pad-Mounted Distribution Transformer

3000 kVA Pad-Mounted Distribution Transformer is prepared for ground-level utility and industrial distribution. It covers 13.8kV / 24.94kV / 34.5kV (Loop Feed) input networks and 480V / 600V / 4160V output distribution. It uses KNAN / KNAF cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

High-Density Power Distribution Node

For ground-level utility and industrial distribution, high-Density Power Distribution Node is treated as a practical design and selection point rather than generic catalog wording.

• For industrial complexes and hyperscale data centers requiring 3 MVA of power, air-cooled solutions often fail due to thermal throttling. This 3000 kVA Pad Mounted Transformer adopts a liquid-filled design (Mineral Oil or FR3 Fluid), leveraging superior thermal conductivity to manage the immense heat generated at full load. It delivers the capacity of a substation in a compact, ground-level footprint, eliminating the need for expansive fenced-in yards.

Critical Foundation: The Transformer Mounting Pad

For ground-level utility and industrial distribution, critical Foundation: The Transformer Mounting Pad is treated as a practical design and selection point rather than generic catalog wording.

• Installing a unit of this magnitude-weighing approximately 8,500 kg to 10,000 kg-requires precise civil engineering. The interaction between the unit's base and the transformer mounting pad is the single most critical factor for long-term structural integrity.

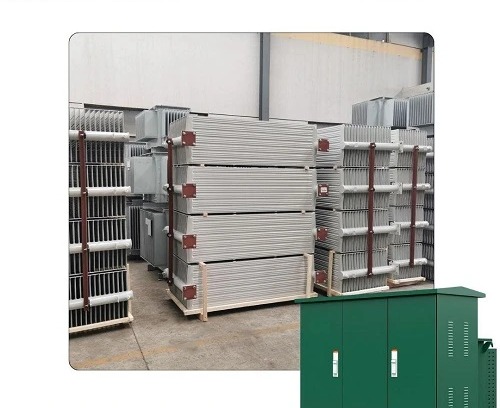

• Detachable panel radiators on transformer side for natural.
• Convection cooling.
• Load Distribution: The concrete transformer mounting pad must be engineered to withstand not just the static weight, but the dynamic forces during energization. A poorly leveled pad can lead to tank warping and gasket leaks over time.
• Cable Alignment: At 3000 kVA, the low-voltage output involves massive copper busbars. The window opening in the transformer mounting pad must align perfectly with the transformer's throat to ensure zero stress on the cable terminations.
• Seismic Anchoring: For zones prone to ground movement, the unit features external cleats designed to bolt directly into the transformer mounting pad, preventing shifting during seismic events.

Cooling and Efficiency (KNAN / KNAF)

For ground-level utility and industrial distribution, cooling and Efficiency (KNAN / KNAF) is treated as a practical design and selection point rather than generic catalog wording.

• Unlike smaller units, a 3000 kVA transformer generates significant core and winding heat.
• Corrugated vs. Radiators: While smaller units use corrugated walls, this model is typically equipped with detachable panel radiators to maximize surface area for natural convection (KNAN).
• Overload Capability: The tank design allows for the optional installation of cooling fans (KNAF), providing a temporary capacity boost (up to 15-25%) during peak demand spikes without overheating.

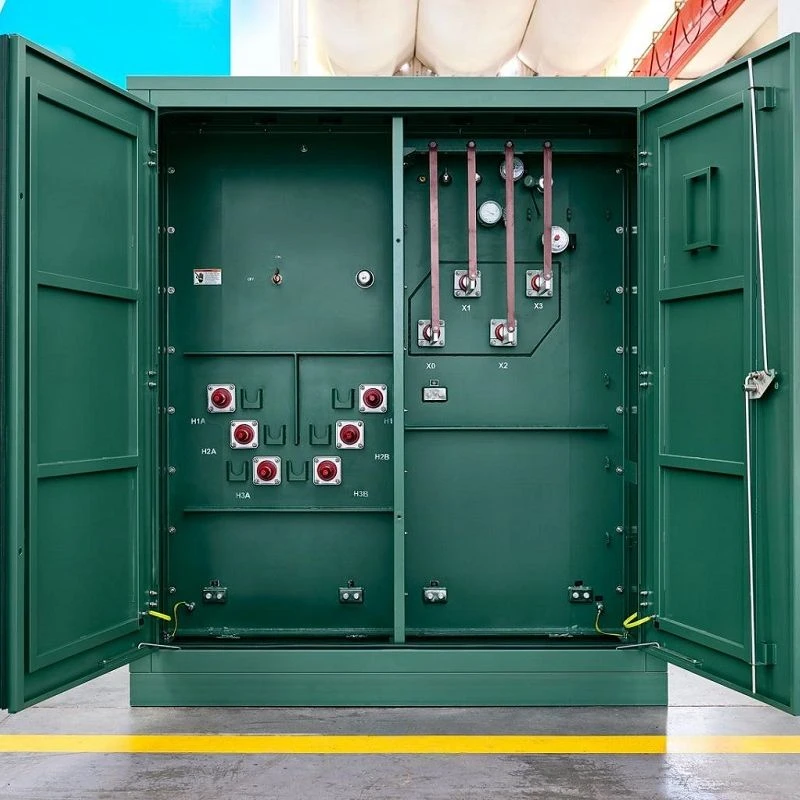

Dead-Front Safety Construction

Dead-Front Safety Construction summarizes the protection, safety, or standard-related details that matter during engineering selection.

• Despite its high power rating, this unit maintains the safety standards of the pad-mount family.
• Tamper-Proof: The cabinet is secured with penta-head bolts and padlock recesses, ensuring no unauthorized access to live parts.
• Compartmentalization: High and low voltage compartments are separated by a rigid metal barrier, protecting operators during routine maintenance tasks like oil sampling or gauge reading.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Data / Configuration.
• KNAN (Natural) / KNAF (Forced Air Optional).
• Mineral Oil / FR3 (Vegetable Oil).
• 8kV / 24.94kV / 34.5kV (Loop Feed).
• 480V / 600V / 4160V.

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• 3000 kVA pad mounted step-up transformer installed at a.
• Utility-scale solar farm.
• Crypto Mining & Data Centers: Provides high-density power feed (4000A+) to server containers, where space is premium and outdoor installation is mandatory.
• Solar Collector Step-Up: Aggregates power from multiple string inverters, stepping up voltage (e.g., 600V to 34.5kV) for grid transmission.
• Industrial Manufacturing: Powers heavy motor loads and pumps in chemical plants or steel mills where indoor substation space is unavailable.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
