3000 kVA Cast Resin Dry Type Transformer

3000 kVA Cast Resin Dry Type Transformer is prepared for indoor cast-resin transformer duty. It covers 10kV / 11kV / 33kV / 35kV input networks and 690V / 3.3kV / 6.6kV (Recommended) output distribution. It uses AN (Base) / AF (Forced Air) cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.

Fire-Safe Engineering for Critical Zones

For indoor cast-resin transformer duty, fire-Safe Engineering for Critical Zones is treated as a practical design and selection point rather than generic catalog wording.

• For industrial facility managers, deploying a 3000 kVA Dry Type Transformer is often a strategic decision to eliminate the fire risks associated with oil-filled units in critical process areas. Rather than building expensive fire-suppression vaults for a liquid-filled unit, this air-cooled solution can be installed directly adjacent to high-value machinery or within populated industrial zones.
• As a premium dry power transformer, this unit is engineered to operate without flammable dielectrics. Its primary role is to serve as a safe, maintenance-free power node in environments where a transformer explosion or oil leak would be catastrophic, such as underground mines or offshore platforms.

Voltage Strategy: Arc Flash Mitigation

For indoor cast-resin transformer duty, voltage Strategy: Arc Flash Mitigation is treated as a practical design and selection point rather than generic catalog wording.

• Why do engineers rarely specify 3000 kVA at 400V? It is not just about cable thickness; it is about safety.
• At 400V, this unit pushes over 4300 Amps. In the event of a fault, the Arc Flash Incident Energy at the low-voltage terminals would be massive, posing a lethal risk to maintenance personnel even with PPE.
• Therefore, this cast resin distribution transformer is typically configured for 690V or 3.3kV/6.6kV outputs. By stepping up the secondary voltage, we reduce the rated current (e.g., down to ~260A at 6.6kV). This drastically lowers the potential fault energy, allowing for the use of standard, safer switchgear protection ratings without requiring specialized high-power breakers.

Advanced Casting: Internal Cooling Ducts

For indoor cast-resin transformer duty, advanced Casting: Internal Cooling Ducts is treated as a practical design and selection point rather than generic catalog wording.

• Scaling up to a cast resin dry type transformer of this size introduces a critical thermal challenge: getting heat out of the deep layers of the winding. A solid block of resin is a poor thermal conductor.
• To solve this, the 3000 kVA coils are not cast as a solid cylinder. Instead, the design uses Internal Cooling Ducts. During the casting process, specialized molds create vertical air channels inside the high-voltage winding itself. This geometry splits the coil into concentric segments, doubling the surface area available for heat exchange. This ensures that the core temperature remains uniform, preventing "hot spots" that degrade insulation life.

Compliance: IEC 60076-11 Routine Tests

Compliance: IEC 60076-11 Routine Tests summarizes the protection, safety, or standard-related details that matter during engineering selection.

• Reliability at 3 MVA is non-negotiable. Every unit undergoes a rigorous quality gate strictly adhering to iec 60076 11.

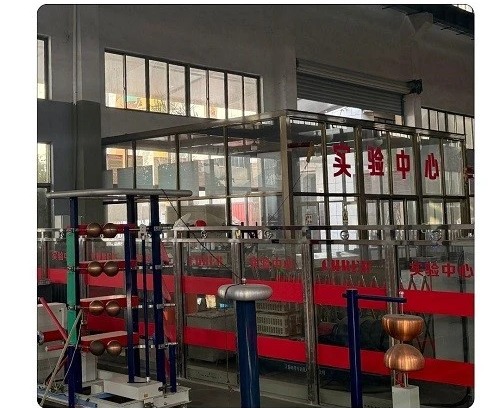

• Factory lightning impulse testing verifying 3000 kVA dry.
• Transformer insulation.
• Partial Discharge (PD) Verification: Unlike oil units, dry transformers cannot self-heal. We conduct the induced AC voltage withstand test with PD measurement. The acceptance criterion is stricter than the standard: we mandate ≤ 10 pC at 1.3 times the rated voltage.
• Impulse Testing: To verify the winding's ability to withstand grid switching surges, the unit is subjected to a Lightning Impulse test (e.g., 75 kV or 95 kV peak), ensuring the resin structure does not flashover under transient stress.

Technical Data Sheet

Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.

• Technical Parameter.
• Specification Data.
• 10kV / 11kV / 33kV / 35kV.
• 690V / 3.3kV / 6.6kV (Recommended).
• ~2510 A (at 690V) / ~262 A (at 6.6kV).
• Dry power transformer.

Typical Application Context

Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• 3000 kVA dry type transformer installed in electric ferry for.
• Marine propulsion.
• Marine Propulsion: Installed inside the hull of electric ferries to power 690V propulsion motors. The self-extinguishing resin is mandatory for maritime safety compliance (DNV/Lloyd's standards).
• Underground Mining: Powering 3.3kV ventilation fans deep underground where ventilation is limited and fire smoke is fatal.
• Refinery Drives: Serving as a dedicated feed for large Variable Frequency Drives (VFDs) in hazardous zones (Zone 2) where oil-filled equipment is prohibited.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
