2W Brass Fluid Solenoid Valves with AC and DC Coils

Series Part Number

Part Number: 2W 040 - 10
Explanation:

Series

2W - Brass 2/2 solenoid valve; this example identifies a listed normally closed base model. Specify coil voltage and electrical connection separately.

Orifice

025 - 2.5mm; port code 06 or 08
040 - 4mm; port code 10
160 - 16mm; port code 15
200 - 20mm; port code 20
250 - 25mm; port code 25
350 - 35mm; port code 35
400 - 40mm; port code 40
500 - 50mm; port code 50

Port Size

06 - 1/8in; orifice code 025
08 - 1/4in; orifice code 025
10 - 3/8in; orifice code 040
15 - 1/2in; orifice code 160
20 - 3/4in; orifice code 200
25 - 1in; orifice code 250
35 - 1-1/4in; orifice code 350
40 - 1-1/2in; orifice code 400
50 - 2in; orifice code 500

Description

2W brass solenoid valves provide two-position, two-port fluid switching. The normally closed models below cover 2.5mm to 50mm orifices, with port sizes from 1/8″ to 2″. Choose the seal material, coil voltage and electrical connection for the intended medium.

Normally closed model selection

ModelOrificeCvPortFluid viscosityMaximum pressure limit
2W025-062.5mm0.231/8″Below 20cSt10kgf/cm²

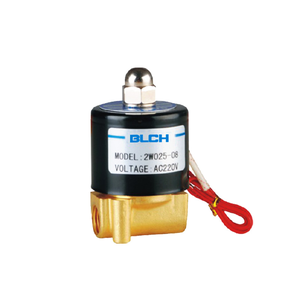

2W025-081/4″
2W040-104mm0.63/8″
2W160-1516mm4.81/2″Below 50cSt10.5kgf/cm²
2W200-2020mm7.63/4″

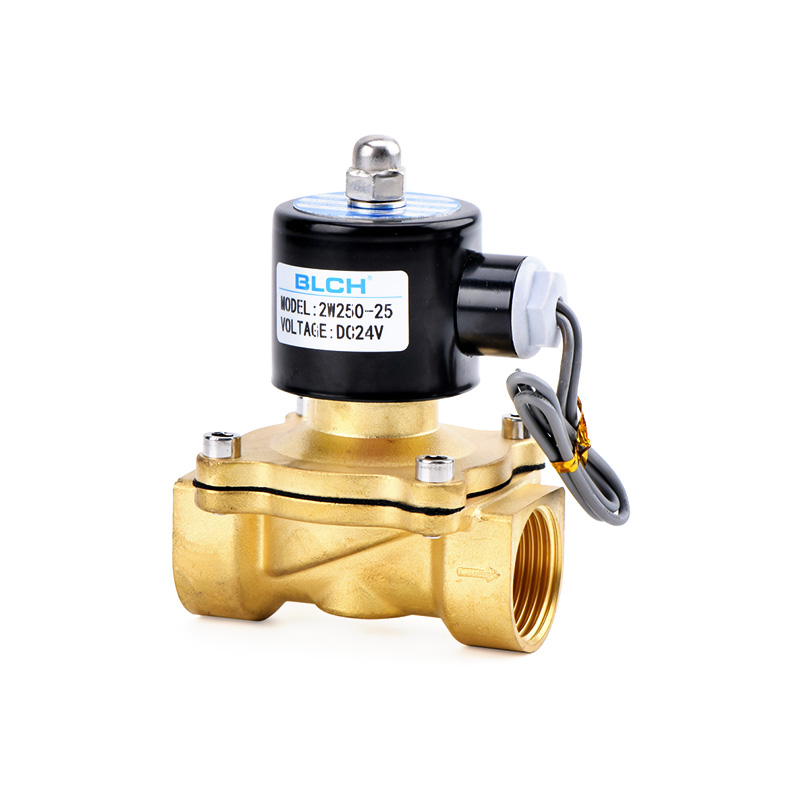

2W250-2525mm121″
2W350-3535mm241-1/4″
2W400-4040mm291-1/2″
2W500-5050mm482″

Operating conditions and materials

ParameterSpecification
ActuationDirect acting
Rest state of listed modelsNormally closed
Water operating pressure0-7kgf/cm²
Air operating pressure
Oil operating pressure0-5kgf/cm²
Gas operating pressure0-7kgf/cm²
Working temperature5-80°C
Voltage tolerance±10%
BodyBrass
Seal optionsNBR, EPDM or VITON

The maximum pressure limits in the selection table are separate from the medium-specific operating ranges. Match the selected seal to the fluid; a gas entry does not specify approval for a particular gas service.

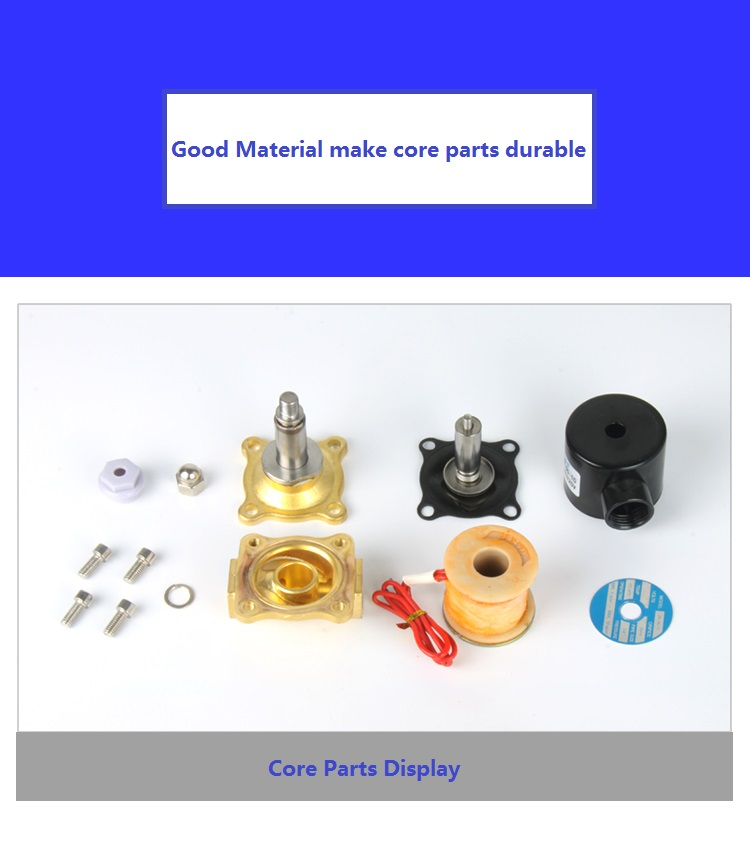

Disassembled brass solenoid valve showing body, diaphragm, stem, coil and retaining parts
Brass valve construction with diaphragm, coil assembly and retaining components.

Ordering options

Code elementSelection
Series2W brass solenoid valve
Orifice code015: 1.2mm; 020: 2mm; 025: 2.5mm; 040: 4mm; 160: 16mm; 200: 20mm; 250: 25mm; 350: 35mm; 400: 40mm; 500: 50mm
Port code06: 1/8″; 08: 1/4″; 10: 3/8″; 15: 1/2″; 20: 3/4″; 25: 1″; 35: 1-1/4″; 40: 1-1/2″; 50: 2″
Rest-state optionNC: normally closed; NO: normally open
DC coilDC12V or DC24V
AC coil, 50/60HzAC24V, AC36V, AC110V, AC220V or AC380V

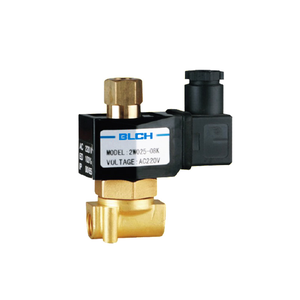

Electrical connection or coil optionBlank: lead-wire coil; D: connector; N: explosion-proof coil option; E: waterproof coil option

The numerical selection and dimension tables describe the normally closed models listed by name. Additional orifice codes and the normally open option are separate ordering selections. The N and E options require selection of the corresponding coil; no protection classification is specified here.

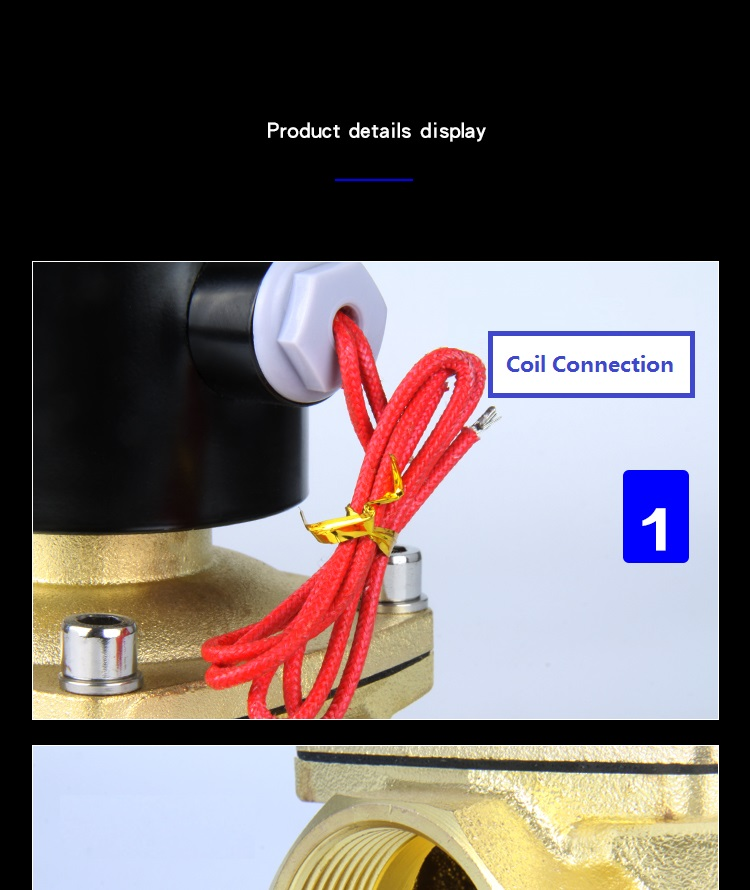

Lead wires exiting the solenoid coil through a cable gland
Lead-wire coil connection on a brass valve assembly.

Installation dimensions

A, B, C and D are in millimeters; K is the PT connection size.

ModelABCDK, PT
2W025-066630.37540.51/8″
2W025-081/4″
2W040-107432.285.552.53/8″
2W160-15101.557117691/2″
2W200-20107123.5733/4″
2W250-25111.573.5134.5991″
2W350-35142951721231-1/4″
2W400-401-1/2″
2W500-501721232091682″

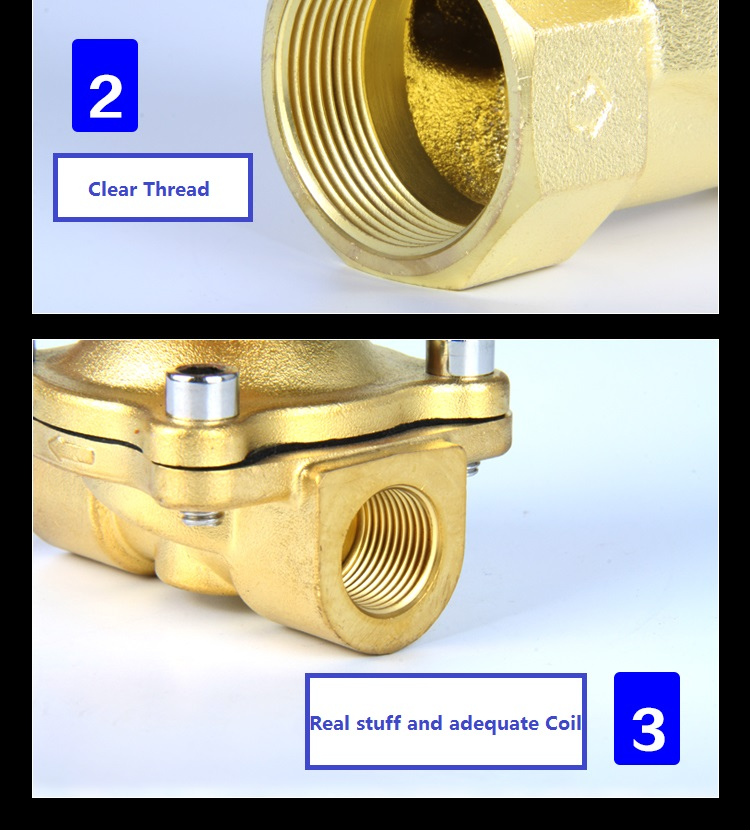

Brass valve threaded port and bolted cover details
Threaded port and bolted brass-body construction details.
