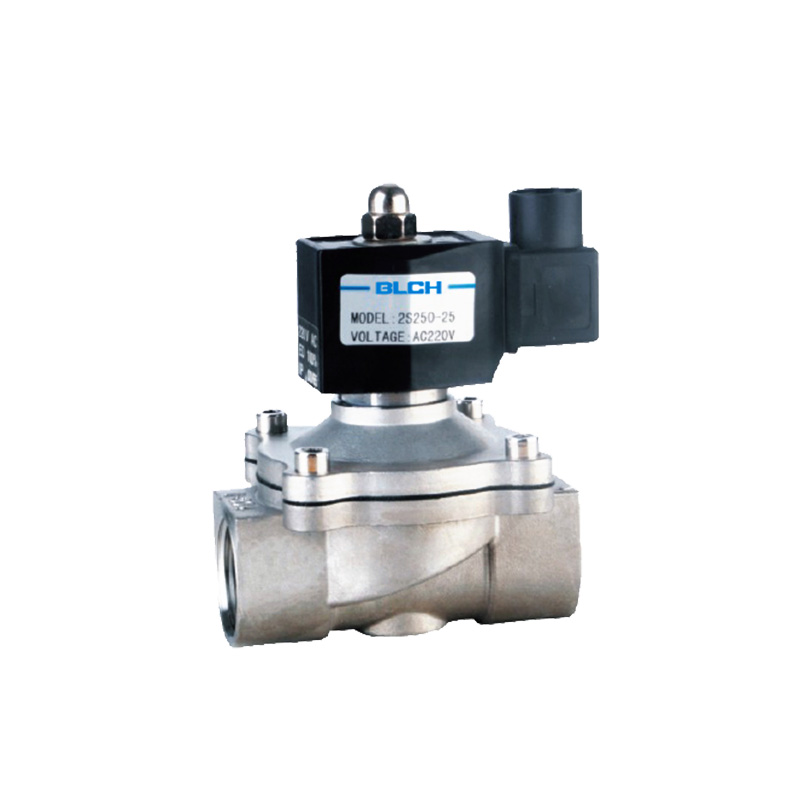

2S Stainless Steel Fluid Solenoid Valves

Series Part Number

Part Number: 2S 025 - 08 - AC110V - D
Explanation:

Series

2S - Stainless-steel-body, normally closed fluid solenoid valve

Orifice Diameter

025 - 2.5mm; port 06 or 08
040 - 4mm; port 10
160 - 16mm; port 15
200 - 20mm; port 20
250 - 25mm; port 25
350 - 35mm; port 35
400 - 40mm; port 40
500 - 50mm; port 50

Port Size

06 - 1/8in; orifice 025
08 - 1/4in; orifice 025
10 - 3/8in; orifice 040
15 - 1/2in; orifice 160
20 - 3/4in; orifice 200
25 - 1in; orifice 250
35 - 1-1/4in; orifice 350
40 - 1-1/2in; orifice 400
50 - 2in; orifice 500

Coil Voltage

DC12V - 12V DC
DC24V - 24V DC
AC24V - 24V AC
AC36V - 36V AC
AC110V - 110V AC
AC220V - 220V AC
AC380V - 380V AC

Electrical Connection

Blank - Lead-wire coil; omit the wiring suffix and its preceding hyphen
D - Connector coil
E - Explosion-proof coil option; protection classification is not specified
G - Waterproof coil option; protection classification is not specified

Description

2S stainless steel solenoid valves provide normally closed, two-port fluid control with 1/8″ to 2″ connections. The selection below covers nine models with 2.5mm to 50mm orifices. Match the coil supply, seal option and medium-specific pressure range to the application.

Model and flow selection

ModelOrificeCvPortFluid viscosityMaximum pressure limit
2S025-062.5mm0.231/8″Below 20cSt10kgf/cm²
2S025-081/4″
2S040-104mm0.63/8″
2S160-1516mm4.81/2″Below 50cSt10.5kgf/cm²
2S200-2020mm7.63/4″
2S250-2525mm121″
2S350-3535mm241-1/4″
2S400-4040mm291-1/2″
2S500-5050mm482″

Operating conditions

ParameterListed base models
ActuationDirect acting
ConfigurationTwo ports, two positions; normally closed
General operating pressure range0-7kgf/cm², subject to the medium limits below
Water0-5kgf/cm²
Air0-7kgf/cm²
Oil0-5kgf/cm²
Gas0-7kgf/cm²
Working temperature5-80°C
Voltage tolerance±10%
BodyStainless steel
Seal optionsNBR, EPDM or VITON

The maximum pressure limits are separate from normal operating ranges. Select the seal for the actual fluid and temperature. These 5-80°C models are not specified here for steam service.

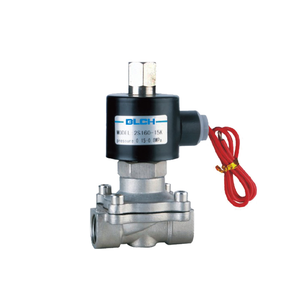

The gallery includes a 2S160-15K lead-wire configuration marked 0.15-0.8MPa. Its K suffix and marked pressure identify a distinct configuration; the base-model ratings above do not establish its medium-specific limits.

Order code and coil options

ElementSelection
Series2S stainless steel two-position, two-port valve
Orifice code015: 1.2mm; 020: 2mm; 025: 2.5mm; 040: 4mm; 160: 16mm; 200: 20mm; 250: 25mm; 350: 35mm; 400: 40mm; 500: 50mm
Port code06: 1/8″; 08: 1/4″; 10: 3/8″; 15: 1/2″; 20: 3/4″; 25: 1″; 35: 1-1/4″; 40: 1-1/2″; 50: 2″
DC coilDC12V or DC24V
AC coil, 50/60HzAC24V, AC36V, AC110V, AC220V or AC380V
Electrical connection or coil optionBlank: lead wires; D: connector; E: explosion-proof coil option; G: waterproof coil option

Specify the complete model, voltage and coil connection. Additional orifice codes are ordering options beyond the nine models tabulated here. No protection classification is specified for the E or G coil option.

Installation dimensions

A, B, C and D are in millimeters; K is the PT connection size. Match the complete model when selecting the required installation envelope.

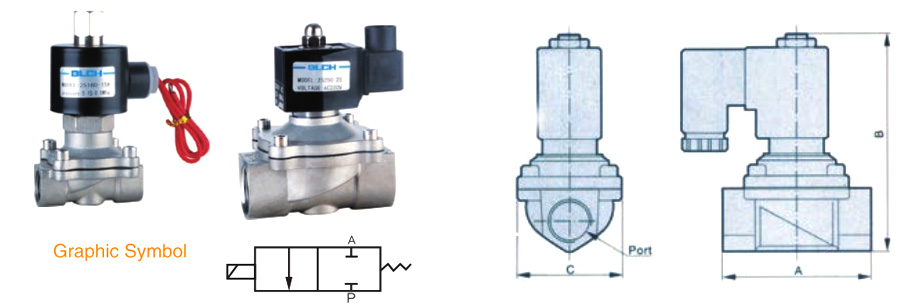

2S stainless steel solenoid valve coil configurations, normally closed symbol and installation outline
2S lead-wire and connector configurations, normally closed symbol and outline views.
ModelABCDK, PT
2S025-066630.37540.51/8″
2S025-081/4″
2S040-107432.285.552.53/8″
2S160-15101.557117691/2″
2S200-20107123.5733/4″
2S250-25111.573.5134.5991″
2S350-35142951721231-1/4″
2S400-401-1/2″
2S500-501721232091682″
