2L Normally Closed Solenoid Valves for Steam, Water and Air

Series Part Number

Part Number: 2L 170 - 15 - AC110V - F
Explanation:

Series

2L - Normally closed, two-port solenoid valve for steam, water and air

Orifice Diameter

170 - 17mm; port 10, 15 or 20
200 - 22mm; port 25
300 - 30mm; port 35 or 40
500 - 50mm; port 50

Port Size

10 - 3/8in; orifice code 170
15 - 1/2in; orifice code 170
20 - 3/4in; orifice code 170
25 - 1in; orifice code 200
35 - 1-1/4in; orifice code 300
40 - 1-1/2in; orifice code 300
50 - 2in; orifice code 500

Coil Voltage

DC12V - 12V DC
DC24V - 24V DC
AC24V - 24V AC
AC36V - 36V AC
AC110V - 110V AC
AC220V - 220V AC
AC380V - 380V AC

Electrical Connection

Blank - Lead-wire connection; omit this suffix and its preceding hyphen
F - Connector connection

Description

2L solenoid valves provide normally closed, two-port control for air, water and steam. The brass body and PTFE sealing system are offered with 17mm, 22mm, 30mm or 50mm flow openings. Select the valve by connection size, Cv and coil voltage.

Model and flow selection

ModelOrificeCvPort size
2L170-1017mm4.83/8″
2L170-151/2″
2L170-203/4″
2L200-2522mm121″
2L300-3530mm201-1/4″
2L300-401-1/2″
2L500-5050mm482″

Operating specifications

Parameter2L series
MediaAir, water and steam
ActuationPilot operated
Valve functionTwo positions, two ports; normally closed
Fluid viscosityBelow 20cSt
General operating pressure range1-15kgf/cm²
Maximum pressure limit22.5kgf/cm²; separate from the normal switching range
Working temperature-5-180°C
Voltage tolerance±10% of the selected nominal voltage
BodyBrass
SealPTFE

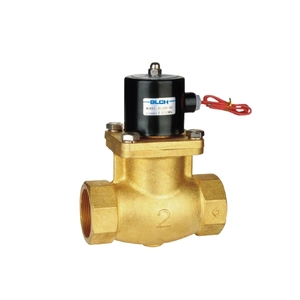

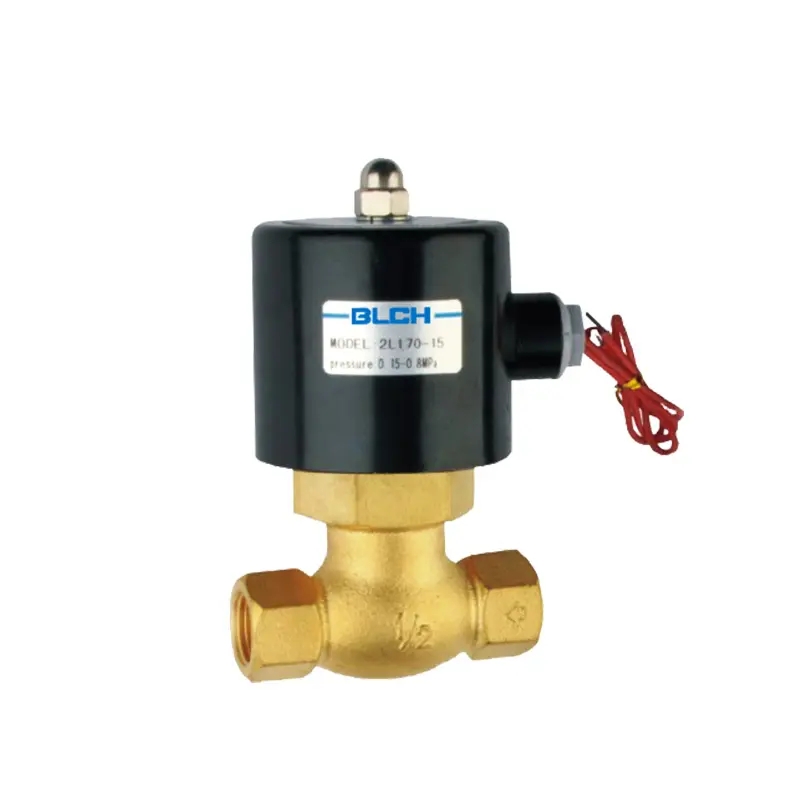

The illustrated 2L170-15 and 2L500-50 configurations are marked 0.15-0.8MPa. Use this narrower operating range for those marked configurations; the general family limits do not override an individual valve's nameplate.

Ordering options

Code elementSelection
2LSteam-service two-position, two-port solenoid valve
Flow code170: 17mm; 200: 22mm; 300: 30mm; 500: 50mm
Port code10: 3/8″; 15: 1/2″; 20: 3/4″; 25: 1″; 35: 1-1/4″; 40: 1-1/2″; 50: 2″
DC coilDC12V or DC24V
AC coil, 50/60HzAC24V, AC36V, AC110V, AC220V or AC380V
Electrical connectionBlank: lead wires; F: connector

Specify the complete valve model, voltage and electrical connection, such as 2L170-10 with an AC110V coil and F connector.

Outline dimensions

A, B, C and D are in millimeters. K identifies the PT connection. The two 30mm-orifice models have different overall C dimensions.

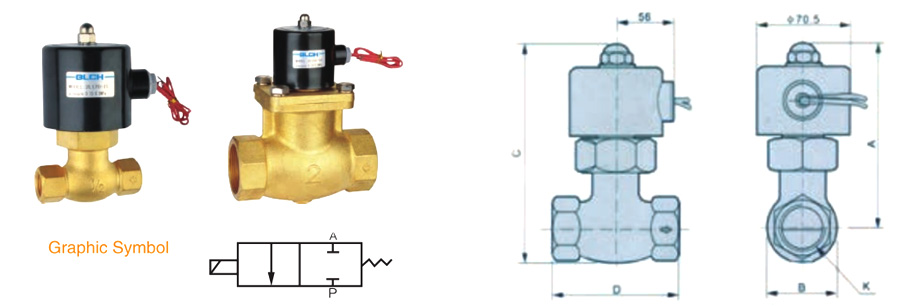

2L valve configurations, normally closed symbol and installation dimensions A through D and K
2L brass valve configurations, normally closed flow symbol and outline references.
ModelABCDK, PT
2L170-1012542146823/8″
2L170-151/2″
2L170-203/4″
2L200-251365216290.51″
2L300-35148741851111-1/4″
2L300-401831-1/2″
2L500-5017694.52231632″
