25mm Piezo Switch | Langir Sealed Touch Switch

Series Part Number

Part Number:	PZ	25	B	RZ	F	N	1	NO	L	G
Explanation:	Series PZ - Piezo switch	Switch Size 22 - 22mm 25 - 25mm 30 - 30mm	Colors / Materials A0 - Natural anodized aluminum A1 - Blue anodized aluminum A2 - Black anodized aluminum A3 - Green anodized aluminum A5 - Gold anodized aluminum A6 - Red anodized aluminum B - Stainless steel 316L	Operator R2 - Flat operator, height 3.0mm (.118in); not available with illuminated ring R6 - Operator with finger location, height 3.0mm (.118in); not available with illuminated ring RY - With chamfer, operator height 4.5mm (.177in); available with thin or large illuminated ring only RZ - Flat operator, height 4.5mm (.177in); available with thin or large illuminated ring only Blank - Flat operator, height 1.30mm The operator can be customized.	Terminals F - Flying leads C - Cable The terminals can be customized.	Type of Illumination / Voltage Blank - Non-illuminated A - 13.5 large ring 5VDC N - 13.5 large ring 12VDC K - 13.5 large ring 24VDC P - 16.5 thin ring 5VDC J - 16.5 thin ring 12VDC Y - 16.5 thin ring 24VDC D - Standard dot 5VDC E - Standard dot 12VDC S - Standard dot 24VDC	Ratings 1 - 200mA 24VAC/DC 2 - 1A 24VAC/DC	Switch Status NO - Normally open NC - Normally closed K - NO prolonged pulse	Switch Function M - Momentary L - Latching	LED Colors Blank - Non-illuminated B - Blue G - Green R - Red Y - Yellow W - White RG - Red/green RY - Red/yellow RB - Red/blue RW - Red/white GB - Green/blue GY - Green/yellow GW - Green/white BY - Blue/yellow BW - Blue/white YW - Yellow/white TA - Red/green/blue TB - Red/green/yellow TD - Red/green/white TE - Red/blue/yellow TF - Red/blue/white TG - Red/yellow/white TH - Green/blue/yellow TI - Green/blue/white TJ - Green/yellow/white TK - Blue/yellow/white

Description

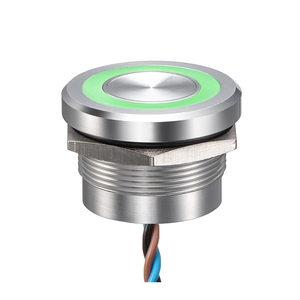

The 25mm Piezo Switch combines a large metal actuator with sealed solid-state switching. It is designed for applications where reliability, cleanability, and long operating life are more important than mechanical switch feel.

Key Features

25mm bushing size with a broad touch surface
Momentary or latching function options
SPST N.O. or SPST N.C. contact arrangement
More than 50 million operating cycles
IP69K sealing at the front and back
Aluminium 6061 T651 or stainless steel 316L material options
Non-illuminated, dot illuminated, or ring illuminated options

Technical Data

Voltage	1-24V AC/DC
Switching current	0.2A / 1A
Pulse duration	125-300ms
Rated breaking capacity	1W
Actuating force	3-5N
Actuating travel	0.002mm
Connection	Wires
Operating temperature	-40°C to 75°C standard
IP protection	IP69K front and back

How It Works

The piezo element generates an electrical charge when the actuator receives mechanical stress. This creates a reliable switching signal without conventional moving contacts, reducing wear in repetitive-use applications.

Documents

Piezo Switch Catalog
