25mm Capacitive Switch | Langir Touch Panel Switch

Series Part Number

Part Number:	CP	25	A0	RY	F	1	P	Z	NO	M	B	S
Explanation:	Series CP - Capacitive switch	Switch Size 16 - 16mm 19 - 19mm 22 - 22mm 25 - 25mm	Colours / Materials A0 - Natural anodized aluminum A1 - Blue anodized aluminum A2 - Black anodized aluminum A3 - Green anodized aluminum A5 - Gold anodized aluminum A6 - Red anodized aluminum B - Stainless steel 316L	Operator R1 - Flat, operator height 4.5mm; available with illuminated ring on 16mm only R2 - Flat, operator height 3.00mm; available with illuminated ring on 19mm only RY - With chamfer, operator height 4.5mm (.177in); available with thin or large illuminated ring on 22mm and 25mm only RZ - Flat, operator height 4.5mm (.177in); available with thin or large illuminated ring on 22mm and 25mm only Blank - Chamfer, operator height: 16mm=2.00mm; 19mm=3.00mm The operator can be customized.	Terminals F - Flying leads X - Cable C - Connector The terminals can be customized.	Ratings 1 - 200mA 24VAC/DC 2 - 1A 24VAC/DC The ratings can be customized.	Type of Illumination / Voltage Blank - Non-illuminated A - 13.5 large ring, 5VDC N - 13.5 large ring, 12VDC K - 13.5 large ring, 24VDC P - 16.5 thin ring, 5VDC J - 16.5 thin ring, 12VDC Y - 16.5 thin ring, 24VDC P, J and Y are for 22mm and 25mm diameters only.	Output Blank - NPN Z - PNP	Switch Status NO - Normally open NC - Normally closed	Switch Function M - Momentary L - Latching	LED Colours Blank - Non-illuminated B - Blue G - Green R - Red Y - Yellow W - White RG - Red/green RY - Red/yellow RB - Red/blue RW - Red/white GB - Green/blue GY - Green/yellow GW - Green/white BY - Blue/yellow BW - Blue/white YW - Yellow/white	LED Function S - Independent C - Output indicator

Description

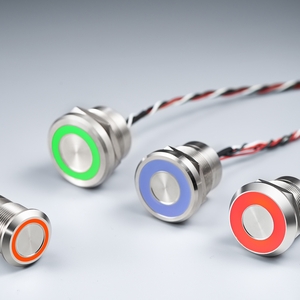

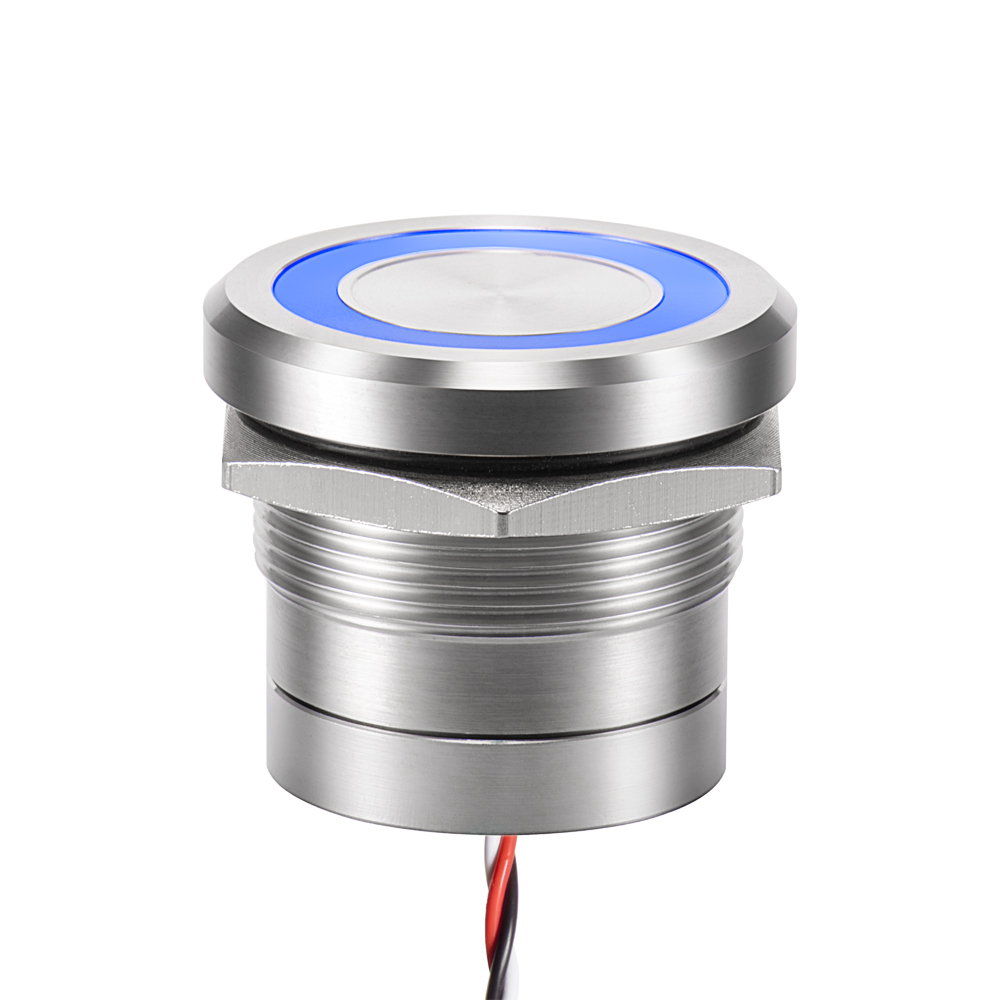

The 25mm Capacitive Switch offers a larger touch surface for equipment that needs a clear, durable, and low-effort control interface. It is suitable for repetitive operation because the switch responds to touch without mechanical travel.

Main Features

25mm bushing size with a larger actuator area
Capacitive touch activation with 0N operating force
Momentary or latching versions
NPN or PNP output type
Auto-calibration with adjustable sensitivity
50 million cycle life expectancy
Sealed to IP68/IP69K with IK10 impact resistance

Specifications

Supply voltage	5-24VDC
Max. current / voltage rating	200mA, 24VDC
Operating force	0N
Operating temperature	-20°C to +65°C
Power consumption	7mA non-illuminated, 25mA illuminated
LED output indication	One-LED or two-LED status indication depending on configuration
Case materials	Stainless steel, anodized aluminium, and plastic options

Wiring Diagrams

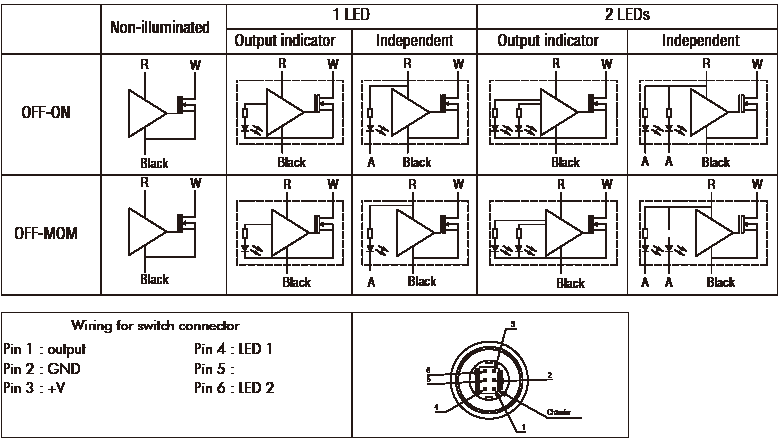

25mm capacitive switch wiring diagrams

Documents

Capacitive Switch Catalog
