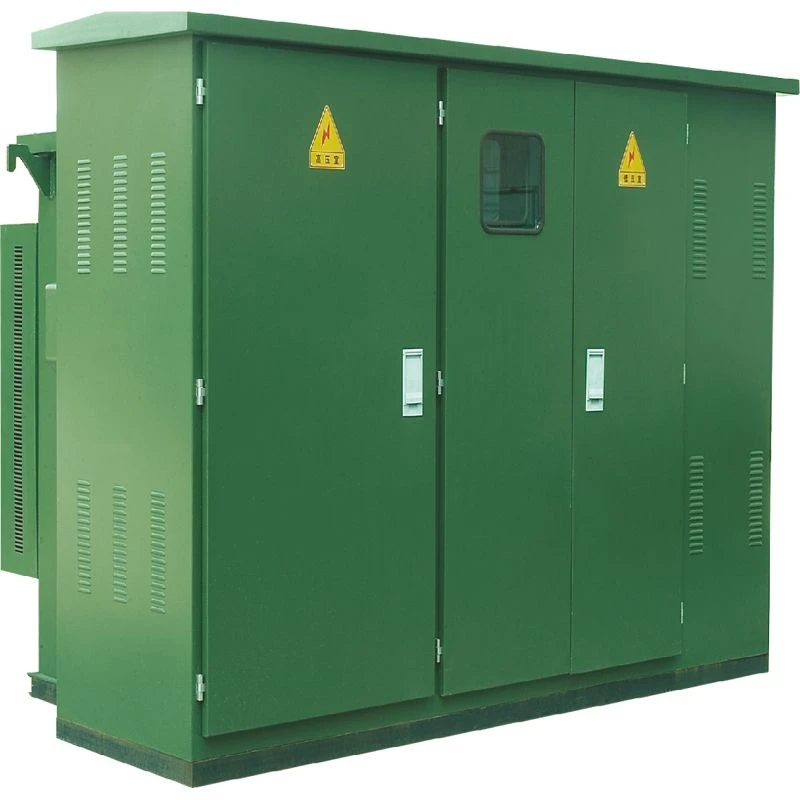

2500 kVA Pad-Mounted Distribution Transformer is prepared for ground-level utility and industrial distribution. It covers 12.47kV / 13.2kV / 24.9kV / 34.5kV input networks and 480Y/277V or 208Y/120V output distribution. It uses ONAN / KNAN (Natural Ester) cooling or thermal design data where specified. This series description presents the application, construction, protection, and specification details in finished product copy.
The ANSI Limit of Compartmental Distribution
For ground-level utility and industrial distribution, the ANSI Limit of Compartmental Distribution is treated as a practical design and selection point rather than generic catalog wording.
The 2500 kVA Pad Mounted Transformer represents the maximum power density achievable within the standard commercial distribution footprint. Delivering over 3000 Amps at 480V, this unit serves as the primary energy node for large-scale infrastructure, pushing the physics of passive cooling to the edge of the enclosure limits.
This unit is engineered to cover the full spectrum of ANSI specifications. Depending on your safety protocols, the design uses the HV compartment to meet ansi c57 12.22 for Live-Front applications (typically for industrial grids requiring visible air gaps and arresters) or ansi c57 12.26 for Dead-Front applications (using separable insulated connectors for maximum public safety). By adhering to the strict dimensional constraints of these standards, we guarantee that this massive 2.5 MVA unit maintains Dimensional Interchangeability, dropping onto existing concrete pads without requiring expensive masonry modifications.
Redefining Residential: The District Feeder
For ground-level utility and industrial distribution, redefining Residential: The District Feeder is treated as a practical design and selection point rather than generic catalog wording.
While the term pad mounted residential transformer usually implies small 50 kVA cans, the 2500 kVA unit serves the "Residential District" level.
High-Density Housing: In modern urban planning, this unit functions as the centralized power plant for high-rise condominium towers (30+ stories) or sprawling gated communities.
Underground Backbone: Instead of feeding a single house, it energizes the main 480V bus duct that runs vertically through a residential tower, or feeds a localized underground loop that distributes power to 20-30 smaller step-down transformers in a large subdivision.
Heat Management and Safety
Heat Management and Safety summarizes the protection, safety, or standard-related details that matter during engineering selection.
At 2500 kVA, the heat rejection requirement is significant.
Green label on transformer tank indicating use of biodegradable.
Natural ester fluid.

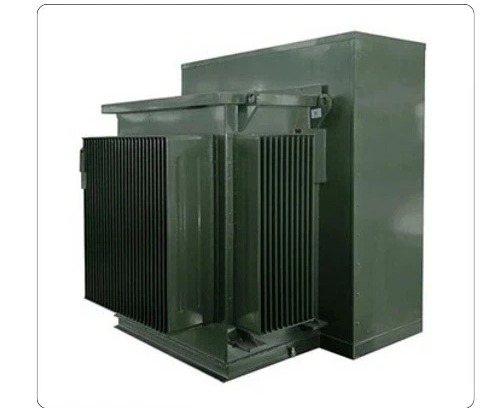

Corrugated Cooling: The tank walls utilize deep-folded steel corrugations (fins) rather than flat steel. This increases the surface area by over 300%, allowing the unit to maintain a standard 65°C Temperature Rise solely through natural convection (ONAN), without the noise or maintenance liability of external cooling fans.
Fluid Safety: Given the large volume of oil (approx. 500-600 gallons), we strongly recommend configuring this unit with Natural Ester Fluid. This high-flashpoint fluid mitigates the fire risk inherent in placing such a large energy input near residential structures.
Technical Data Sheet
Technical Data Sheet provides selection data that helps compare ratings, voltage classes, and installation requirements.
Typical Application Context connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

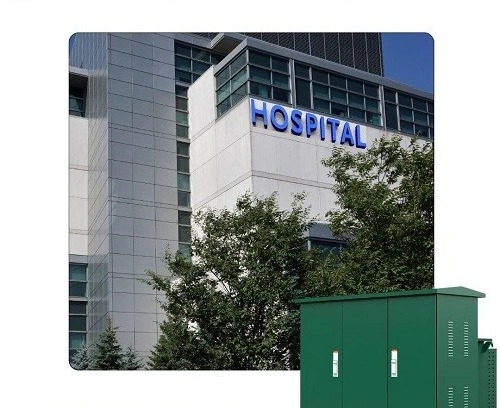

2500 kVA pad mounted transformer serving as the main power.
Supply for a large hospital campus.
Crypto Mining Farms: High-density power deployment where multiple 2.5 MVA units are lined up to power containerized mining rigs.
Skyscraper Utilities: Sitting in the basement or podium level of a residential skyscraper, providing the main incomer service.
Hospital Main Feed: Acting as the N+1 redundant supply for a hospital's central energy plant.
Electrical and Mechanical Data
The table data is organized for quick rating comparison, project specification, and transformer selection.
Green label on transformer tank indicating use of biodegradable natural ester fluid.Corrugated cooling fins on the transformer tank wall for heat dissipation.2500 kVA pad mounted transformer serving as the main power supply for a large hospital campus.
