2500 kVA Oil-Immersed Distribution Transformer

2500 kVA Oil-Immersed Distribution Transformer is specified for 2500 kVA (2.5 MVA) oil-immersed distribution service. It steps 33 kV (Sub-transmission) networks to 400V / 415V / 690V loads. It uses ONAN (Standard) / ONAF (Optional) cooling. Engineering details address the Apex of Low Voltage Distribution, construction, application context, and electrical data for project selection.

The Apex of Low Voltage Distribution

For this 2500 kVA rating, the apex of low voltage distribution affects how the transformer is selected, protected, and operated in the field.

• It represents the practical upper limit for standard 400V distribution systems.
• Delivering a colossal continuous current of approximately 3608 Amps, this rating is the ultimate power solution for mega-scale industrial zones and data center main feeds.
• Beyond this capacity, engineers typically switch to higher secondary voltages (e.g., 690V) to manage current levels.
• As a high-specification 33kv transformer stepping down to 400V, this rating bridges the gap between sub-transmission networks and end-user consumption.
• It is engineered to handle the dual challenges of massive low-voltage current output and high-voltage dielectric stress.

33kV Insulation Engineering

The 33kv insulation engineering details below highlight design choices that matter during continuous distribution service.

• Operating at 33,000 Volts requires a completely different insulation strategy compared to standard 11kV units.
• Impulse withstand (BIL): The HV windings of this 33kv transformer are designed to withstand lightning impulses of up to 170 kV (Basic Impulse Level).
• This involves using high-grade crepe paper with graded insulation thickness and specialized corner rings to prevent electrical breakdown at the winding edges.
• Tap changer robustness: The off-circuit tap changer is upgraded to a heavy-duty rotary type capable of handling the higher potential difference between taps, ensuring safe voltage regulation even in unstable 33kV grids.

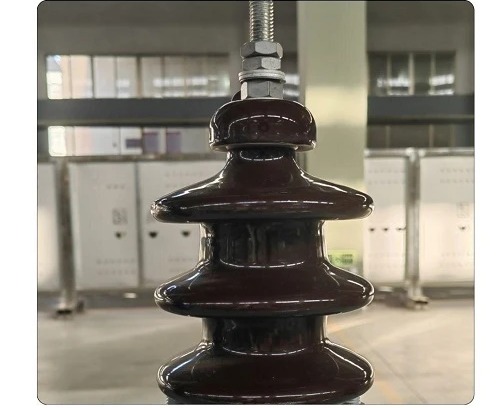

• High voltage 33kV porcelain bushings on 2500 kVA transformer for 170kV BIL insulation withstand.

Managing the 3600A Current Limit

These managing the 3600A current limit points connect the electrical rating with grid conditions, downstream equipment, and maintenance expectations.

• The defining characteristic of the 2500 kVA unit is its low-voltage output.
• Handling 3608 Amps requires structural innovation:.
• LV bushing arrangement: Standard porcelain bushings are insufficient.
• The design uses heavy-duty monoblock resin bushings or solid copper palms integrated directly into a busbar throat.
• The tank and active-part design minimizes contact resistance, which is critical because even a micro-ohm of resistance at 3600A generates significant heat.

Typical Application Context

Application guidance links the transformer rating with the substations, industrial loads, and site conditions where it is normally used.

• Grid Substations: Stepping down from a 33kV sub-transmission ring directly to 400V for local distribution.
• Heavy Metallurgy: Powering electric arc furnaces or rolling mills where load fluctuations are extreme.
• Hyperscale Data Centers: Serving as the main block transformer, often paired in an N+1 configuration.

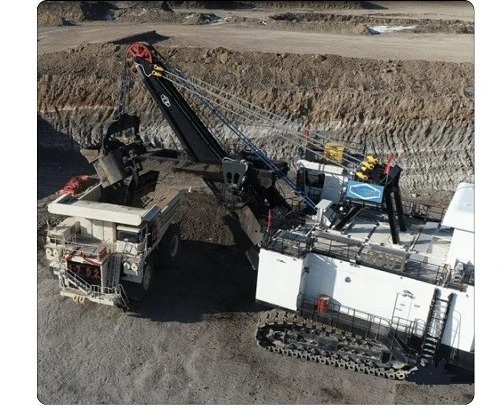

• Mining Operations: Due to the 33kV input, this rating is ideal for mines where power is transmitted over long distances at higher voltages to reduce line losses before being stepped down at the load center.

Electrical and Mechanical Data

The electrical data summarizes the main values needed for project comparison and project comparison.
